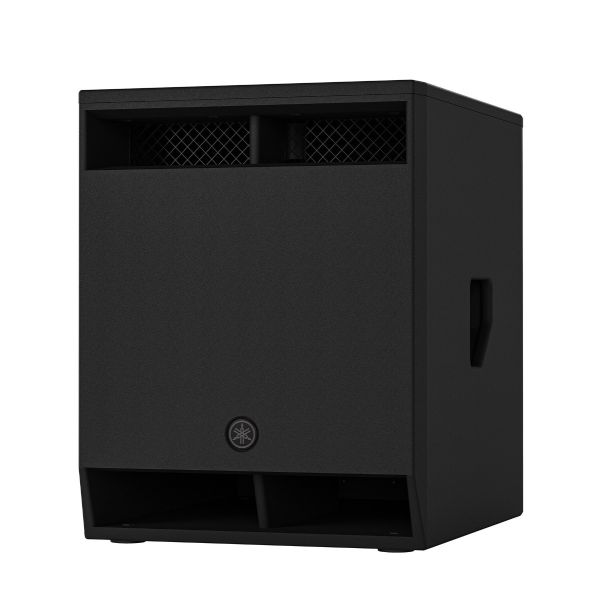

Yamaha DXS15 MK3 15" Active Subwoofer
The Yamaha DXS15 MK3 delivers powerful, deep bass with a 15-inch driver and 2500W Class-D amplifier. Designed for DJs and live sound, it provides strong low-end performance for medium to large venues. Ideal for users needing more output and depth than a compact 12-inch subwoofer.
Powerful, High-Output Subwoofer for Deep, Impactful Bass
A powerful 15-inch active subwoofer delivering deep bass, high output, and flexible DSP control for demanding sound environments.
The Yamaha DXS15 MK3 Active Subwoofer delivers powerful, deep bass performance for demanding live sound and DJ applications. Featuring a 15-inch long-excursion driver and a high-efficiency 2500W Class-D amplifier, it provides greater low-end depth and output than a 12-inch model while remaining portable enough for regular transport.
With a maximum output of around 133 dB SPL and an extended low-frequency range down to approximately 35 Hz, it’s designed for medium to large venues where stronger bass presence is essential.
Who This Subwoofer Is Best For
The Yamaha DXS15 MK3 Active Subwoofer is ideal for users who need more low-end power than a 12” subwoofer, without the size and weight of an 18” model.
It’s particularly suited to:
Mobile DJs playing bass-heavy music
Medium to large venues
Live bands and performance setups
Event production and PA hire
Users wanting a balance of power and portability
If you need a subwoofer that delivers strong, impactful bass while remaining practical for transport, this is a powerful all-round choice.
Best used as part of a full PA system, it adds depth and low-end weight to music while maintaining clarity across the overall mix.
Compared to 12” models, the DXS15 MK3 provides greater output and deeper bass, while still being more manageable and portable than larger 18” subwoofers.
High-Durability 15-Inch Driver for Powerful Bass
The Yamaha DXS15 MK3 Active Subwoofer features a high-output 15-inch driver with a durable 3-inch voice coil, designed for consistent low-frequency performance in demanding environments.
Optimised Bandpass Design for Clean, Controlled Low-End
A carefully engineered bandpass enclosure reduces unwanted noise and improves efficiency, delivering deeper and more controlled bass even at higher output levels.
Durable Cabinet Built for Regular Use
A rugged plywood enclosure with a protective coating ensures durability during transport and long-term use, while maintaining consistent acoustic performance.
Simple Control with Clear LCD Interface
The Yamaha DXS15 MK3 features a rear-mounted LCD panel with an intuitive encoder for quick, easy control of key settings. Users can adjust EQ, delay, routing, and presets, with up to eight user configurations stored. Factory presets help optimise performance when paired with DXR MK3 speakers.
.
Advanced DSP for Sophisticated Signal Processing
Featuring a 96kHz internal DSP processor, the DXSmk3 series delivers high output performance with exceptional clarity and low latency. It also features an “XTENDED LF” mode for extended low-frequency reproduction.
High-Power 2500W Class-D Amplification
A highly efficient 2500W Class-D amplifier provides strong, reliable bass output with excellent headroom, supported by a stable switching power supply.
Flexible Bass Control with D-XSUB Processing
Built-in DSP allows you to tailor low-frequency response:
NORMAL mode for balanced bass
XTENDED LF mode for deeper extension
Cardioid Mode for Controlled Stage Sound
Cardioid mode helps reduce unwanted bass behind the subwoofer, improving stage clarity and reducing low-frequency build-up.
Wireless Control with the D-Remote App
Control your system via iOS and Android devices, adjusting level, EQ, delay, and monitoring performance in real time.
Dual Pole Mount for Flexible Setup
Supports both standard 35mm poles and M20 threaded mounts for secure and flexible speaker placement.
Optional Covers for Protection and Storage
Optional protective covers help guard against dust, dirt, and scratches during transport and storage.
Optional Wheels and Handles for Easier Transport
Optional caster wheels and ergonomic handles make moving and positioning the subwoofer easier in mobile setups.
Mobile DJing
Band Performance
Band Performance Mid-size
Band Performance with Cardioid Mode
Is a 15-inch subwoofer enough for DJ use?
Yes, the Yamaha DXS15 MK3 Active Subwoofer provides strong bass output suitable for most DJ applications, including medium to large events.
Is it better than a 12-inch subwoofer?
A 15” subwoofer delivers more output and deeper bass, making it better suited to larger venues and bass-heavy music.
Do I need two subwoofers?
Using two subwoofers improves coverage and output, especially for larger events and professional setups.
Does it work with Yamaha DXR speakers?
Yes, it pairs perfectly with the Yamaha DXR MK3 Series, providing a well-balanced PA system.
Do You Need One or Two Subwoofers?
One subwoofer - Ideal for small to medium venues and portable setups
Two subwoofers - Increased output and headroom
More even bass coverage
Better performance for larger events
Two Yamaha DXS15 MK3 Active Subwoofer units provide a fuller, more balanced low-end system.
Which Subwoofer Size Do You Need? (12" vs 15" vs 18")
12-Inch Subwoofer
- Compact and easy to transport
- Tight, controlled bass
- Best for smaller venues
15-Inch Subwoofer
- More output and deeper bass
- Still portable
- Suitable for most professional use
18-Inch Subwoofer
- Maximum output and deep bass
- Best for large venues and outdoor events
- Less portable
The Yamaha DXS15 MK3 Active Subwoofer is the best all-round option for DJs and live sound.
2500W active subwoofer with 133 dB SPL
15” high-performance woofer with 3” voice coil
Advanced DSP with D-XSUB bass processing
XTENDED LF mode for deeper bass response
Optimised bandpass cabinet design
Cardioid mode for controlled bass direction
Bluetooth control via D-Remote app
Durable plywood cabinet for professional use
Dual pole mount compatibility (M20 & 35mm)
DXS15 MK3 – Specifications
General
Speaker Type: Powered subwoofer (band-pass)
Frequency Range (-10dB): 35 Hz – 140 Hz
Max Output Level: 133 dB SPL (peak)
Components
LF: 15" cone, 3" voice coil
Amplifier
Class: Class-D
Peak Power: 2500 W
RMS Power: 1250 W
Power & Processing
Cooling: Fan (5 speeds)
Power Consumption: 130 W (1/8 power), 40 W (idle)
Power Requirements: 100–240 V, 50/60 Hz
Converters: 32-bit / 96 kHz
DSP: Same as DXS18 MK3
Connectivity
Same input/output configuration as DXS18 MK3
Bluetooth: v5.0
App: D-Remote
Cabinet & Build
Material: Plywood
Finish: Durable polyurea coating (black)
Handles: Side x2
Pole Mount: 35 mm + M20 threaded
Dimensions & Weight
W: 480 mm
H: 611 mm
D: 614 mm
Weight: 37.0 kg
Options
Cover: SPCVR-DXS153
Castor Kit: SPW-1
