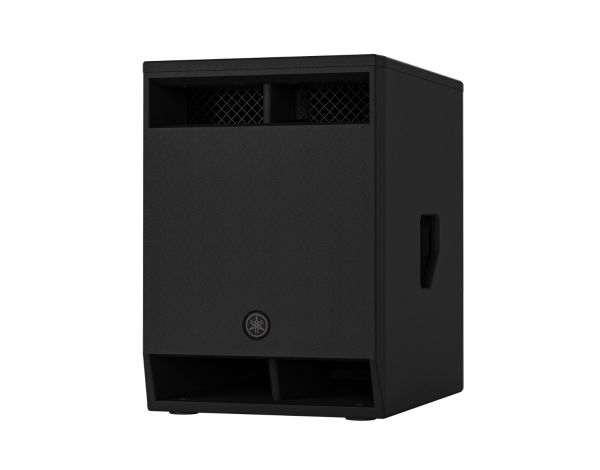

Yamaha DXS12 MK3 12" Active Subwoofer
Add deep, powerful bass to your PA system with the Yamaha DXS12 MK3. This 12-inch active subwoofer delivers 2500W of controlled low-end performance in a compact design. Ideal for DJs, live sound, and events, it enhances clarity and impact when paired with full-range speakers in any professional audio setup.
Powerful, Compact Subwoofer for Deep, Controlled Bass
A compact yet powerful 12-inch subwoofer delivering 2500W output, deep bass, and advanced DSP control for DJs and live sound.
The Yamaha DXS12 MK3 Active Subwoofer is the most portable model in the DXS MK3 range, designed for users who want to add powerful low-end to their system without adding excessive size or weight.
With a high-efficiency Class-D amplifier and up to 132 dB SPL output, it delivers deep, controlled bass that enhances your overall sound without overwhelming it. Its 12-inch design strikes a balance between performance and portability, making it ideal for mobile setups and smaller venues.
For larger events or bass-heavy applications, pairing with an additional subwoofer or choosing a larger model may be more suitable.
Who This Subwoofer Is Best For
The Yamaha DXS12 MK3 Active Subwoofer is ideal for users who want to expand their system with deeper bass while keeping their setup compact and easy to manage.
It’s particularly suited to:
Mobile DJs working small to medium-sized events
Users pairing with DXR MK3 tops for a balanced system
Venues that need improved low-end without large subwoofers
Performers and engineers wanting tighter, controlled bass
If you need a subwoofer that’s powerful yet easy to transport, this is a strong all-round choice.
Best used as part of a full PA system, adding depth and impact to music while keeping clarity in the overall mix.
Compared to 15” and 18” models, the DXS12 MK3 offers greater portability while still delivering strong low-end performance.

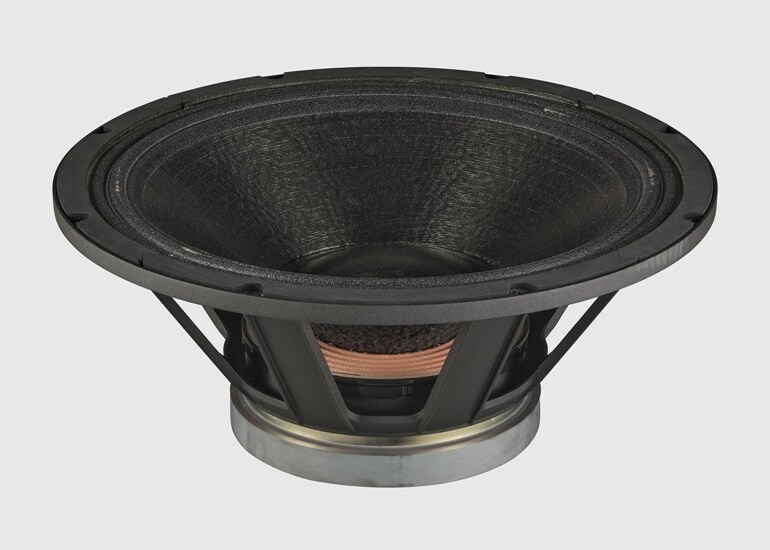

High-Durability Driver for Reliable Low-End Performance
The DXS MK3 range features proprietary long-excursion drivers developed by Yamaha, specifically engineered for subwoofer applications.
The 12-inch model uses a robust 3-inch voice coil, designed to handle demanding low-frequency output while maintaining consistent performance over time. This construction helps ensure durability and reliability, even during extended use at higher volumes.

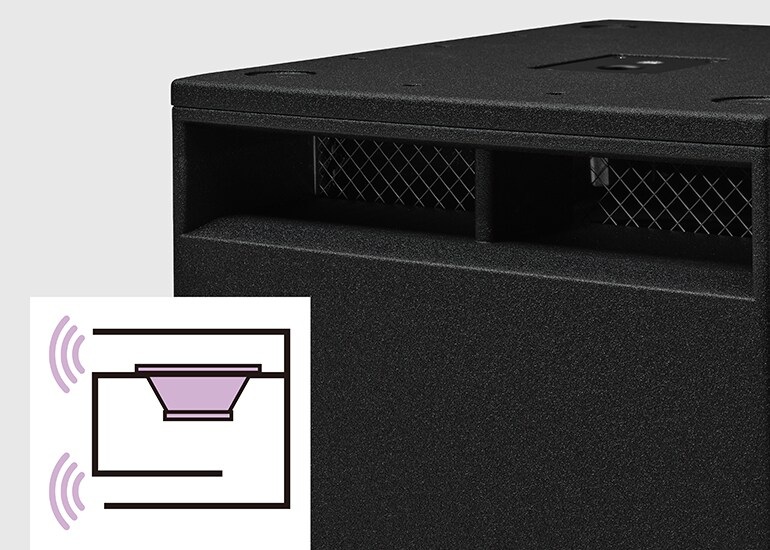

Optimised Bandpass Design for Clean, Powerful Bass
The DXS MK3 range uses a carefully engineered bandpass enclosure to improve low-frequency performance while reducing unwanted noise.
Large-diameter ports and a high-performance grille design help minimise air turbulence and port noise, even at higher output levels. This allows the subwoofer to deliver deep, powerful bass with greater clarity

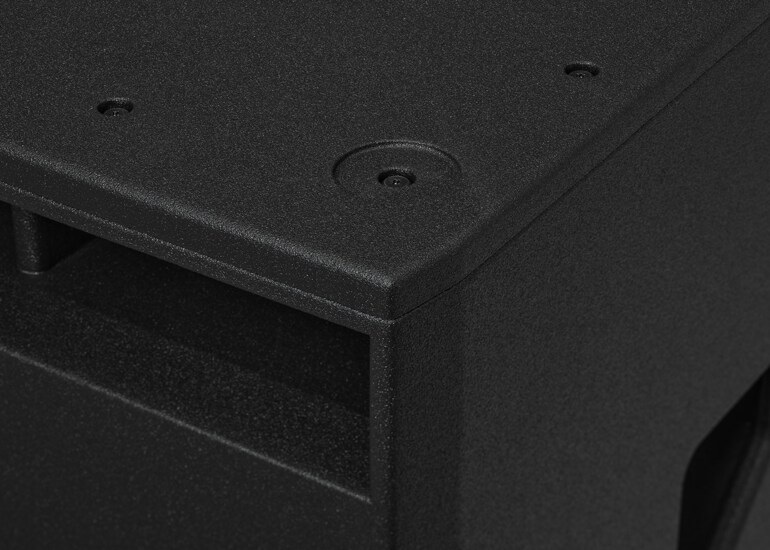

Durable Cabinet Built for Regular Use
The DXS MK3 range features a rugged plywood enclosure designed for both durability and acoustic performance.
A tough polyurea coating helps protect the cabinet from scratches and impacts during transport, setup, and regular use. This makes it well suited to mobile environments where equipment is handled frequently.
The solid construction also supports consistent low-frequency performance, helping maintain a clean and controlled bass response over time.

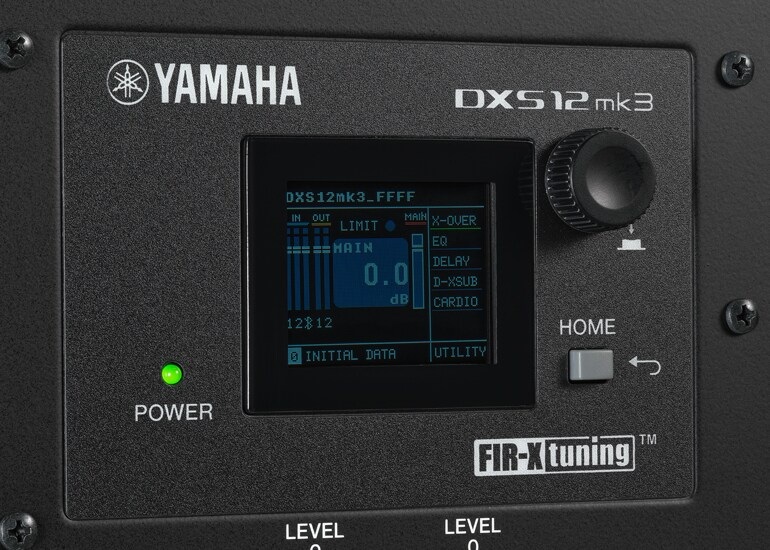

Simple Control with Clear LCD Interface
The DXS MK3 range features a rear-mounted LCD panel, providing easy access to key settings during setup and use.
Users can quickly adjust parameters such as EQ, delay, routing, and preset selection using the intuitive encoder. Up to eight custom presets can be stored, allowing you to save and recall different system configurations as needed.
Factory presets are also included to optimise performance when paired with DXR MK3 series speakers, helping you achieve a balanced and consistent sound with minimal setup time.

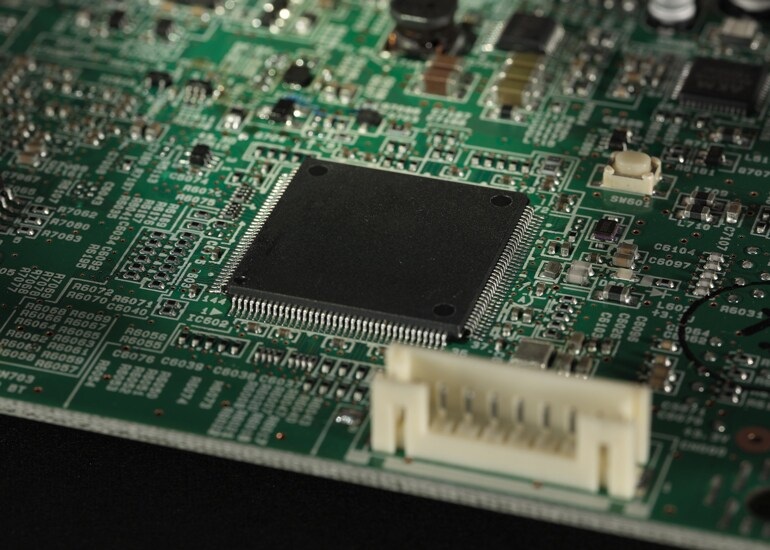

Advanced DSP for Sophisticated Signal Processing
Featuring a 96kHz internal DSP processor, the DXSmk3 series delivers high output performance with exceptional clarity and low latency. It also features an “XTENDED LF” mode for extended low-frequency reproduction.

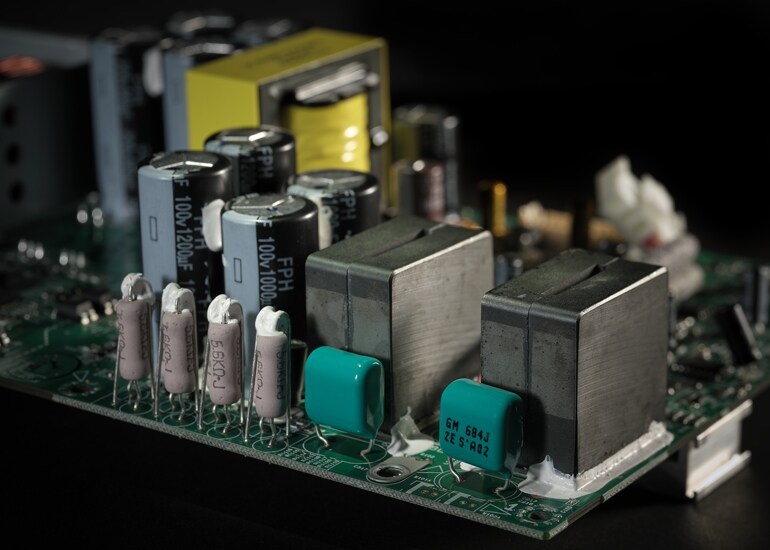

High-Power Amplification with Stable Performance
The DXS MK3 range is powered by a highly efficient 2500W Class-D amplifier, delivering strong and consistent low-frequency output.
A redesigned switching power supply helps ensure stable operation, even during extended use at higher levels. This allows the subwoofer to maintain clean, controlled bass with reliable performance in demanding environments.

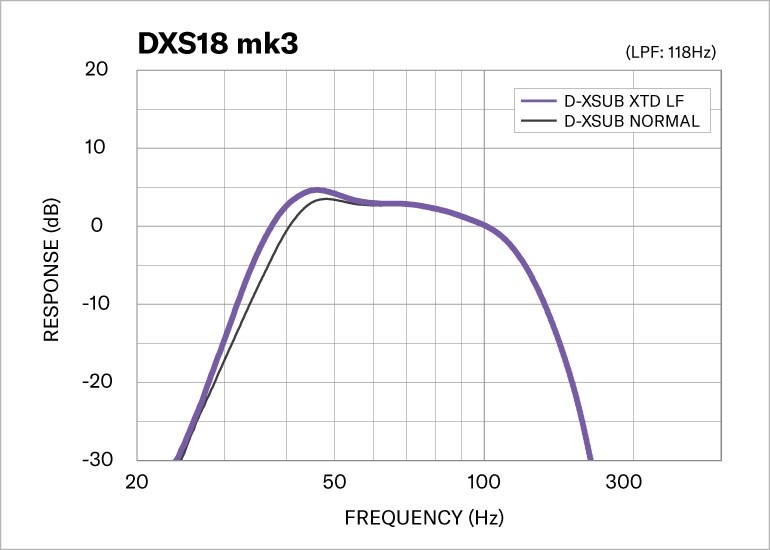

Flexible Bass Control with D-XSUB Processing
The DXS MK3 range includes D-XSUB processing, allowing you to adjust the subwoofer’s low-frequency response to suit different applications.
NORMAL mode provides a well-balanced bass output for general use, while XTENDED LF mode extends the low-end range for applications that benefit from deeper bass.
This flexibility makes it easier to tailor your system to different music styles and environments, ensuring consistent performance across a variety of setups.

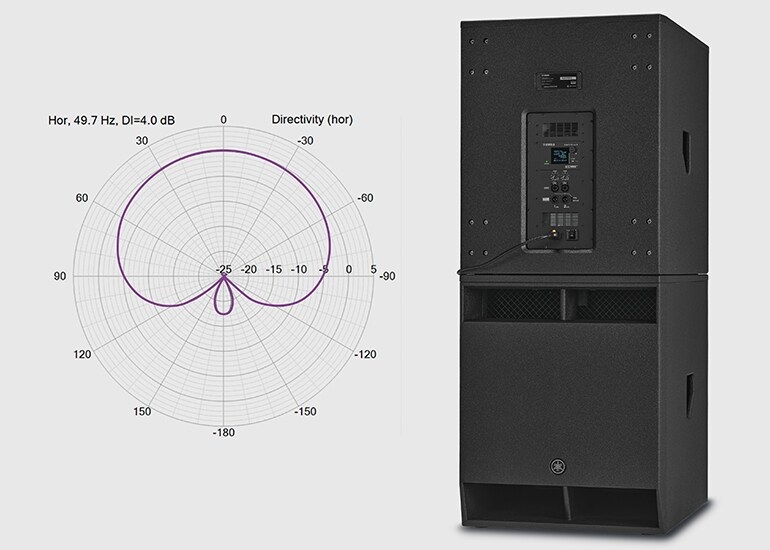

Cardioid Mode
Low frequencies are typically non-directional, resulting in equal sound pressure levels on both audience and stage sides. With two or more DXS mk3 units, the cardioid mode enables more effective bass control by efficiently increasing audience-side output while simultaneously reducing stage-side sound pressure for optimized monitoring performance.

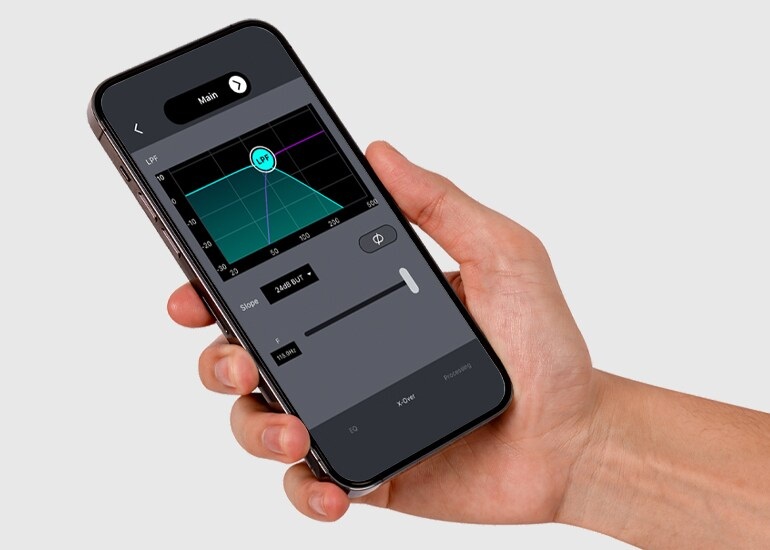

Wireless Control with the D-Remote App
The DXS MK3 range supports wireless control via the D-Remote app, available on iOS and Android devices.
Using Bluetooth, you can adjust key settings such as level, EQ, delay, crossover, and system configuration without needing direct access to the unit. The app also allows you to save and recall scenes, helping streamline setup across different environments.
Real-time monitoring features provide insight into system performance, including limiter activity, temperature, and alerts. With support for multiple connected devices and group control functionality, it offers a flexible way to manage your setup during live use.

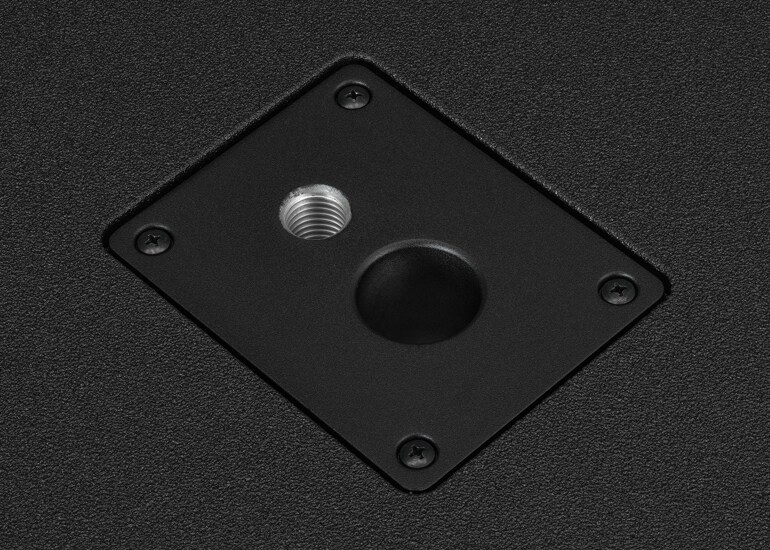

Dual Pole Mount for Flexible Setup
The DXS MK3 range includes dual pole mount sockets, supporting both standard 35 mm poles and M20 threaded connections.
This allows for flexible and secure speaker placement when pairing with full-range tops, making it easy to build a stable and well-positioned PA system.

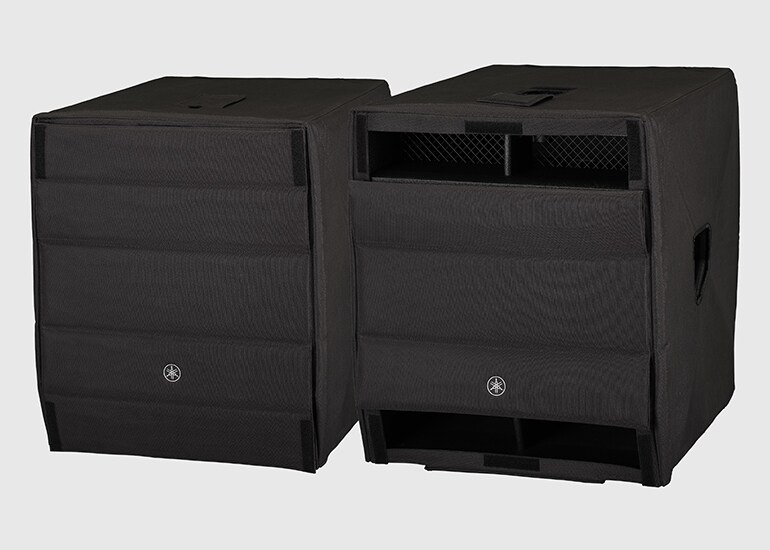

Optional Covers for Protection and Storage
The DXS MK3 range offers optional protective covers designed to shield the subwoofer from dust, dirt, and scratches during transport and storage.
The durable construction also provides light protection in outdoor conditions, helping keep the unit in good condition with regular use.

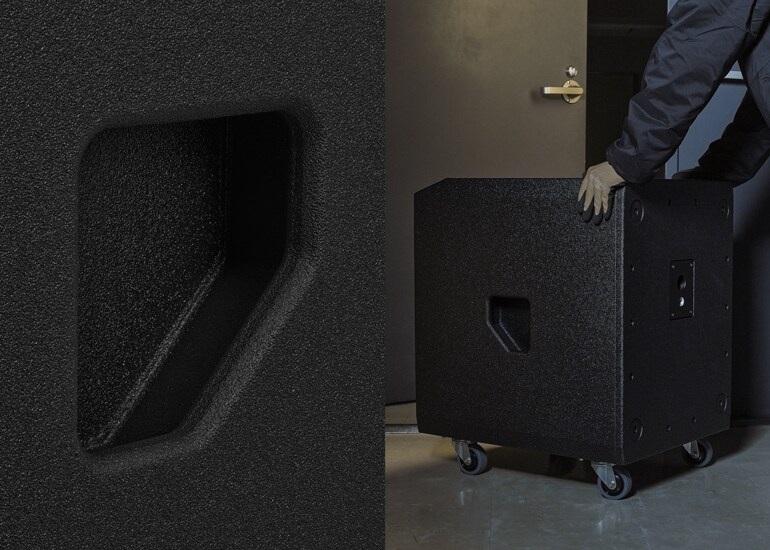

Optional Wheels and Handles for Easier Transport
The DXS MK3 range supports optional caster wheels, designed to make moving the subwoofer easier between locations. The wheels are built for smooth operation, helping maintain stability during setup and use.
A two-way handle design also improves grip and control, making lifting and positioning more comfortable during transport and installation.
Mobile DJing
Band Performance
Band Performance Mid-size
Band Performance with Cardioid Mode
Adding a subwoofer like the Yamaha DXS12 MK3 Active Subwoofer can make a significant difference to your overall sound, especially in music-focused setups.
A subwoofer is designed to handle low frequencies, allowing your main speakers to focus on mids and highs. This results in a cleaner, more balanced sound with improved clarity and greater overall impact.
You may benefit from adding a subwoofer if you:
Play bass-heavy music such as house, drum & bass, or hip-hop
Want a fuller, more powerful sound for DJ sets or live performances
Are using smaller full-range speakers that don’t deliver deep bass on their own
Need better low-end coverage for events or medium-sized venues
For smaller events or speech-focused applications, a subwoofer may not always be necessary. However, for most music-based setups, it can significantly enhance the listening experience.
Which Subwoofer Size Do You Need? (12" vs 15" vs 18")
Choosing the right subwoofer size depends on your setup, venue size, and how much low-end impact you need.
12-Inch Subwoofer (Compact & Controlled)
A 12-inch subwoofer like the Yamaha DXS12 MK3 Active Subwoofer is ideal for users who need a balance of portability and performance.
Best for:
Small to medium venues
Mobile DJs and compact setups
Speech, weddings, and general events
Users who need easy transport
Delivers tight, controlled bass without overwhelming the mix.
15-Inch Subwoofer (More Power & Depth)
A 15-inch subwoofer offers increased output and deeper bass compared to a 12-inch model.
Best for:
Medium to large venues
DJs playing bass-heavy music
Live bands needing more low-end presence
Users wanting a stronger “club-style” feel
A great middle ground between portability and power.
18-Inch Subwoofer (Maximum Impact)
An 18-inch subwoofer is designed for maximum low-frequency output and deep bass extension.
Best for:
Large venues and outdoor events
High-energy DJ performances
Clubs and festivals
Users who prioritise powerful, room-filling bass
Delivers the deepest and most powerful bass, but with increased size and weight.
Which Should You Choose?
Choose 12” if you want portability and balanced performance
Choose 15” if you want more power without going too large
Choose 18” if you want maximum bass and impact
For most mobile DJs and small-to-medium events, the Yamaha DXS12 MK3 Active Subwoofer offers the best balance of size, power, and usability.
Is a 12-inch subwoofer enough for DJ use?
Yes, a 12-inch subwoofer like the Yamaha DXS12 MK3 Active Subwoofer is ideal for small to medium events. It delivers tight, controlled bass suitable for weddings, parties, and general DJ use. For larger venues or bass-heavy music, adding a second subwoofer or choosing a larger model may be beneficial.
Can I use the DXS12 MK3 without a crossover?
Yes, the Yamaha DXS12 MK3 Active Subwoofer has built-in DSP and crossover settings, allowing it to integrate easily with full-range speakers. This means you can set up a complete system without needing external processing in most situations.
How many subwoofers do I need?
One Yamaha DXS12 MK3 Active Subwoofer is suitable for smaller venues and portable setups. Using two subwoofers provides more output, better low-frequency coverage, and improved balance across the room, making it ideal for larger events and live performances.
Does the DXS12 MK3 work well with Yamaha DXR speakers?
Yes, the Yamaha DXS12 MK3 Active Subwoofer is designed to pair perfectly with Yamaha DXR MK3 full-range speakers, including the Yamaha DXR10 MK3 Active Speaker, Yamaha DXR12 MK3 Active Speaker, and Yamaha DXR15 MK3 Active Speaker. Factory presets help ensure a balanced and optimised sound.
2500W active subwoofer with 132 dB SPL
12” high-performance woofer with 3” voice coil
Advanced DSP with D-XSUB bass processing
XTENDED LF mode for deeper bass (down to 38Hz)
Optimised bandpass cabinet design
Cardioid mode for controlled bass direction
Bluetooth control via D-Remote app
Durable plywood cabinet with protective coating
Dual pole mount compatibility (M20 & 35mm)
DXS12 MK3 – Specifications
General
Speaker Type: Powered subwoofer (band-pass)
Frequency Range (-10dB): 38 Hz – 140 Hz
Max Output Level: 132 dB SPL (peak)
Components
LF: 12" cone, 3" voice coil
Amplifier
Class: Class-D
Peak Power: 2500 W
RMS Power: 1250 W
Power & Processing
Cooling: Fan (5 speeds)
Power Consumption: 130 W (1/8 power), 40 W (idle)
Power Requirements: 100–240 V, 50/60 Hz
Converters: 32-bit / 96 kHz
DSP: Same as other models
Connectivity
Same input/output configuration
Bluetooth: v5.0
App: D-Remote
Cabinet & Build
Material: Plywood
Finish: Durable polyurea coating (black)
Handles: Side x2
Pole Mount: 35 mm + M20 threaded
Dimensions & Weight
W: 400 mm
H: 567 mm
D: 570 mm
Weight: 33.0 kg
Options
Cover: SPCVR-DXS123
Castor Kit: SPW-1
