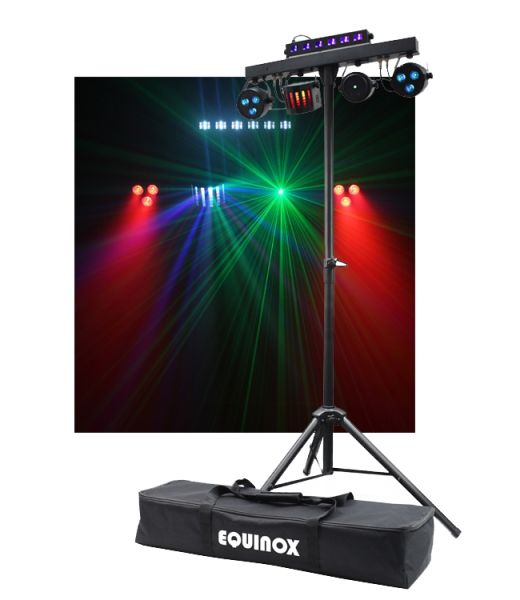

Equinox Microbar Multi System Reloaded LED & Laser Lighting Package
The Equinox Microbar Multi System Reloaded combines colourful PAR lighting, derby beams, laser patterns and strobe effects on one portable bar. Supplied with an adjustable stand, transport bags and IR remote, it offers automatic, sound-active and DMX operation for mobile entertainers seeking a compact lighting package for their indoor event setup.
Equinox Microbar Multi System Reloaded Lighting Package
Bring several lighting looks together with the Equinox Microbar Multi System Reloaded. The powered T-bar combines two multicolour PAR panels with derby, laser and strobe effects, providing a varied starting point for a mobile lighting setup.
Colour and Effects from One Bar
Use colour washes alongside moving beam patterns and sharper accents to vary the atmosphere throughout an event. Plan your lighting around the room, performance area and audience sightlines.
Choose Your Control Method
Run built-in programmes, use sound-active operation or connect a DMX controller for programmed control. The supplied IR remote provides access to blackout, automatic, sound and colour functions.
Transport and Setup Accessories Included
The package includes a height-adjustable stand and transport bags, helping you keep the main components together between events.
Includes the lighting bar, stand, bags and IR remote. Optional DMX control equipment and cables are available separately.
Who Should Choose the Equinox Microbar Multi System Reloaded?
- Mobile DJs: Build a portable lighting setup around your performance area.
- Solo entertainers: Plan different lighting looks for different parts of a performance.
- Event suppliers: Keep a compact package available for appropriate indoor bookings.
- First-time lighting buyers: Start with a package before expanding your rig.
Consider the room size, desired coverage and setup position when choosing event lighting.
Explore Lighting Packages and Control Options
Compare the Microbar Multi System Reloaded with other options before choosing your event lighting setup.
- Other lighting packages: Explore our lighting and effects packages to compare different arrangements.
- Another bar system: View the Equinox Gigabar FX1 Bar System and compare its features with your requirements.
- DMX control: Consider a suitable controller if you want to programme lighting changes. Check fixture-profile support and channel mapping before selecting a controller.
Choose around the effects you want, your available setup space and how you intend to control the show.
Complete Your Equinox Microbar Multi System Reloaded Setup
Plan your control connections and supporting equipment around the venue and performance area.
- Included accessories: The stand, transport bags and IR remote are supplied, so check these before purchasing additional items.
- DMX cables: Explore our StageCore DMX cables for controller connections or linking systems. Select suitable 3-pin connections and lengths.
- Optional wireless DMX: Explore the CHAUVET DJ D-Fi XLR Pack if you need an external wireless DMX link. Check connector fit and power arrangements for your setup.
- DMX controller: Choose a controller with suitable channel mapping for the selected operating mode.
- Power and cable routing: Allow suitable mains access and arrange cables away from walkways.
DMX cables, wireless DMX equipment and controllers are available separately.
Equinox Microbar Multi System Reloaded Key Features
- Combined lighting system on a powered T-bar.
- Two multicolour LED PAR panels.
- Derby, laser and strobe/UV effects.
- Automatic and sound-active programmes.
- Master/slave operation.
- Selectable 3-channel or 12-channel DMX modes.
- LED display with four-button menu.
- 3-pin DMX input and output.
- Included IR remote control.
What's Included?
- Microbar Multi System Reloaded lighting bar.
- Lighting bar carry bag.
- Height-adjustable stand and stand bag.
- IR remote control.
- Power cable.
- User manual.
Equinox Microbar Multi System Reloaded Technical Specifications
| Manufacturer code | EQLED138 |
|---|---|
| Lighting arrangement | Two PAR panels, derby, laser and strobe/UV unit |
| DMX modes | 3 or 12 channels |
| DMX connections | 3-pin XLR input/output |
| Control options | Automatic, sound active, master/slave, DMX and IR remote |
| Power consumption | 70W |
| Power supply | 100–240V AC, 50/60Hz |
| Fuse | F3A 250V |
| Stand height | 1600–1850mm |
| Stand fitting | 35mm |
| Dimensions without stand (H × W × D) | 200 × 750 × 165mm |
| Published weight | 6.3kg |
