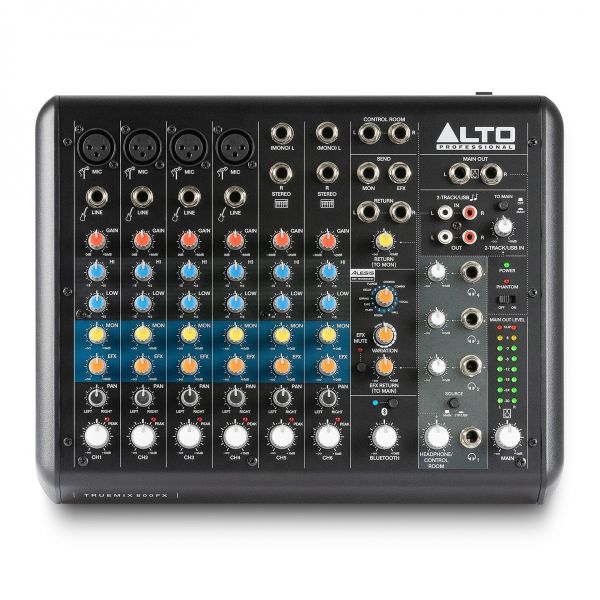

Alto Truemix 800 FX 8-Channel Mixer With USB
Alto Truemix 800 FX: 8-Channel Compact Mixer with USB, Bluetooth, and Alesis Multi-FX
Introducing the Alto Truemix 800 FX 8-Channel Compact Mixer with USB, Bluetooth, and Alesis Multi-FX - the ultimate solution for professional audio mixing and recording. This portable audio mixer offers a range of features designed to enhance your home recording, livestreaming, podcasting, or performing experience.
Experience the Power of Built-in Effects:
With the TrueMix 800 FX, you can elevate your sound with 16 built-in Alesis multi-fx, including chorus, flange, and a selection of high-quality delays and reverbs. These effects add depth and dimension to your audio, making it sound professional and polished.
Seamless Bluetooth Connectivity:
The TrueMix 800 FX comes with a dedicated Bluetooth channel that allows you to effortlessly stream audio from your personal devices. What sets it apart is the mix-minus return feature, which ensures feedback-free phone pairing. This means you can easily connect your phone for calls or music without worrying about any unwanted noise or interference.
Versatile Inputs for Any Source:
Equipped with eight analog inputs, the TrueMix 800 FX offers high-headroom circuitry to minimize noise and clipping in your audio signal. The four Mic Input Channels feature XLR inputs with 48v phantom power, making them ideal for connecting dynamic or condenser microphones. Additionally, these channels offer balanced 1/4" line inputs for instruments and other line-level signals. The two Stereo Input Channels feature dual balanced 1/4" TRS inputs, perfect for line-level audio sources.
Intuitive Control and Customization:
Operating in low-light environments is made easier with the TrueMix 800 FX's color-coded two-band EQ knobs on all channels. These knobs allow you to precisely dial in your desired sound. To add a personal touch, the mixer includes extra knob caps, enabling you to customize its appearance according to your style.
Effortless Connectivity and Monitoring:
Connecting the TrueMix 800 FX to your computer is a breeze with plug-and-play compatibility on both Windows and macOS. The USB I/O enables audio playback and stereo recording, providing a convenient way to capture and playback your mix. Additionally, the mixer features a 2-track input with assignable routing, allowing you to choose between the main mix or headphone out for added flexibility. The four headphone outputs with independent volume control ensure that everyone can monitor their audio levels comfortably.
Flexible Output Routing Options:
Whether you're recording a podcast, livestreaming, or working on music at home, the TrueMix 800 FX offers versatile output and routing options to suit your needs. With four headphone outputs, each with its own volume control, multiple users can monitor their audio independently. Additionally, each channel is equipped with a send knob, enabling you to route your audio signals to external monitors or effects units easily. For recording purposes, the USB output sends a copy of the main outputs to your computer, while the 2-Track in/out can be connected to an external recorder and sent directly to the headphones.
The TrueMix 800 FX is a compact and feature-packed audio mixer designed for on-the-go use. Its portability, versatile functionality, and professional-grade effects make it an ideal choice for audio enthusiasts, podcasters, livestreamers, and musicians alike. Elevate your audio mixing experience with the Alto Truemix 800 FX 8-Channel Compact Mixer with USB, Bluetooth, and Alesis Multi-FX.
- USB I/O for audio playback and stereo recording
- Dedicated bluetooth channel with mix-minus return for feedback-free phone pairing
- Four headphone outputs with independent volume control
- 16 built-in Alesis multi-fx with dedicated return channel
- 1/4” Main, Tape, and AUX outputs
- Four mic input channels with phantom power and balanced line inputs
- Two stereo input channels with balanced 1/4” TRS jacks
- Two-band EQ on all channels
- 2-track inputs w/ assignable routing: main mix or headphone out
- Eight-segment LED VU meter for precise level monitoring
- Extra knob caps included in the box for added customization
TECH INFORMATION
Frequency Response |
All inputs: 20 Hz – 22 kHz (±1 dB) |
THD+N (Total Harmonic Distortion) |
All inputs: < 0.005% (@ 4 dBu, 1 kHz) |
Gain Range |
Mic inputs (Channels 1-2): 0 – 50 dB Line inputs (Channels 1-2): 15 dBu – 35 dBu Line inputs (Channels 3-6): -20 dBu – +20 dBu |
Max Voltage Gain |
70 dB (MIC INPUT to MAIN MIX OUTPUT) 80 dB (MIC INPUT to CTRL ROOM / PHONES OUPTUT) 60 dB (MIC INPUT to MON SEND) |
SNR (Signal-to-Noise ratio) |
All inputs: > 110 dBu |
Crossover Frequency |
Adjacent inputs: < -80 dB @ 1 kHz Inputs to outputs: < -75 dB @ 1 kHz (stereo L/R, Channels 1-2, panned hard left or right) |
Phantom Power |
+45 ~ +49V with switch control |
Impedance |
Mic inputs: 3.9 kΩ All other inputs: > 10 kΩ Aux outputs: 1 kΩ All outputs: 120 Ω |
Equalization |
High: ±15 dB @ 12 kHz Low: ±15 dB @ 80 Hz |
Bluetooth |
Profile: A2DP Module: Bluetooth 5.0 Operating Frequency: 2402 MHz – 2480 MHz Range: 100 ft. / 30.5 m |
Connectors |
(6) 1/4” (6.35 mm) TRS outputs (6) 1/4” (6.35 mm) TRS stereo L/R inputs (4) 1/4" (6.35 mm) TRS headphone outputs (4) 1/4" (6.35 mm) TRS mono inputs (1) Standard RCA L/R input (1) Standard RCA L/R output (4) XLR inputs (1) USB type-B input (1) DC power input |
Controls |
(1) Power switch (15) volume control knobs (1 per input, 1 return, 1 EFX return, 1 2-track/USB in, 4 headphone outs, 1 Bluetooth, 1 main) (6) Stereo pan control knobs (1 per input) (6) Mon volume control knobs (1 per input) (6) EQ Low control knobs (1 per input) (6) EQ Hi control knobs (1 per input) (6) Gain control knobs (1 per input) (4) Buttons (1-EFX mute, 1 Bluetooth, 2 Source Select) (1) Horizontal sliding switch |
Indicators |
(1) Power LED (6) Peak LEDs (1) Phantom LED (16) Main Out Meter LEDs (1) Bluetooth LED |
Power |
Connection: DC Voltage: 18V, 1.2A Consumption: 18W |
Dimensions (width x depth x height) |
2.0” x 9.4” x 3.1” 305 x 238.5 x 79 mm |
Weight |
4.5 lbs. 2.04 kg |
