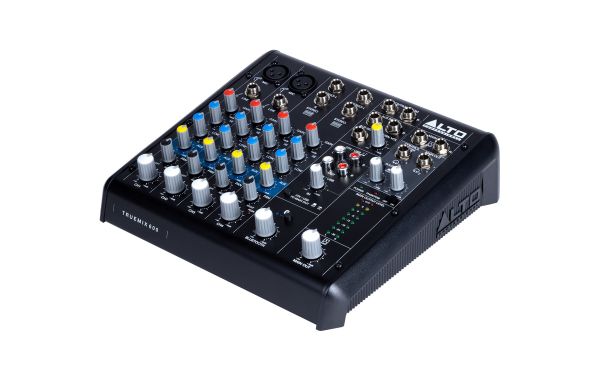

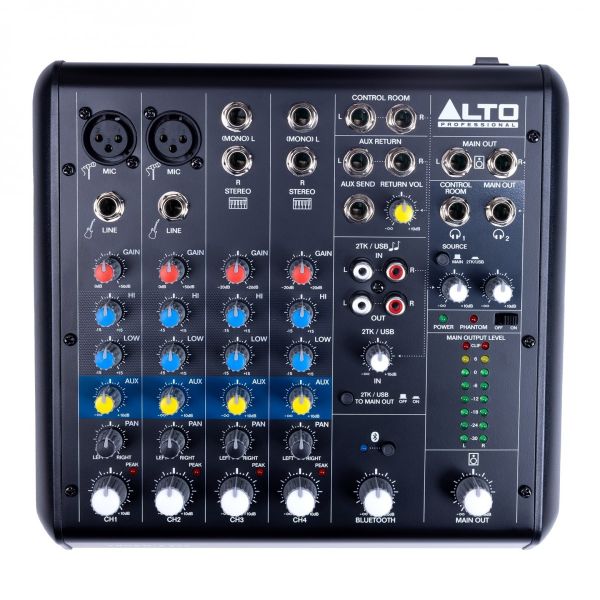

Alto TRUEMIX 600
SKU
865732
£99.00
In stock
The Alto TRUEMIX 600 is your ultimate audio companion. This versatile 6-channel mixer offers pristine sound quality and effortless control. With its array of features, including Bluetooth connectivity and FX processing, it's perfect for live performances, studios, and more, ensuring your sound is always on point.
Categories: DJ & Live Mixers, Alto Mixers, Google in stock
Discover unparalleled audio control with the Alto TRUEMIX 600. This 6-channel mixer redefines sound quality and versatility. From live gigs to studio sessions, its features, including Bluetooth and FX processing, ensure seamless performance. Elevate your audio experience with the TRUEMIX 600 for unmatched sound mastery.
6-CHANNEL COMPACT MIXER WITH USB AND BLUETOOTH
- USB I/O for audio playback and stereo recording
- Dedicated Bluetooth channel with mix-minus return for feedback-free phone pairing
- Dual headphone outputs with independent volume control
- 1/4” Main, Tape, Headphone, and AUX outputs
- Two mic input channels with phantom power and balanced line inputs
- Two stereo input channels with balanced 1/4” TRS jacks
- Two-band EQ on all channels
- 2-track inputs w/ assignable routing: Main Mix or Headphone Out
- Eight-segment LED VU meter for precise level monitoring
Frequency Response:
All inputs: 20 Hz – 22 kHz (±1 dB)
THD+N (Total Harmonic Distortion):
All inputs: < 0.005% (@ 4 dBu, 1 kHz)
Gain Range:
Mic inputs (Channels 1-2): 0 – 50 dB
Line inputs (Channels 1-2): 15 dBu – 35 dBu
Line inputs (Channels 3-6): -20 dBu – +20 dBu
Max Voltage Gain:
70 dB (MIC INPUT to MAIN MIX OUTPUT)
80 dB (MIC INPUT to CTRL ROOM / PHONES OUPTUT)
60 dB (MIC INPUT to AUX SEND)
SNR (Signal-to-Noise ratio):
All inputs: > 110 dBu
Crossover Frequency:
Adjacent inputs: < -80 dB @ 1 kHz
Inputs to outputs: < -75 dB @ 1 kHz (stereo L/R, Channels 1-2, panned hard left or right)
Phantom Power:
+45 ~ +49V with switch control
Impedance:
Mic inputs: 3.9 kΩ
All other inputs: > 10 kΩ
Aux outputs: 1 kΩ
All outputs: 120 Ω
Equalization:
High: ±15 dB @ 12 kHz
Low: ±15 dB @ 80 Hz
Bluetooth:
Profile: A2DP
Module: Bluetooth 5.0
Operating Frequency: 2402 MHz – 2480 MHz
Range: 100 ft. / 30.5 m
Connectors:
(5) 1/4” (6.35 mm) TRS outputs
(6) 1/4” (6.35 mm) TRS stereo L/R inputs
(2) 1/4" (6.35 mm) TRS headphone output
(2) 1/4" (6.35 mm) TRS mono input
(1) Standard RCA L/R input
(1) Standard RCA L/R output
(2) XLR inputs
(1) USB type-B input
(1) DC power input
Controls:
(1) Power switch
(10) volume control knobs (1 per input, 1 aux return, 1 2TK In, 2 headphone out, 1 Bluetooth, 1 Main Out)
(4) Stereo pan control knobs (1 per input)
(4) Aux volume control knobs (1 per input)
(4) EQ Low control knobs (1 per input)
(4) EQ Hi control knobs (1 per input)
(4) Gain control knobs (1 per input)
(3) Locking switch buttons (2 source select, 1 Bluetooth)
(1) Horizontal sliding switch
Indicators:
(1) Power LED
(4) Peak LEDs
(1) Phantom LED
(16) Main Out Meter LEDs
(1) Bluetooth LED
Power:
Connection: DC
Voltage: 18V, 1A
Consumption: 18W
3.2 lbs.
1.4 kg
All inputs: 20 Hz – 22 kHz (±1 dB)
THD+N (Total Harmonic Distortion):
All inputs: < 0.005% (@ 4 dBu, 1 kHz)
Gain Range:
Mic inputs (Channels 1-2): 0 – 50 dB
Line inputs (Channels 1-2): 15 dBu – 35 dBu
Line inputs (Channels 3-6): -20 dBu – +20 dBu
Max Voltage Gain:
70 dB (MIC INPUT to MAIN MIX OUTPUT)
80 dB (MIC INPUT to CTRL ROOM / PHONES OUPTUT)
60 dB (MIC INPUT to AUX SEND)
SNR (Signal-to-Noise ratio):
All inputs: > 110 dBu
Crossover Frequency:
Adjacent inputs: < -80 dB @ 1 kHz
Inputs to outputs: < -75 dB @ 1 kHz (stereo L/R, Channels 1-2, panned hard left or right)
Phantom Power:
+45 ~ +49V with switch control
Impedance:
Mic inputs: 3.9 kΩ
All other inputs: > 10 kΩ
Aux outputs: 1 kΩ
All outputs: 120 Ω
Equalization:
High: ±15 dB @ 12 kHz
Low: ±15 dB @ 80 Hz
Bluetooth:
Profile: A2DP
Module: Bluetooth 5.0
Operating Frequency: 2402 MHz – 2480 MHz
Range: 100 ft. / 30.5 m
Connectors:
(5) 1/4” (6.35 mm) TRS outputs
(6) 1/4” (6.35 mm) TRS stereo L/R inputs
(2) 1/4" (6.35 mm) TRS headphone output
(2) 1/4" (6.35 mm) TRS mono input
(1) Standard RCA L/R input
(1) Standard RCA L/R output
(2) XLR inputs
(1) USB type-B input
(1) DC power input
Controls:
(1) Power switch
(10) volume control knobs (1 per input, 1 aux return, 1 2TK In, 2 headphone out, 1 Bluetooth, 1 Main Out)
(4) Stereo pan control knobs (1 per input)
(4) Aux volume control knobs (1 per input)
(4) EQ Low control knobs (1 per input)
(4) EQ Hi control knobs (1 per input)
(4) Gain control knobs (1 per input)
(3) Locking switch buttons (2 source select, 1 Bluetooth)
(1) Horizontal sliding switch
Indicators:
(1) Power LED
(4) Peak LEDs
(1) Phantom LED
(16) Main Out Meter LEDs
(1) Bluetooth LED
Power:
Connection: DC
Voltage: 18V, 1A
Consumption: 18W
Dimensions (width x depth x height):
8.9” x 8.5” x 2.9”
225.5 x 217 x 74 mm
3.2 lbs.
1.4 kg
1 Year Warranty
