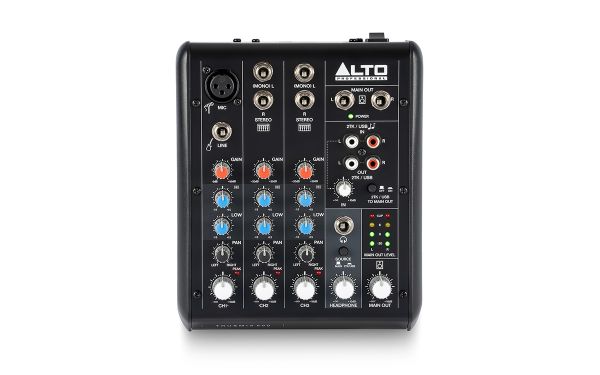

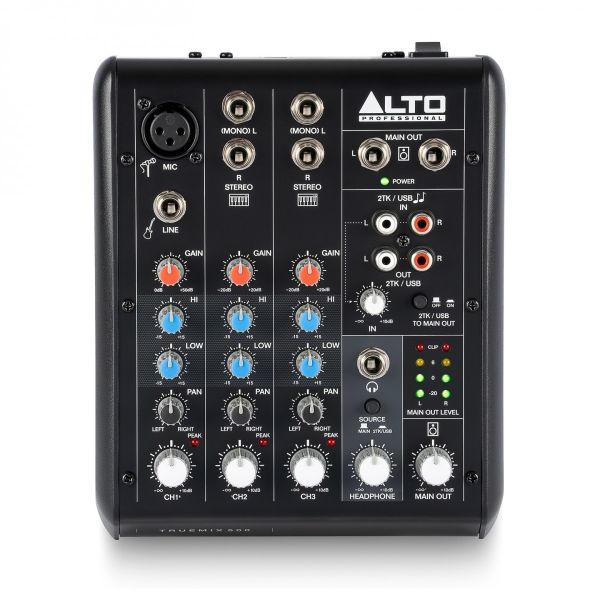

Alto TRUEMIX 500 5-Channel Analogue Mixer with USB
Bring your audio sources together with the Alto TRUEMIX 500. This compact five-channel analogue mixer combines one microphone input, two stereo line-input pairs and USB stereo recording. Two-band EQ, headphone monitoring and straightforward controls make it a practical choice for home recording, solo podcasts, presentations and small performance setups with limited space.
Alto TRUEMIX 500 Compact USB Audio Mixer
The Alto TRUEMIX 500 brings hands-on mixing and computer audio connectivity into a compact desktop unit. Build a straightforward setup around your microphone and line-level sources.
One Microphone Channel and Two Stereo Pairs
The input layout combines an XLR microphone input with a mono line input and two stereo line-input pairs. Check this layout against the sources you need to connect.
USB Recording and Playback
The built-in stereo USB audio interface supports recording and playback with a computer. Establish your mix balance before capturing a session.
Adjust Your Sound
Two-band EQ provides bass and treble adjustment on each input strip. Colour-coded controls help you identify the sections of the mixer.
Monitoring and Playback Routing
A headphone output supports monitoring, while assignable two-track routing lets you select how playback enters your setup.
Prepare Your Session
Label your sources, check levels and make a short test recording. Keep the mixer within reach so you can adjust the balance during use.
Who Is the Alto TRUEMIX 500 For?
- Solo podcasters: consider it for a microphone and playback setup.
- Home recording users: build a simple workflow for capturing a finished mix.
- Presenters: organise speech and music sources in one place.
- Small performance setups: assess the inputs against your instruments and playback equipment.
Count your microphone inputs before choosing a mixer. If you need separate recordings of every source, compare multitrack interfaces or mixers.
Alto TRUEMIX 500 vs TRUEMIX 600
| Feature | TRUEMIX 500 | TRUEMIX 600 |
|---|---|---|
| Analogue channels | 5 | 6 |
| XLR microphone inputs | 1 | 2 |
| Stereo line-input pairs | 2 | 2 |
| USB stereo recording | Yes | Yes |
| Bluetooth | No | Yes, with mix-minus |
| Headphone outputs | 1 | 2 |
| Phantom power | 18V, always active | Switchable 48V |
| AUX send/return | No | Yes |
| Built-in effects | No | No |
Consider the TRUEMIX 500 for a compact setup requiring one microphone input. Compare the Alto TRUEMIX 600 when you need a second microphone, Bluetooth or AUX routing.
Complete Your Alto TRUEMIX 500 Setup
Prepare your monitoring and connections around the way you plan to use your mixer.
- Audio connections: Browse our audio cables. Choose suitable microphone, playback and speaker connection cables.
- Powered PA speakers: Compare the Alto TX408 and Alto TX410 for your live sound requirements.
- More microphone inputs and Bluetooth: Explore the Alto TRUEMIX 600 before selecting your mixer.
Explore active speaker packages for complete PA setup options.
Alto TRUEMIX 500 Frequently Asked Questions
Does it record separate tracks for every input?
No. USB recording is stereo, rather than individual input tracks.
How many microphones can I connect directly?
One through the XLR input.
Does it have 48V phantom power?
No. It supplies 18V, permanently active on the mic input.
Can I use a condenser microphone?
Check that the microphone supports 18V phantom power.
Does it have Bluetooth?
No. Connect playback sources by cable or USB.
Does it have built-in reverb?
No.
Can I monitor on headphones?
Yes. Select Main or 2TK/USB as the headphone source.
Is it USB powered?
No. Use the supplied power adapter.
Can it drive passive speakers directly?
No. Use powered speakers or a separate amplifier.
What is included?
The mixer, power adapter, USB cable and documentation.
Alto TRUEMIX 500 Key Features
- Five-channel analogue mixer.
- USB stereo recording and playback.
- One XLR microphone input.
- Mono line input and two stereo line-input pairs.
- Two-band EQ on each input strip.
- Stereo main outputs.
- Headphone output with volume control.
- RCA two-track input and output.
- Assignable playback routing.
- Compact desktop format.
Alto TRUEMIX 500 Technical Specifications
| Mixer type | Compact analogue mixer with USB audio |
|---|---|
| Analogue input layout | One mono channel and two stereo pairs |
| Microphone input | 1 × XLR |
| Mono line input | 1 × 6.35mm |
| Stereo line inputs | 2 × left/right 6.35mm pairs |
| Phantom power | 18V on XLR mic input; no on/off switch |
| Main outputs | Left/right balanced 6.35mm TRS |
| Headphone output | 1 × 6.35mm stereo |
| Two-track connections | Stereo RCA input and output |
| USB connector | Type-B |
| USB audio resolution | 16-bit |
| Maximum USB sample rate | 48kHz |
| High EQ | ±15dB at 12kHz |
| Low EQ | ±15dB at 80Hz |
| Frequency response | 20Hz–22kHz, ±1dB |
| Power supply | 18V DC, 500mA adapter |
| Power consumption | 9W |
| Dimensions (W × D × H) | 159.5 × 193 × 66mm |
| Weight | 0.9kg |
