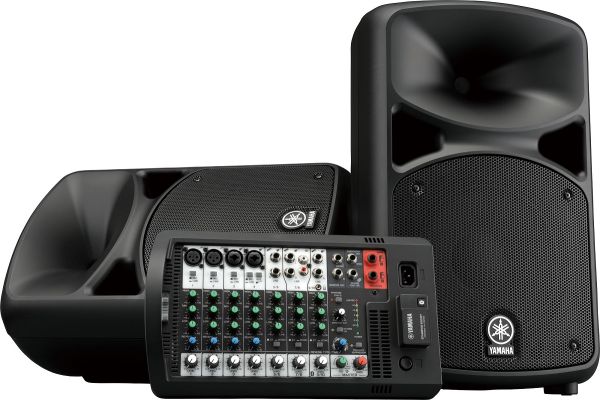

Yamaha STAGEPAS 600BT All-In-One Portable PA System
Experience Impressive Power and Sound Quality with Yamaha STAGEPAS 600BT Portable PA System - All-in-One Solution with Bluetooth and DSP
The Yamaha STAGEPAS 600BT All-In-One Portable PA System is the ultimate solution for anyone looking for high-quality, portable live sound. With an impressive power output of 680 watts, this system delivers exceptional sound quality with its high-quality speakers, including a 10" woofer and a 1.4" voice coil compression driver.
The STAGEPAS 600BT features a detachable 10-channel mixer with four mono/line and six mono/3 stereo line inputs, allowing for easy customization and setup. Equipped with Bluetooth audio streaming, this system allows for wireless playback from smartphones or tablets, providing the flexibility to play backing tracks or set the tone of any event.
The onboard feedback suppressor and versatile EQ allow for precise control over the sound, ensuring a clear, professional sound at all times. With a 1-Knob Master EQ™ with virtual bass boost, users can easily optimize the EQ for any environment, making it perfect for a wide range of applications, from musical performances to speaking engagements.
The STAGEPAS 600BT also features high-resolution SPX digital reverbs with four different types of reverb settings, making it perfect for vocals and acoustic instruments. The system is also equipped with a switchable stereo/mono input, Hi-Z inputs, phantom power, and monitor and subwoofer outputs, providing even more flexibility and control.
Setting up the STAGEPAS 600BT is quick and easy, even for users with no PA operation experience. And with its compact and lightweight design, this system is easy to transport, making it perfect for any occasion, from small gigs to larger events.
Whether you're a professional musician, a public speaker, or just someone who wants high-quality sound on the go, the Yamaha STAGEPAS 600BT All-In-One Portable PA System is the ultimate solution. With its powerful performance, versatile features, and intuitive controls, it provides everything you need to transform any environment into your own personal stage.
- Portable design: The system is compact and lightweight, making it easy to transport and set up for gigs or events.
- Powerful output: The STAGEPAS 600BT delivers 680 watts of power, making it suitable for a variety of venues and applications.
- Bluetooth connectivity: The system comes equipped with Bluetooth connectivity, allowing you to stream audio wirelessly from your smartphone, tablet or other compatible device.
- Digital effects: The STAGEPAS 600BT features high-quality digital effects, including reverb and echo, which can enhance your sound and add depth to your performance.
- Intuitive control: The system is designed to be easy to use, with a simple interface and intuitive controls.
- Multiple inputs: The STAGEPAS 600BT has multiple inputs, including two microphone/line inputs, two stereo line inputs, and a stereo Bluetooth input, providing plenty of options for connecting your audio sources.
- Monitor output: The system features a dedicated monitor output, allowing you to use it as a personal monitor system for on-stage performers.
- Optional accessories: Yamaha offers a range of optional accessories for the STAGEPAS 600BT, including stands, bags, and covers, to help you get the most out of your system.
|
Mixing channels |
10 |
|
Input channel functions |
Hi-Z switch: CH4, ST/MONO switch: CH5/6-9/10 |
|
Output channel functions |
Feedback suppressor, 1-Knob Master EQ |
|
Inputs |
4 mono mic / line + 6 mono / 3 stereo line |
|
Phantom power |
+30V (CH1, 2) |
|
Outputs |
SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF |
|
Bluetooth |
Bluetooth Ver.4.1, A2DP v1.2, Maximum Range: Approx. 10 m |
|
Control and others |
Reverb foot switch |
|
Hi-Z |
CH4 |
|
EQ HIGH |
HIGH Shelving: 8 kHz |
|
EQ LOW |
LOW Shelving: 100 Hz |
|
EQ MID |
MID peaking: 2.5 kHz |
|
DSP |
SPX digital reverb (4 program, parameter control) |
|
Maximum output power @4ohms |
680W (340 W + 340 W) (Dynamic), 560W (280W + 280W) (Continuous) |
|
Speaker type |
Two-way bass-relfex speakers |
|
Frequency range (-10dB) |
55 Hz - 20 kHz |
|
H |
90° |
|
V |
60° |
|
Floor Monitor Angle |
50° |
|
LF |
10" (25 cm) cone |
|
HF |
1.4" (3.56 cm) voice coil compression driver |
|
Maximum output level (1m; on axis) |
129 dB SPL / speaker |
|
Power requirements |
100 V - 240 V 50 Hz/60 Hz |
|
Power consumption |
35 W (Idle), 100 W (1/8 Power) |
|
Pole socket |
34.8-35.2 mm pole socket with StageLok |
|
Accessories |
Cover panel, Power cord (2m), 2 x Speaker cables (6m), 12 x Non-skid pads, 2 x Ferrite Cores, 2 x Cable ties |
|
Options |
Yamaha BMS10A (mic stand adaptor) for mixer mount, FC5 (foot switch) for reverb ON/OFF |
|
Others |
Handle: 1 x Top |
|
Dimensions (W x H x D) |
Speaker 335 x 545 x 319 mm, Mixer 348 x 197 x 135 mm |
|
Weight |
25.6 kg (56.4 lbs) (2 x Speaker 10.9 kg + Mixer 3.8 kg) |
