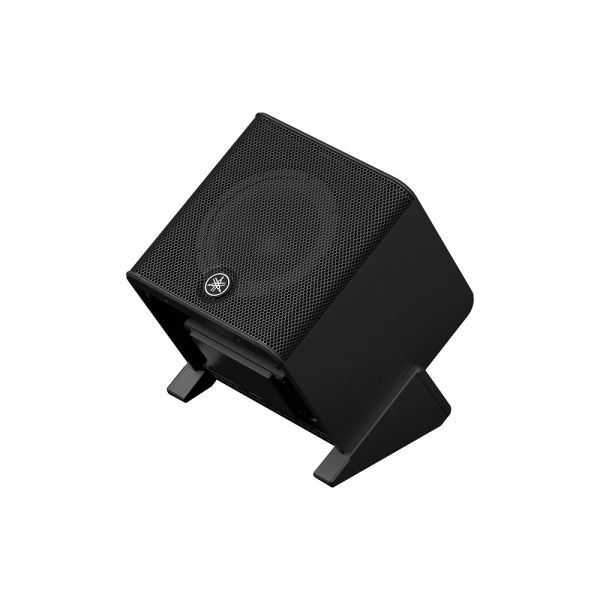

Yamaha Stagepas 200BTR Battery-Powered Portable PA System
The Yamaha STAGEPAS 200BTR is a portable PA system that offers high-quality sound reinforcement in a compact and easy-to-use package. It features two speakers and a built-in mixer, making it perfect for small-scale performances, speeches, presentations, and other events. The speaker is equipped with a 8" woofer and 1" tweeter, providing a powerful and balanced sound. The built-in mixer has 10 channels, including 2 microphone inputs and 2 line inputs, allowing you to connect a variety of sources. The mixer also includes onboard effects such as reverb and chorus, allowing you to enhance your sound.
Additionally, the STAGEPAS 200BTR also includes Bluetooth connectivity, allowing you to stream audio wirelessly from your mobile device. It also includes a USB port for connecting to a computer, and it can be controlled via an app, making it easy to adjust settings and control the mixer remotely. The speakers are also lightweight, making them easy to transport and set up. The STAGEPAS 200BTR is a powerful, versatile and easy-to-use PA system that is suitable for various small-scale events and venues.
- 180 W (HF: 30 W + LF: 150 W) Class-D amplifier
- 1.4” HF + 8” LF high-quality coaxial compression driver
- 5-channel digital mixer (3 monaural mic/line + 1 stereo line)
- Main output multi-band compressor “MODE”
- 1-knob EQ/preset for each channel
- High-grade SPX digital reverb (4 program, parameter control), delay, chorus
- Hi-Z input
- Equipped with link-out/monitor out
- Supplied rubber stand allows inclining at 30 or 60 degrees
- Compatible with audio streaming via Bluetooth
- Can be controlled remotely via an iOS or Android device using the dedicated STAGEPAS Controller app
- Optional BTR-STP200 battery included
- Optional CASE-STP200 carry case for convenient carrying
STAGEPAS 200BTR | STAGEPAS 200 | ||
---|---|---|---|
Type | 2-way Bi-amp Powered Speaker with mixer | 2-way Bi-amp Powered Speaker with mixer | |
Mixing capability | Mixing channels | 5 (Mono x3 + Stereo x1) | 5 (Mono x3 + Stereo x1) |
Input channel functions | Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST | Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST | |
Output channel functions | MODE (SPEECH/MUSIC/CLUB) | MODE (SPEECH/MUSIC/CLUB) | |
I/O | Inputs | Mono x3 (mic/line) + Stereo/Mono x1 (line) | Mono x3 (mic/line) + Stereo/Mono x1 (line) |
Outputs | Monitor/Link out x1 | Monitor/Link out x1 | |
Bluetooth | Ver.5.0, A2DP (SBC, AAC), Class 1 | Ver.5.0, A2DP (SBC, AAC), Class 1 | |
Control and others | STAGEPAS Controller (iOS/Android app) | STAGEPAS Controller (iOS/Android app) | |
On-board processors | DSP | SPX digital reverb (4 program, parameter control), delay, chorus | SPX digital reverb (4 program, parameter control), delay, chorus |
Speaker type | Coaxial speaker with compression driver | Coaxial speaker with compression driver | |
Frequency range (-10dB) | 60 Hz – 20 kHz | 60 Hz – 20 kHz | |
Coverage area | H90゚ x V90゚ | H90゚ x V90゚ | |
Crossover | 2.0 kHz | 2.0 kHz | |
Maximum output level (1m; on axis) | 125 dB SPL *1 | 125 dB SPL *1 | |
Components | LF | 8" Cone, 2.0" voice coil | 8" Cone, 2.0" voice coil |
HF | 1" throat compression driver, 1.4" voice coil | 1" throat compression driver, 1.4" voice coil | |
Amplifier class | Class-D | Class-D | |
Power rating | Dynamic | 180 W (LF: 150 W, HF: 30 W) | 180 W (LF: 150 W, HF: 30 W) |
Cooling | Natural convection (no fan) | Natural convection (no fan) | |
Power consumption | 10 W (Idle), 20 W (1/8 power) | 10 W (Idle), 20 W (1/8 power) | |
Power requirements | 100-240 V 50/60 Hz, or 29.6 Vdc | 100-240 V 50/60 Hz, or 29.6 Vdc *2 | |
Battery | Type | Rechargeable Lithium ion battery pack | - |
Capacity | 79.92 Wh (2700 mAh, 29.6 V) | - | |
Operating Time | Maximum 10 hours, 1/16 power continuous 8 hours | - | |
Charging Time | Approx. 4 hours | - | |
Cabinet material | Plastic (ABS) | Plastic (ABS) | |
Handle | Top x1 | Top x1 | |
Pole socket | Φ35 mm x1 (Side) | Φ35 mm x1 (Side) | |
Floor Monitor Angle | 30° or 60° | 30° or 60° | |
Dimensions (W x H x D) | 300 x 308 x 301 mm (11.8" x 12.1" x 11.9") | 300 x 308 x 301 mm (11.8" x 12.1" x 11.9") | |
Weight | 12.5 kg (27.6 lbs) (Including battery) | 12.0 kg (26.5 lbs) | |
Accessories | Power cord x 1, Battery x 1 | Power cord x 1 | |
Options | Battery: BTR-STP200, Carry case: CASE-STP200 | Battery: BTR-STP200, Carry case: CASE-STP200 |
- *1: Measured peak SPL with pink noise @1 m.
- *2: When using optional battery (BTR-STP200)
