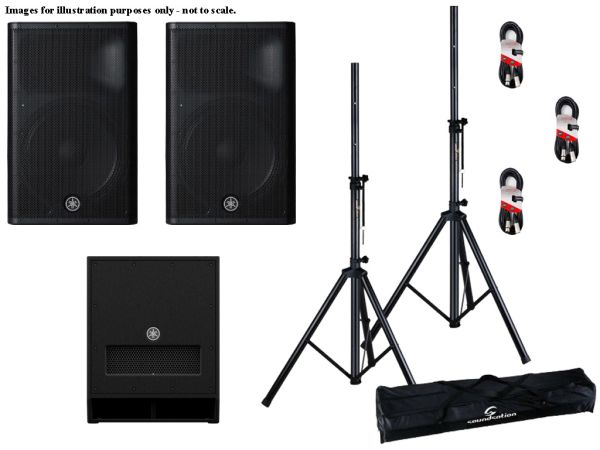

Yamaha DXR15 MK2 Active Speaker
Louder, Lighter, Legendary
The DXR mkII Series is an upgrade of the DXR Series, known for its combination of raw power and technological innovation that delivers high output with superior quality and clarity. The new models feature even more SPL and a larger, lighter 1.75†Neodymium HF compression driver for clear voice reproduction and musicality. The series includes four full-range models suitable for front-of-house sound, monitors, simple amplification, rigged applications, and more. The compact and versatile design, together with the option to combine with DXS subwoofers, allows for versatile control of bottom-end frequencies. The DXR mkII Series is suitable for various applications, and known for its balance of power and innovation, delivering the full power of the performance to the audience.
Yamaha ingenuity and NEXO expertise combine for a new lineup of DXRs
The DXR mkII Series was developed in collaboration with touring loudspeaker specialists NEXO, who provided valuable insight and expertise that led to design improvements based on the evolving demands of sound reinforcement professionals. Whether for fixed or mobile live performances, the DXR mkII Series is versatile and can handle any direction of sound. It combines raw power with proprietary advanced DSP functions for reliability and outstanding clarity, and offers even more than what's expected from the previous DXR Series. It's suitable for various applications, such as fixed installations or mobile live performances, providing reliable and outstanding clarity.
Less Weight, More Power
The DXR mkII Series features custom-designed transducers that have been meticulously selected and customized to deliver ultimate performance. The high power output woofers have low distortion and deep bass, while the larger, yet lighter 1.75†Neodymium precision HF compression drivers produce accurate midrange and high frequencies up to 20 kHz. The speakers also feature a wide dispersion constant directivity horn, designed to minimize radiation pattern deterioration in oblique directions. This horn creates a more rectangular coverage pattern of 90° horizontal x 60° vertical and projects wide-frequency sound to the edges of the coverage area, achieving a more ideal coverage area without irregularities.
The Power of "D"
The development team of the DXR mkII Series used a number of advanced digital technologies based on Yamaha's extensive experience in developing professional audio equipment. These technologies include detailed management of crossover, EQ, and time alignment, as well as limiter settings, protection functions and precise dynamic control of the sound. The speakers were subject to extensive simulation, in-house and field testing to ensure they produce the highest level of sound quality at the highest output levels possible. The speakers also use Yamaha's advanced analog signal processing and acoustic technologies, resulting in the "Power of D" which delivers ultimate performance.
Ultra-Precise 48Bit DSP Processing for High-Definition Sound
All full-range models of the DXR mkII Series feature Yamaha's proprietary FIR-X tuningâ„¢, which utilizes linear phase FIR filters for the crossover network. This technology optimizes frequency and phase response while adjusting the time alignment between the HF and LF transducers, resulting in a smooth response around the crossover point and improved clarity and imaging. The speakers also feature a high-performance 48-bit (76-bit accumulator) processor for high-definition sound quality and use high-precision 24-bit discrete A/D and D/A converters with superior S/N ratio and dynamic range.
Intelligent Dynamic Control for Consistent Clarity at Any Output Level
D-CONTOUR is an intelligent multi-band compressor feature on the DXR mkII Series, which provides powerful and consistent sound throughout all output levels. It constantly monitors the output of multiple frequency bands and calculates the optimum EQ adjustments for each to maintain clarity and musicality even at maximum sound output. The DXR series has two different settings for D-CONTOUR: FOH/MAIN mode and MONITOR mode. FOH/MAIN mode boosts low-frequency to compensate for low-end that is typically missing when speakers are used in suspended applications or mounted on a speaker stand. MONITOR mode is optimized for floor monitor application by intelligently taming down the low-frequency that adds up due to floor reflection, smoothing out a wide range of frequency bands to give you stunning clarity for monitoring your sound. Both of these presets were perfected by performing countless listening tests with skilled sound engineers, giving you a multi-band compressor that performs dynamically, delivering consistent sound with low distortion at any output level.
Extensive DSP Protection Functions for Maximum Output
The DXR mkII Series is an active loudspeaker, which means that the combination of transducers and amplifiers is perfectly optimized. The development team measured and tested the durability of each transducer and the overall amp output through countless indoor and outdoor listening tests to set the optimal limiter point for each model using precise DSP control. The speakers also employ protection functions similar to those used in Yamaha's top-class TXn Series professional power amplifiers. A microprocessor and high-power DSP monitor the status of the power supply, power amplifiers, transducers and ongoing signals to protect all aspects of each component, ensuring reliable operation in even the most severe conditions. Additionally, the full-range models and DXS speakers have a switchable white front LED that illuminates when powered and varies in brightness depending on the amount of system limiting.
High-Efficiency 1100W Class-D Amplifiers
The DXR mkII Series loudspeakers are equipped with highly efficient Class-D amplifiers that are optimally designed to match the HF and LF transducers of the speakers. These high-performance amplifiers deliver the highest sound output in their class, with 1100W of power and an SPL of up to 134dB. They also provide very fast attack and superior transient response, which greatly contribute to the speakers' audio performance. The speakers also employ a universal switching-mode power supply that is high-efficient and suitable for use worldwide with its multi-voltage design.
Intelligent Onboard 3-Channel Mixer
The DXR mkII Series features a flexible onboard mixer with a variety of inputs, making it ideal for simple vocal/instrument amplification. The mixer has flexible IN/OUT options, allowing it to be used as a standalone sound reinforcement system or integrated into a setup using DZR or DXS Series speakers. The mixer can handle up to three simultaneous inputs and accept both mic and line level input, providing flexibility to connect to a variety of sources. Each channel has an individual volume control, allowing you to mix three discrete audio sources. The speaker also features flexible HPF control to match with DXS subwoofers and Smart Mixing/Linking functions such as THRU out, which passes the input signal from Channel 1, and LINK OUT, which sends mixed signal from all channels, for daisy-chaining or routing the signal to another destination. The Link mode allows you to easily switch between stereo or dual-mono configurations.
Durable, Compact ABS Enclosures
The DXR mkII Series features rugged, non-resonant ABS enclosures that are designed to dampen vibrations caused by high output levels, resulting in less distortion and superior sonic quality. The enclosures are road-tested and equipped with heavy-duty steel grilles and ergonomic, gripped aluminum handles for improved durability and portability. The design of the speakers is optimized for withstanding the rigors of touring and live events, ensuring long-lasting reliability and performance.
Symmetrical Enclosure Design for Mirror-Mode Floor Monitoring
The DXR15mkII and DXR12mkII's enclosure design allows for mirror-mode monitor placement, which creates a symmetrical sound field for the performer and a larger, more defined "sweet spot." This feature is particularly useful for floor monitoring, as it can be used in either a balanced dual-mono configuration or a stereo monitor mix setup. By using mirror-mode floor monitoring, the performance can be greatly enhanced by providing a more defined soundstage for the performer.
Dual-Angle Pole Mount Socket
The DXR mkII Series features a pole mount socket that offers two positions - 0° and 7° - which can be used to direct the acoustic energy away from reflective surfaces such as low ceilings and onto the audience, improving the listening experience. This is particularly useful in venues where the mix can be affected by room attributes that impede a clear, even mix. By adjusting the pole mount socket, you can optimize the speaker's output and ensure that the audience receives the best possible sound.
Rigging Points for Standard Eye-Bolts and Optional U-Brackets
The DXR mkII Series loudspeakers come equipped with rigging points, allowing for rigged applications with standard eyebolts (not included). This feature provides a secure and easy way to hang the speakers in various configurations, such as in a suspended installation or mounted on a speaker stand. When more versatility is required, optional U-brackets can be used to allow for simple and easy rigging in both horizontal and vertical configurations, making it possible to install the speakers in a variety of situations.
Yamaha DXS15 MK2 Active Subwoofer
If you like your bass prominent and powerful, DXS Series high-output, powered subwoofers will ensure your bottom-heavy audio is heard loud and clear.
Featuring high-efficiency Class-D amplifiers and a customized woofer housed in a sturdy plywood band-pass enclosure, DXS subwoofers are capable of delivering up to an impressive 1020W of distortion-free power with supreme clarity.
The lineup features the acclaimed DXS18 and recently upgraded versions of the 15” and 12” models, the DXS15mkII and DXS12mkII, which have adopted technologies and features from the DXS18 for an added professional edge and boost in performance.
All feature Yamaha's state-of-the-art DSP, protection functions, and flexible crossover control allowing for seamless compatibility with Yamaha's vast lineup of full-range speakers, and reliable management of your bottom end.
Yamaha have worked tirelessly to develop subwoofers with this level of versatility, dependability, and power because for Yamaha, great bass is serious business. Make it your business too.
The new DXS15mkII capable of producing tight, thunderous low frequencies as low as 40Hz and a maximum SPL of 135dB, this updated model's optimized band-pass design and state-of-the-art DSP ensure the extremely high power output is focused, powerful, and distortion-free.
StageCore CORE350LU6-BK Male XLR - Female XLR 6M
Female XLR Connector - Male XLR Connector, Professional Audio Cable - Includes Hook & Loop Tie
Ultimax MSA-300BK Professional Steel Speaker Stand Kit
Designed with durability and ease of use in mind, this speaker stand kit offers exceptional stability and adjustability to meet the demands of both professionals and enthusiasts alike.
Whether you're performing on stage, addressing a crowd, or hosting an event, the StageCore MSA 300BK Speaker Stand offers the stability, adjustability, and convenience you need to ensure your sound is heard loud and clear. Invest in this reliable piece of equipment to elevate your audio game and enhance the overall experience for your audience.
A maximum height of 1.8m and weight of 30KG load.
Yamaha DXR15 MK2 Active Speaker
Yamaha ingenuity and NEXO expertise combine for a new lineup of DXRs
Advanced technology 1100W "D" Class amplifiers on board
Ultra-precise 48Bit DSP processing for High-Definition sound
Intelligent Dynamic Control for Consistent Clarity at Any Output Level
Extensive DSP Protection Functions for Maximum Output
Intelligent Onboard 3-Channel Mixer
Durable, Compact ABS Enclosures
Symmetrical Enclosure Design for Mirror-Mode Floor Monitoring
Dual-Angle Pole Mount Socket
Rigging Points for Standard Eye-Bolts and Optional U-Brackets
Yamaha DXS15 MK2 Active Subwoofer
15" powered subwoofer with 1020W class-D power amplifier
High-output 15" woofer with a band-pass design cabinet for superior bass response and a maximum 135dB SPL
40Hz-150Hz frequency range is ideal for small- to medium-sized rooms
Built-in D-XSUB processing allows you to extend the frequency response even lower
Plywood cabinet is durable and acoustically optimized for maximum sound quality
Cardioid mode for bass management onstage
Selectable X-OVER (80/100/120 Hz)
M20 and Ø35 mm dual pole sockets
Optional Speaker Wheels (SPW-1) and Speaker Cover(SPCVR-DXS152)
Ultimax MSA-300BK Professional Steel Speaker Stand Kit
- Robust Construction: The StageCore MSA 300BK is built to withstand the rigours of the road and heavy use. Its sturdy construction ensures your speakers are securely elevated.
- Adjustable Height: This speaker stand features a convenient height adjustment mechanism that allows you to customise the elevation of your speakers to achieve optimal sound dispersion and coverage for any venue or application.
- Locking Mechanism: The stand is equipped with a reliable locking system to ensure your speakers stay securely in place at the desired height. This mechanism provides peace of mind during your performance, eliminating the risk of accidental collapses.
- Easy Setup: Setting up the StageCore MSA 300BK is a breeze. Its user-friendly design and quick-release knobs make assembly and disassembly efficient and hassle-free.
- Portability: The lightweight and compact design of this speaker stand kit make it easy to transport and store, making it an ideal choice for musicians, DJs, and audio professionals on the go.
- Accessories: Handy carry bag for 2 stands is included.
- Versatile Compatibility: The StageCore MSA 300BK is compatible with a wide range of speakers, making it a versatile option for various audio setups.
- Aesthetic Appeal: With its sleek and professional appearance, this speaker stand complements any stage or event setting, adding a touch of sophistication to your audio setup.
