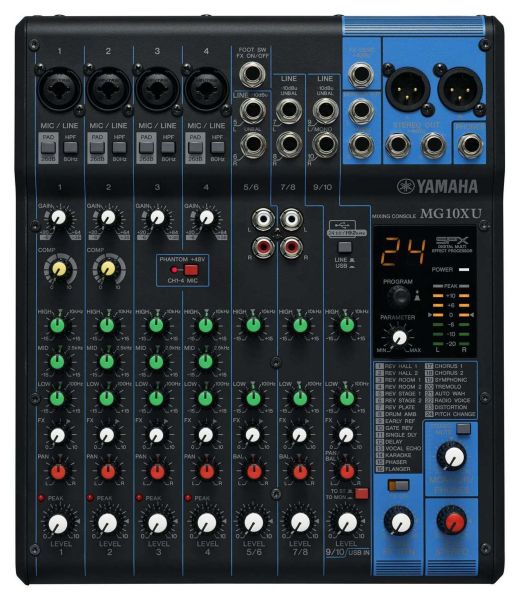

Yamaha MG10XU Mixing Console
Whether it's going to be installed in a club, taken on the road with your band or stored in the gear cupboard for open mic night the Yamaha MG10XU has got everything you need to run a small gig in one portable, reliable PA mixer.
High Quality Mic Preamps and USB Connectivity
Balancing high quality audio electronics with tough build quality and an aux send for headphones, the Yamaha MG10XU also makes a great recording mixer for small studios too.
The 'XU' edition also features a USB interface built-in to the mixer, so you can record your rehearsal or Gig directly to a DAW sequencer or.
USB functionality makes it perfect for quickly capturing musical ideas in the studio without needing a seperate audio interface or soundcard.
D-Pre Mic Preamps
Many of the worlds most coveted vintage preamps use the Class A circuit design for superior sound quality.
Yamaha have gone to the deepest level and collaborated with a semiconductor manufacturer to make their own custom preamp circuitry.
Both mic channels have phantom power for any condenser mics or active DI boxes.
Each microphone channel also features Yamaha's renowned MG series Compression. A quick and easy way to boost low signals and improve the signal consistency in the mix without expensive external processing.
Rugged And Robust
There's a reason you can find Yamaha mixers in venues around the globe.
They keep performing night after night, benefiting from years of experience building equipment to last.
The 3rd generation of the Yamaha MG Series are built with an improved all-metal chassis and rugged tone pots that won't let you down.
SPX FX Processing
The 6 presets on board give you all the effects you need to create a sense of space. Use reverb, delay, modulation, distortion and pitch effects for a creative new angle on your mix.
10-Channel Mixing Console
Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
1 Stereo Bus
1 AUX (incl. FX)
“D-PRE” mic preamps with an inverted Darlington circuit
1-Knob compressors
High-grade effects: SPX with 24 programs
24-bit / 192kHz 2in / 2out USB Audio functions
Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
Includes Cubase AI DAW software download version
PAD switch on mono inputs
+48V phantom power
XLR balanced outputs
Metal chassis
Mixing Capability - SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
I/O - USB Audio Class 2.0 compliant, Sampling Frequency: Max 192 kHz, Bit Depth: 24-bit
Phantom Power - +48V
Input Channels - 4 x Mono (Mic/Line), 3 x Stereo (Line),
Output Channels - 2 x Stereo out, 1 x Monitor out, 1 x Phones out, 1 x Aux send
Bus - Stereo: 1, AUX[FX]: 1
Input Channel Function - Pad-26 dB (Mono), HPF-80 Hz, 12 dB/oct (Mono), Comp-1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec, EQ High-Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving, EQ Mid-Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking, EQ Low-Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving, Peak LED-LED turns on when post EQ signal reaches 3 dB below clipping, Level Meter-2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
Total Harmonic Distortion - 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
Frequency Response - +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
Hum & Noise Level - Input--128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max), Output--102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
Crosstalk - -83 dB
Power Requirements - PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
Power Consumption - 22.9 W
Dimensions(W×H×D): 244 mm x 71 mm x 294 mm (9.6"x 2.8"x 11.6")
Net Weight: 2.1 kg (4.63 lbs.)
