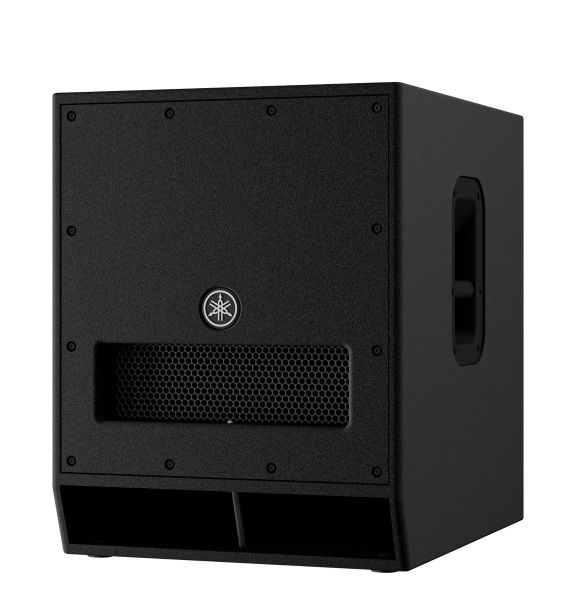

Yamaha DXS15 MK2 Active Subwoofer
If you like your bass prominent and powerful, DXS Series high-output, powered subwoofers will ensure your bottom-heavy audio is heard loud and clear.
Featuring high-efficiency Class-D amplifiers and a customized woofer housed in a sturdy plywood band-pass enclosure, DXS subwoofers are capable of delivering up to an impressive 1020W of distortion-free power with supreme clarity.
The lineup features the acclaimed DXS18 and recently upgraded versions of the 15” and 12” models, the DXS15mkII and DXS12mkII, which have adopted technologies and features from the DXS18 for an added professional edge and boost in performance.
All feature Yamaha's state-of-the-art DSP, protection functions, and flexible crossover control allowing for seamless compatibility with Yamaha's vast lineup of full-range speakers, and reliable management of your bottom end.
Yamaha have worked tirelessly to develop subwoofers with this level of versatility, dependability, and power because for Yamaha, great bass is serious business. Make it your business too.
The new DXS15mkII capable of producing tight, thunderous low frequencies as low as 40Hz and a maximum SPL of 135dB, this updated model's optimized band-pass design and state-of-the-art DSP ensure the extremely high power output is focused, powerful, and distortion-free.
15" powered subwoofer with 1020W class-D power amplifier
High-output 15" woofer with a band-pass design cabinet for superior bass response and a maximum 135dB SPL
40Hz-150Hz frequency range is ideal for small- to medium-sized rooms
Built-in D-XSUB processing allows you to extend the frequency response even lower
Plywood cabinet is durable and acoustically optimized for maximum sound quality
Cardioid mode for bass management onstage
Selectable X-OVER (80/100/120 Hz)
M20 and Ø35 mm dual pole sockets
Optional Speaker Wheels (SPW-1) and Speaker Cover(SPCVR-DXS152)
Speaker Type - 15" powered subwoofer, Band-pass type
Frequency Range - 40 Hz - 150 Hz
Components - 15" cone, 2.5" voice coil
Output Power - Dynamic:1020W / Continuous: 800W
Max Output Level - 135 dB SPL
I/O Connections - INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST)
Processors - D-XSUB: BOOST, XTD LF, NORMAL
Cooling - Natural Convection
Power Requirements - 100V – 240V, 50Hz/60Hz
Power Consumption - 100W
Pole Socket - 35 mm (depth 80 mm) & M20 (threaded depth 25 mm)
Dimensions - W-480mm, D-614mm, H-611mm
Net Weight - 36Kg (79.4lbs)
Cabinet - Material, Finish, Colour: Meranti Plywood, Durable Polyurea Coating, Black
