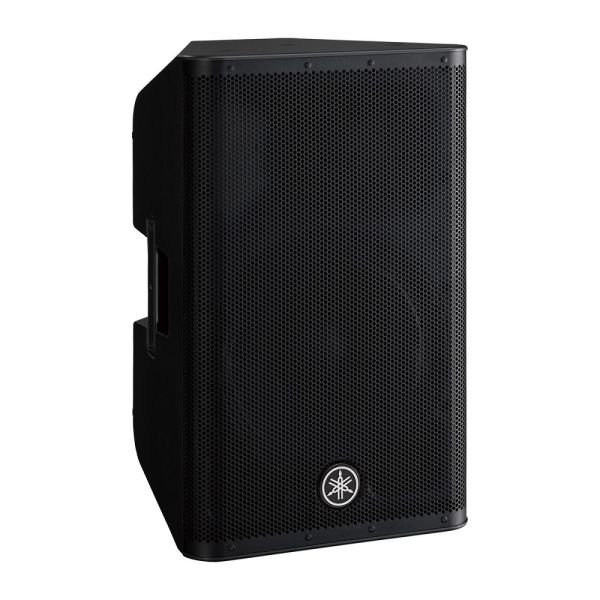

Yamaha DXR12 MK2 1100W 12'' Active Speaker
The DXR12mkII is a high-power loudspeaker that is designed for live sound applications that demand wide bandwidth and high-resolution sound. With a maximum SPL of 134dB and an impressive 1100W of power, it is capable of producing loud and clear sound, making it suitable for use in large venues and outdoor events. The speaker also features Yamaha's proprietary technologies such as FIR-X tuning, D-CONTOUR and a flexible onboard mixer, all of which contribute to its outstanding performance.
- Buy 2 for £694.50 each and save 1%
The DXR12 mkII is an upgraded version of the DXR12, which is known for its combination of raw power and technological innovation that delivers high output with superior quality and clarity. The new model features even more SPL and a larger, lighter 1.75†Neodymium HF compression driver for clear voice reproduction and musicality. The DXR12 MKII is suitable for various applications such as front-of-house sound, monitors, simple amplification, rigged applications, and more. The compact and versatile design, together with the option to combine with DXS subwoofers, allows for versatile control of bottom-end frequencies. The DXR12 mkII is suitable for various applications, and known for its balance of power and innovation, delivering the full power of the performance to the audience.
The DXR12 mkII was developed in collaboration with touring loudspeaker specialists NEXO, who provided valuable insight and expertise that led to design improvements based on the evolving demands of sound reinforcement professionals. Whether for fixed or mobile live performances, the DXR12 mk2 is versatile and can handle any direction of sound. It combines raw power with proprietary advanced DSP functions for reliability and outstanding clarity, and offers even more than what's expected from the previous DXR Series. With its versatile design, it's suitable for various applications, such as fixed installations, live performances, and any other situation where high-quality and powerful sound reinforcement is needed. The speaker's advanced technology and design make it a reliable and outstanding choice for professional sound reinforcement.
The DXR12 mkII features custom-designed transducers that have been meticulously selected and customized to deliver ultimate performance. The high power output woofers have low distortion and deep bass, while the larger, yet lighter 1.75†Neodymium precision HF compression drivers produce accurate midrange and high frequencies up to 20 kHz. The speakers also feature a wide dispersion constant directivity horn, designed to minimize radiation pattern deterioration in oblique directions. This horn creates a more rectangular coverage pattern of 90° horizontal x 60° vertical and projects wide-frequency sound to the edges of the coverage area, achieving a more ideal coverage area without irregularities. This design ensures that sound is delivered evenly across the entire coverage area, providing consistent sound quality for the audience. The custom-designed transducers and the horn work together to deliver outstanding performance and clarity, making the DXR12 mk2 suitable for any professional live sound reinforcement applications.
The development team of the DXR12 mkII used a number of advanced digital technologies based on Yamaha's extensive experience in developing professional audio equipment. These technologies include detailed management of crossover, EQ, and time alignment, as well as limiter settings, protection functions, and precise dynamic control of the sound. The speakers were subject to extensive simulation, in-house, and field testing to ensure they produce the highest level of sound quality at the highest output levels possible. The speakers also use Yamaha's advanced analog signal processing and acoustic technologies, resulting in the "Power of D" which delivers ultimate performance. The use of advanced digital technologies and the integration of analog signal processing and acoustic technologies results in speakers that are capable of producing high-quality, high-resolution sound that is suitable for even the most demanding professional live sound reinforcement applications.
The DXR12 MK2 features Yamaha's proprietary FIR-X tuningâ„¢, which utilizes linear phase FIR filters for the crossover network. This technology optimizes frequency and phase response while adjusting the time alignment between the HF and LF transducers, resulting in a smooth response around the crossover point and improved clarity and imaging. The speakers also feature a high-performance 48-bit (76-bit accumulator) processor for high-definition sound quality and use high-precision 24-bit discrete A/D and D/A converters with superior S/N ratio and dynamic range. These advanced technologies work together to ensure that the speakers produce high-quality sound with minimal distortion and excellent transient response, making them ideal for professional live sound reinforcement applications. The DXR mkII Series speakers are designed to deliver outstanding performance and are suitable for a wide range of applications, from fixed installations to mobile live performances.
In summary, the DXR mkII Series powered loudspeakers are upgraded models of the DXR series, known for their combination of raw power and technological innovation that deliver high output with superior quality and clarity. The new models feature even more SPL, a larger, lighter 1.75†Neodymium HF compression driver, and various advanced technologies such as custom-designed transducers, FIR-X tuning, and D-CONTOUR. These speakers are suitable for various live sound applications, including front-of-house sound, monitors, simple amplification, and rigged applications, and are developed in collaboration with touring loudspeaker specialists NEXO to meet the ever-evolving demands of sound reinforcement professionals.
The DXR12 mkII is a versatile and powerful loudspeaker system that is designed to deliver high-quality sound with maximum SPL of 134dB. It features custom-designed transducers, advanced DSP functions, and a range of input and output options, making it suitable for a variety of applications. The series also includes a number of features such as D-CONTOUR, FIR-X tuningâ„¢, and protection functions that ensure reliable and consistent performance in even the most demanding situations. Additionally, the DXR mkII Series is equipped with rigging points and an adjustable pole mount socket, making it easy to set up and configure for different venues and applications.
Additionally, the DXR mkII Series features a flexible onboard mixer with a variety of inputs, making it ideal for simple vocal and instrument amplification. The mixer can handle up to three simultaneous inputs, accepting both mic and line level inputs for added flexibility. The mixer also includes a flexible HPF control, which allows for perfect matching with DXS subwoofers, and Smart Mixing/Linking function for easy configuration of a compact SR system. The speakers are housed in rugged, non-resonant ABS enclosures, designed to dampen vibrations caused by high output levels, producing less distortion and superior sonic quality. They also include rigging points for rigged applications and an ergonomic, gripped aluminum handle for easy portability.
Yamaha ingenuity and NEXO expertise combine for a new lineup of DXRs
Advanced technology 1100W "D" Class amplifiers on board
Ultra-precise 48Bit DSP processing for High-Definition sound
Intelligent Dynamic Control for Consistent Clarity at Any Output Level
Extensive DSP Protection Functions for Maximum Output
Intelligent Onboard 3-Channel Mixer
Durable, Compact ABS Enclosures
Symmetrical Enclosure Design for Mirror-Mode Floor Monitoring
Dual-Angle Pole Mount Socket
Rigging Points for Standard Eye-Bolts and Optional U-Brackets
- Speaker type: 12" 2-way, Bi-amp powered speaker, Bass-reflex type
- Frequency range (-10dB): 52Hz - 20kHz
- Crossover: FIR-X tuningâ„¢ (linear phase FIR filter)
- Output power: Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
- Maximum output level (1m; on axis): 134dB SPL
- I/O connectors: INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1 Processors: D-CONTOUR: FOH/MAIN, MONITOR, OFF
- Power requirements: 100V - 240V, 50Hz/60 Hz
- Power consumption: 110W
- Flying and mounting hardware: Top x2, Rear x1 (Fits for M10 x 18mm eyebolts)
- Pole socket: 35mm with 2-way features (0 or 7 degrees)
- Dimensions: w - 362mm (14 2/8"), h - 601mm (23 5/8"), d- 350mm (13 6/8")
- Net weight: 18.6kg (41.0lbs)
- Accessories: UB-DXR12 (U-bracket)
- Material: ABS (Matte Finish, Black)
