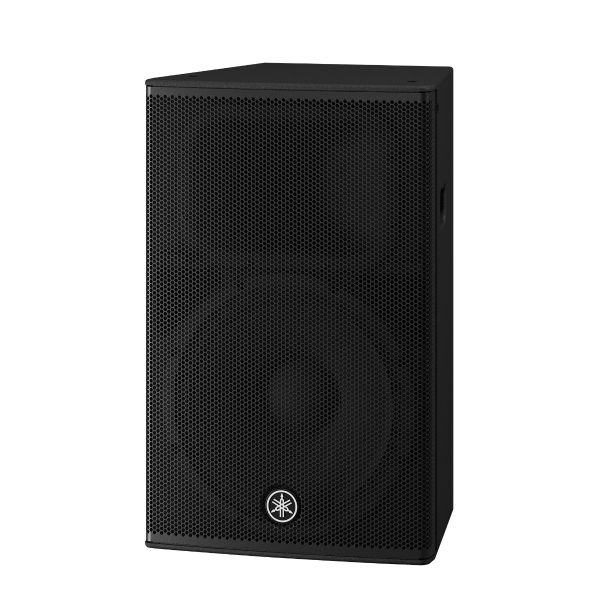

Yamaha DHR15 Active Speaker
SKU
399859
£759.00
Back Order
The Yamaha DHR15 Active Speaker is a high-performance audio solution designed for professional sound reinforcement. With its powerful 15-inch woofer and crystal-clear high-frequency driver, it delivers exceptional clarity and depth. Versatile connectivity options and robust construction make it perfect for a wide range of applications, from live performances to installations.
- Buy 2 for £749.50 each and save 1%
Category: Active Speakers
The Yamaha DHR15 Active Speaker offers premium sound reinforcement with a 15-inch woofer and high-frequency driver. Versatile connectivity options make it suitable for various applications. Whether for live performances or installations, its robust construction ensures exceptional audio quality, making it a top choice for professional sound solutions.
The DHR15 is a 2-way bi-amp powered loudspeaker equipped with a 15-inch woofer and a 1.4-inch HF driver, perfect for use as a main speaker. Combining a 1000W amplifier and high-performance DSP with the same plywood construction found on Yamaha’s high-end DZR Series, the DHR15 offers best-in-class sound quality and durability.
- Featuring a plywood cabinet that delivers a clear sound with minimal vibration
- Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
- Compact size despite the 15-inch LF driver that provides excellent low frequency response
- Dual-angle pole sockets offer both 0° or a -7° down tilt
- Rigging points for use with eye bolts
- Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
|
DHR15
|
|||
|---|---|---|---|
| Speaker type | 2-way, Bi-amped Powered Speaker, Bass-reflex | ||
| Frequency range (-10dB) | 44 Hz - 20 kHz | ||
| Coverage area | H90ﾟ x V60ﾟ | ||
| Crossover | 1.8 kHz: FIR-X tuning™ (linear phase FIR filter) | ||
| Maximum Output Level (Measured peak, IEC noise@1m) | 131 dB SPL | ||
| Components | LF | Diameter: 15" cone, Voice Coil: 2.5", Magnet: Ferrite | |
| HF | Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite | ||
| Amplifier class | Class-D | ||
| Power rating | Dynamic | 1,000 W (LF: 800 W, HF: 200 W) *1 | |
| Continuous | 465 W (LF: 400 W, HF: 65 W) | ||
| Cooling | Fan cooling, 4 speeds | ||
| Power consumption | 74 W (1/8power), 18 W (Idle) | ||
| Power requirements | 100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz | ||
| A/D D/A Converters | 24 bit 48 kHz Sampling | ||
| Processors | HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF | ||
| I/O connectors | INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix) | ||
| Cabinet material | Plywood | ||
| Finish | Durable Polyurea Painting, Black | ||
| Handle | Side x2 | ||
| Pole socket | Φ35 mm x2 (Bottom, 0° or -7°) | ||
| Rigging | Top x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts) | ||
| Floor Monitor Angle | - | ||
| Dimensions | W | 432 mm (17.0") | |
| H | 692 mm (27.2") (with rubber feet) | ||
| D | 405 mm (15.9") | ||
| Net weight | 24.0 kg (52.9 lbs) | ||
| Options | - | ||
1 Year Warranty
