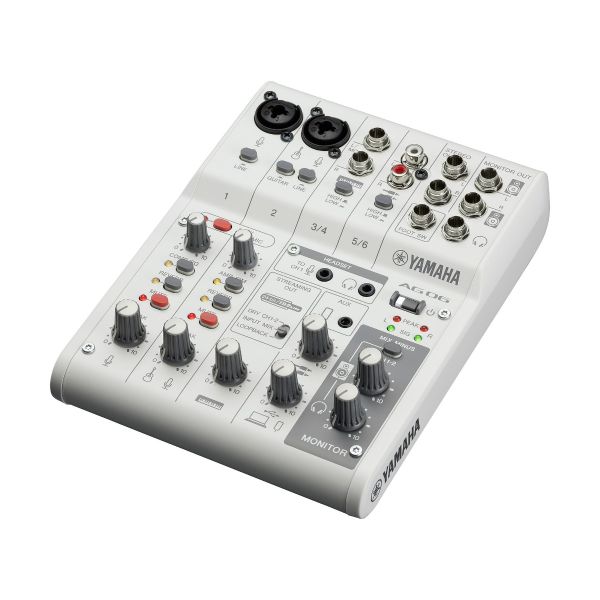

Yamaha AG06MK2 Live Streaming Mixer
SKU
950412
£199.00
In stock
The Yamaha AG06MK2 Live Streaming Mixer is a powerhouse for content creators. With USB connectivity, it effortlessly links microphones, instruments, and computers, delivering top-notch audio for live streams and podcasts. Packed with effects, EQ, and loopback features, it ensures studio-quality sound, making it a must-have tool for content professionals.
Category: Studio & PA Mixers
Elevate your live streaming and podcasting with the Yamaha AG06MK2 Live Streaming Mixer. This advanced mixer offers superior audio quality and versatility. Seamlessly connect microphones, instruments, and computers via USB. With built-in effects, EQ, and loopback functionality, create professional, polished streams effortlessly. Enhance your online presence with Yamaha's AG06MK2.
A 6-channel live streaming mixer with USB audio interface.
- Two condenser microphones can be used simultaneously
- +48 V phantom power on CH1-2 input for condenser mics or Dl boxes
- Hi-Z input for guitars on CH2
- High resolution (24-bit, 192 kHz) 2-track audio recording and playback
- 4-pole mini input/output (TRRS) to support a wider range of streaming applications
- Flexible inputs and LOOPBACK function ideal for live streaming or recording
- Mute button for convenient live streaming
- Easy control and pro sound with 1-TOUCH effects (COMP/EQ, REVERB and Amp Simulator)
- AG Controller (Windows/Mac/iOS ) for precise parameter control
- Windows/Mac support by USB-C connection
- iOS connectivity via Apple Camera Adapter (requires external USB power supply)
- Android supported by 4-pole mini input/output (TRRS)
- USB-C power input (5 V DC, 900 mA)
- Cubase Al, WaveLab Cast, Cubasis LE and Rec'n'Share are available
| AG06MK2 | ||
|---|---|---|
| Input Channels | Mono[MIC/LINE] | 2 - CH1: Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power), CH2: Combo (Mic, +48 V phantom power / Guitar input / Line) *CH1 input and Headset mic cannot be used simultaneously |
| Stereo[LINE] | 2 - L/R Stereo: Phone, RCA | |
| Smartphone | 1 - PHONES / HEADSET PHONES *Cannot be used simultaneously | |
| USB | 1 | |
| Output Channels | PHONES | 2 - PHONES / HEADSET PHONES *Cannot be used simultaneously |
| Smartphone | 1 - 4-pole mini input/output (TRRS) | |
| MONITOR OUT | 1 | |
| STEREO OUT | 1 | |
| USB | 1 | |
| Bus | 1 Stereo | |
| Functions | MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF) | |
| On-board processors | DSP | COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller |
| USB | USB Audio | 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C |
| USB DC Power input | 1 - Type-C, 5 V DC, 900 mA | |
| Power requirements | 5 V DC, 900 mA | |
| Power consumption | Max. 4.5 W | |
| Dimensions | W | 152 mm (6.0") |
| H | 63 mm (2.5") | |
| D | 201 mm (7.9") | |
| Net weight | 0.9 kg (2.0 lbs) | |
| Included Accessories | USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information | |
| Others | Operating Temperature: 0 to + 40 ℃ | |
1 Year Warranty
