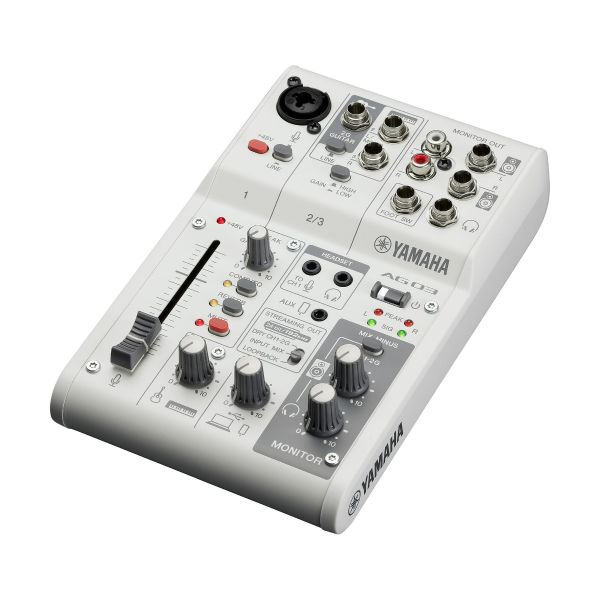

Yamaha AG03MK2 Live Streaming Mixer White
SKU
747733
£164.50
In stock
The Yamaha AG03MK2 Live Streaming Mixer is a compact and versatile audio solution for content creators. Featuring a USB interface, it seamlessly connects microphones, instruments, and computers for high-quality streaming. With built-in effects, EQ, and loopback capabilities, it ensures professional sound and flexibility, making it an essential tool for live streaming and podcasting.
Category: Studio & PA Mixers
Elevate your live streaming and podcasting with the Yamaha AG03MK2 Live Streaming Mixer. This advanced mixer offers superior audio quality and versatility. Seamlessly connect microphones, instruments, and computers via USB. With built-in effects, EQ, and loopback functionality, create professional, polished streams effortlessly. Enhance your online presence with Yamaha's AG03MK2.
A 3-channel live streaming mixer with USB audio interface.
- 60 mm faders for mic CH1
- +48 V phantom power on CH1 input for condenser mics or Dl boxes
- Hi-Z input for guitars on CH2
- High resolution (24-bit, 192 kHz) 2-track audio recording and playback
- 4-pole mini input/output (TRRS) to support a wider range of streaming applications
- Flexible inputs and LOOPBACK function ideal for live streaming or recording
- Mute button for convenient live streaming
- Easy control and pro sound with Amp Simulator and 1-TOUCH COMP/EQ, REVERB
- AG Controller (Windows/Mac/iOS) for precise parameter control
- Windows/Mac support by USB-C connection
- iOS connectivity via Apple Camera Adapter (requires external USB power supply)
- Android supported by 4-pole mini input/output (TRRS)
- USB-C power input (5 V DC, 900 mA)
- Cubase Al, WaveLab Cast, Cubasis LE and Rec'n'Share are available
| AG03MK2 | ||
|---|---|---|
| Input Channels | Mono[MIC/LINE] | 1 - Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, Plug-in power) *CH1 input and Headset mic cannot be used simultaneously |
| Stereo[LINE] | 1 - Stereo Line / Guitar Input (Mono) | |
| Smartphone | 1 - 4-pole mini input/output (TRRS) | |
| USB | 1 | |
| Output Channels | PHONES | 1 - PHONES / HEADSET PHONES *Cannot be used simultaneously |
| Smartphone | 1 - 4-pole mini input/output (TRRS) | |
| MONITOR OUT | 2 - L/R Stereo: Phone, RCA | |
| USB | 1 | |
| Bus | 1 Stereo | |
| Functions | MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF) | |
| On-board processors | DSP | COMP/EQ, REVERB (SPX Reverb), AMP SIM *Detail is operated on AG Controller |
| USB | USB Audio | 2 IN / 2 OUT, USB Audio Class 2.0 Compliant, Sampling Frequency: Max. 192 kHz, Bit Depth: 24-bit, Type-C |
| USB DC Power input | 1 - Type-C, 5 V DC, 900 mA | |
| Power requirements | 5 V DC, 900 mA | |
| Power consumption | Max. 4.5 W | |
| Dimensions | W | 126 mm (5.0") |
| H | 63 mm (2.5") | |
| D | 201 mm (7.9") | |
| Net weight | 0.8 kg (1.8 lbs) | |
| Included Accessories | USB2.0 Cable (1.5 m), Quick Guide, Safety Guide, Wavelab Cast Download Information, Cubase AI Download Information | |
| Others | Operating Temperature: 0 to + 40 ℃ | |
1 Year Warranty
