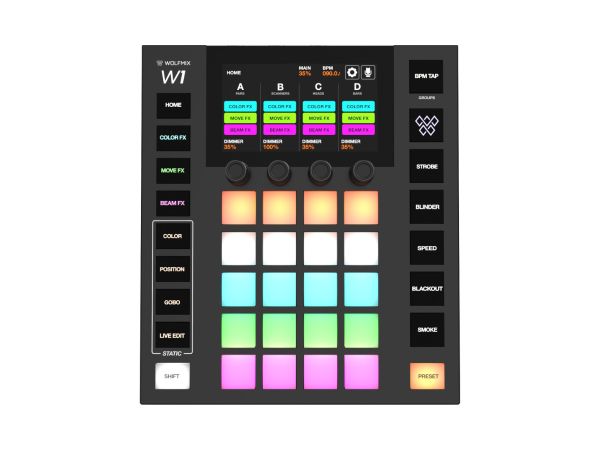

The Wolfmix W1 is a powerful standalone DMX lighting controller designed to create and control light shows without the need for a computer.

The new Mk2 version has updated connectivity with a USB-A port. This can be used to connect a USB stick to backup settings and projects as well as connect an add on midi controller, even devices that can send a midi clock signal to sync your shows.

Wolfmix W1 has a built in CPU, touchscreen display and database of over 3500 fixtures which can be updated from the complete database of 15,000 profiles. Simply connect your lights to one of the 4 DMX sockets on the rear, select your fixtures and start programming.

A toolbox of FX modules, music sync, and up to 4 DMX universes - packed inside robust hardware with a powerful processor. Choose from 1000’s of light fixtures, or build your own directly inside the controller. Whether it’s for a live performance, disco, club or show - Wolfmix has you covered.

Setup

• Standalone (no computer needed)
• Compatible with any DMX device
• Up to 4 DMX universes (2048 channels. Add-on required for U3+4)*
• Up to 680 fixtures & beams
• Up to 50 fixture types
• Up to 5000 fixture features (color/gobo etc...)
• 8 fixture groups
• 6 projects
• 15000+ available fixtures (3500+ on the controller)
• DMX address, fixture order & group setup
• Use as a DMX splitter with DMX universe mapping
• Backup and restore projects and fixtures from a USB memory stick

Palettes & FX

• Color FX module with 8 effect types & 16 definable colors
• Move FX module with 8 effect types
• Beam FX module with 8 effect types
• 6 Flash buttons for controlling Special FX, Strobe, Blinder, Speed, Blackout & Smoke
• Static color palette with 10 user definable colors per group & gradient control
• Static position palette with 5 user definable positions per group with fade & fanning
• Gobo palette with 5 user definable gobos per group
• 40 namable live edit buttons with flash triggering mode and ‘Park’ function
• 100 namable presets for storing snapshots with hold and fade timings
• Preset playback cue list- all presets or per page of 20 presets

Control & Sync

• Group and master dimming with encoder acceleration
• Group FLASH, FULL and Blackout
• 16 bit Pan/Tilt control
• Multi-beam LED bar control
• FX music pulse sync from Microphone or Line-In
• FX BPM sync with Ableton Link, OS2L, BPM TAP & MIDI Clock
• Effect Speed, Phase, Order, Size, Fade, Fan & Flick
• Live control of move FX registration point
• Global FX speed and freeze control
• Map DMX IN with group dimmer and patch to output channels (add-on required)*
• WLINK - sync with another Wolfmix controller (add-on required)*
• Trigger presets and control group dimmers with a MIDI controller

Built-in tools

• Fixture Builder
• Fixture calibration tool, to limit the area of moving fixtures
• X-Y touch controlled positioning grid
• RGBW touch controlled color picker
• 8-step real time sequencer for creating beam and move FX
• Live view of DMX levels with default value override and DMX channel tester
• Beam Editor to override Min and Max values used in generated FX

Other neat features

• Calibrate and RGB, White, Amber, UV mixing with automatic fixed color wheel translation
• Timed release of flash and preset buttons
• Fixture FLIP function, for reversing beam order
• Fixture SPLIT function, for splitting up multi-FX bars
• Lock full controller, or lock editing with a password
• Project & fixture backup with WTOOLS app
• Offline 3D visualization with Easy View & WTOOLS over USB (add-on required)*
• Auto-recovery of active project (no manual saving needed)
• Import different fixture setups into the same project
• Starts in under 2 seconds. Starts sending DMX in under 1 second
• Factory firmware startup recovery mode for times of crisis

*some features require an add-on purchase available through the WTOOLS app
