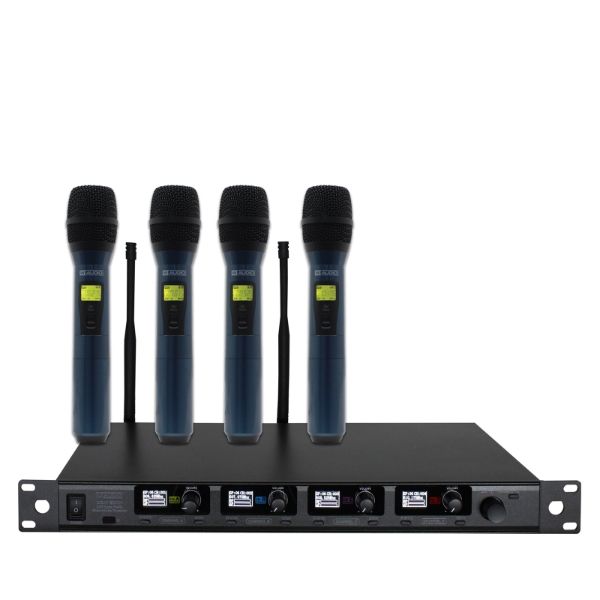

W Audio DQM 600H Quad Handheld UHF
SKU
972454
Special Price
£349.00
Regular Price
£399.00
In stock
DQM 600 Series
Categories: Microphones, Microphones
DQM series wireless microphones are quad UHF handheld systems designed for the professional user featuring a full width receiver for the ultimate in RF stability.
They have a 8Mhz tuning bandwidth in the 606-614Mhz CH38 band. These systems offer crystal clear sound reproduction and rock-solid reliability, along with outstanding vocal reproduction and stable wireless connectivity allowing freedom of movement on stage.
Handheld transmitters feature ergonomic design with a rackmount housing to stand up to the rigours of the road. The flexibility of the handheld systems may be increased by purchasing the additional DQM belt pack kit, to customise your solution with a combination of up to four transmitters including handheld, head worn and lavalier.
They have a 8Mhz tuning bandwidth in the 606-614Mhz CH38 band. These systems offer crystal clear sound reproduction and rock-solid reliability, along with outstanding vocal reproduction and stable wireless connectivity allowing freedom of movement on stage.
Handheld transmitters feature ergonomic design with a rackmount housing to stand up to the rigours of the road. The flexibility of the handheld systems may be increased by purchasing the additional DQM belt pack kit, to customise your solution with a combination of up to four transmitters including handheld, head worn and lavalier.
- UHF band, Phase Lock Loop (PLL) offering stable RF transmission
- Preset frequency groups plus a user definable frequency group allows users to tune the operating frequency of each channel
- OLED display offers a wide viewing angle while remaining bright in darkened conditions
- Frequency, Channel, RF and AF signal strength meters
- Combined use jog wheel button operation for fast menu navigation
- 1U rack metal housing with integrated brackets, include antenna cable interface for front-mount antenna
- Integrated antenna splitter for reduced RF interference
- Balanced XLR output for each channel plus unbalanced mixed output
- Automatic frequency SCAN function
- IR infrared frequency synchronisation via infrared interface
- Mute circuitry for reduced noise
- Flat frequency response: 50Hz-16KHz
- Dynamic, cardioid handheld microphone capsule
- 1U full width rack mount receiver
- Up to 8 DQM transmitters can be used simultaneously when configured manually (one 800mhz and one 600mhz)
- Audio output level 400mV
- Dynamic Range 96dB
- Receiver specifications:
- Power supply: 14V DC (mains adaptor supplied)
- Dimensions (H x W x D): 45 x 482 x 260mm
- Weight: 2.3kg
- Handheld Transmitter:
- Battery configuration: 2 x 1.5V AA (not supplied)
- Dimensions (H x W x D): 250 x 45 x 45mm
- Weight: 0.4kg
1 Year Warranty
