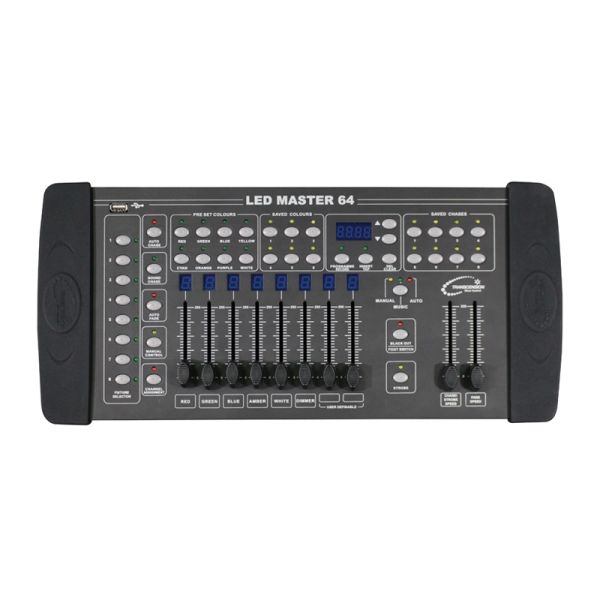

This LED DMX controller features channel assignment technology.

The ability to assign/patch the 8 channels of the LED Master 64, gives you the option of customising the controller to the DMX channels of your lighting fixtures.

The latest software features a virtual dimmer function, allowing the user to add a dimmer channel to fixtures during channel assignment.

Designed to control all LED lighting fixtures with up to 8 channels
Control up to 64 channels of 8 LED groups
8 individual buttons for selecting 8 groups of lighting fixtures
Each fixture group can be in different playback modes simultaneously
LED display for easy navigation
8 colour preset buttons
6 saved colours with 4 banks
8 chases, each with up to 32 steps
2 user definable channels
Ability to save assignments onto a USB memory stick
4 operation modes: auto chase, sound chase, manual control and fade
Password protection
Power loss memory feature
Variable strobe function
19” rack ears (included)

Power supply: 9-12V DC 300mA (adaptor included)
Dimensions (H x W x D): 66 x 280 x 170mm
Weight: 1.8kg

1 Year Warranty
