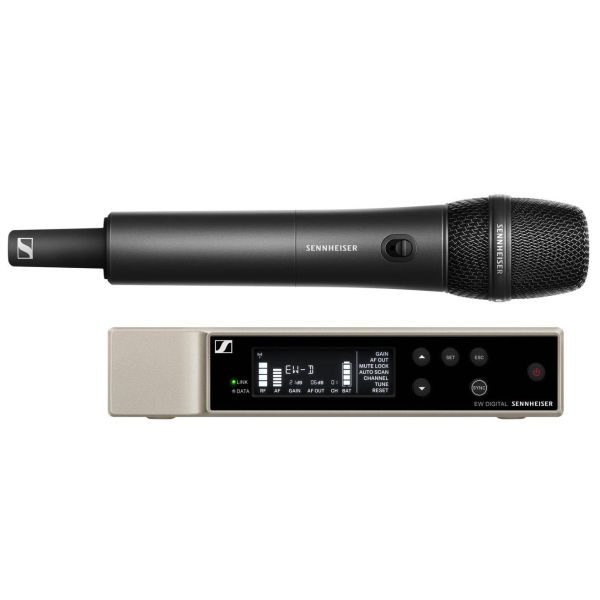

Sennheiser EW-D 835-S Wireless Handheld Mic System (S1-7) CH38
SKU
637629
£566.00
In stock
Sennheiser EW-D 835-S Wireless Handheld Mic System (S1-7) CH38
Categories: Microphones, Microphones
Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App.
Receive state-of-the-art live sound featuring Sennheiser‘s renowned e 835 capsule on a lightweight handheld transmitter with integrated mute switch.
Receive state-of-the-art live sound featuring Sennheiser‘s renowned e 835 capsule on a lightweight handheld transmitter with integrated mute switch.
-
Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
-
Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
-
Auto scan creates reliable connections with minimal time and effort
-
134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
-
Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
-
56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
-
2,240 selectable frequencies allow for fine tuning
-
Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)
EW-D EM
MMD 835 (Microphone Module)
EW-D SKM-S (Handheld Transmitter)
- Dimensions: 212 x 44 x 189 mm
- Weight: approx. 1000 g (without antennas and power supply)
- Current consumption: ≤ 300 mA
- Input voltage range: 11 - 13 V ⎓
- Audio output level: 18 dBu max.
- Transmission power: BLE: max. 10 mW EIRP
MMD 835 (Microphone Module)
- Dimensions: 405 x 350 x 73 mm
- Sound pressure level (SPL): 154 dB
- Transducer principle: dynamic
- Weight: 3.1 kg
- Pick-up pattern: cardioid
- Sensitivity: 2.1 mV/Pa
EW-D SKM-S (Handheld Transmitter)
- Weight:
- approx. 304 g (incl. MMD 835 microphone module)
- approx. 195 g (without microphone module)
- Power supply:
- 2 AA batteries 1.5 V (alkaline manganese)
- or BA 70 rechargeable battery pack
- Current consumption: < 300 mA
- Input voltage range: 2.0 - 4.35 V
- Transmission power:
- Audio link: 10 mW
- ERP (Range Y1-3): 12 mW ERP
- BLE: max. 10 mW EIRP
- Dimensions:
- 50 x 268 mm (incl. MMD 835 microphone module)
- 40 x 200 mm (without microphone module)
1 Year Warranty
