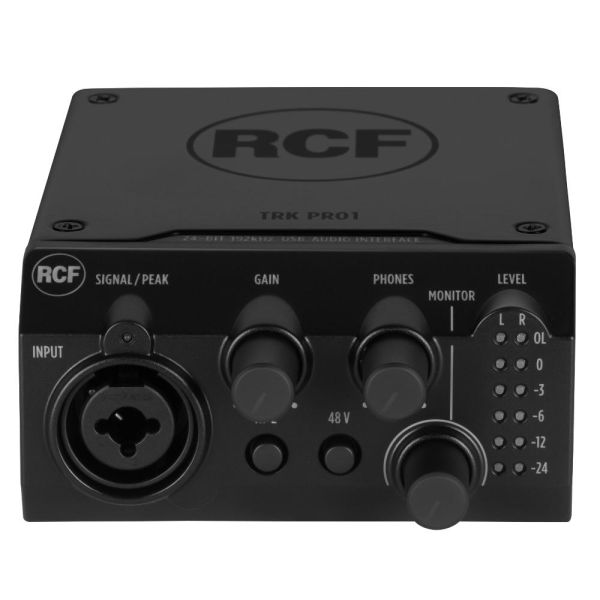

RCF TRK PRO1 Audio Interface
SKU
615586
£109.00
In stock
TRK PRO1
24-BIT 192kHz USB AUDIO INTERFACE
Categories: Audio Interfaces, Audio Interface / Sound Cards
RCF TRK PRO1 hardware interface packs a robust and well-thought USB 2.0 studio-in-a-box with all the connectivity required for microphones, musical instruments, or line-level signals to a computer running macOS or Windows. The internal linear preamp circuit allows the connection of 48V phantom-powered microphones and Hi-Z level instruments. The input signal can be routed to DAW (Digital Audio Workstation) at up to 24-bit, 192 kHz resolution. The interface can be connected to an amplifier and speakers, powered monitors, headphones, an analog mixer, or any other analog audio device.
- 1 In 2 Out USB 2.0 Bus-Powered Audio Interface
- Up to 24-Bit/192kHz
- 1 Mic and Instrument/line Combo input
- High-quality preamp
- Balanced Output
- Independent headphone volume control
- Robust Metal Case
- Perfect for RDNet Measures
- 48V Phantom Power Supply
- Independent Gain Control with Signal-Peak LED
MIC INPUT (Balanced)
Freq. Response: 20Hz-20kHz, +/-0.1 dB
THD+N: <0.0011%, -1dBFS, 20Hz-20kHz Noise EIN: < -120dB
Dynamic Range: 107dB (A-weighted)
Input Impedance: 3.5KOhm
Gain Range: -9 dB ~ +47 dB
Maximum Input Level: +9 dBu
THD+N: <0.0011%, -1dBFS, 20Hz-20kHz Noise EIN: < -120dB
Dynamic Range: 107dB (A-weighted)
Input Impedance: 3.5KOhm
Gain Range: -9 dB ~ +47 dB
Maximum Input Level: +9 dBu
LINE INPUT (Balanced)
Freq. Response: 20Hz-20kHz, +/-0.1dB
THD+N <0.0011%, -1dBFS, 20Hz ~ 20kHz
Dynamic Range 107 dB (A-weighted)
Input Impedance: 15 kOhm
Gain Range: -20 dB ~ +36 dB
Maximum Input Level +20 dB
THD+N <0.0011%, -1dBFS, 20Hz ~ 20kHz
Dynamic Range 107 dB (A-weighted)
Input Impedance: 15 kOhm
Gain Range: -20 dB ~ +36 dB
Maximum Input Level +20 dB
INSTRUMENT INPUT (Unbalanced)
Freq.Response: 20Hz-20kHz, +/-0.1dB
THD+N: <0.0025%, -1dBFS, 20Hz-20k
Input Impedance: 1MOhm
Gain Range: -10 dB ~+46 dB
Maximum Input Level: +10 dBu
Dynamic Range: 107 dB (A-weighted)
THD+N: <0.0025%, -1dBFS, 20Hz-20k
Input Impedance: 1MOhm
Gain Range: -10 dB ~+46 dB
Maximum Input Level: +10 dBu
Dynamic Range: 107 dB (A-weighted)
ANALOG OUTPUT (Balanced)
Maximum Output Level 0dBFS=12dBu
Freq.Response: 20 Hz~20 kHz, +/-0.2
THD+N <0.0012%, -1dBFS, 20 Hz-20 kHz
Dynamic range: 107 dB (A-weighted)
Freq.Response: 20 Hz~20 kHz, +/-0.2
THD+N <0.0012%, -1dBFS, 20 Hz-20 kHz
Dynamic range: 107 dB (A-weighted)
HEADPHONES OUTPUT (Unbalanced)
Output Impedance: <10 Ohm
Max Output Level: 500 Ohm - 114 mW
Max Output Level: 500 Ohm - 114 mW
SUPPORTED SAMPLE RATES
44.1 kHz, 48 kHz,
88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
SUPPORTED BIT DEPTH
16 Bit, 24 Bit
1 Year Warranty
