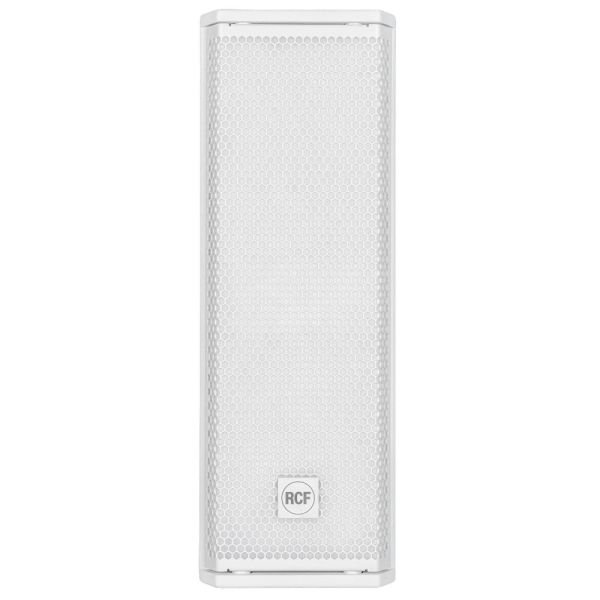

NXL 14-A is the most compact active speaker in the professional NXL series.

It features two 6” woofers in a symmetrical configuration and the new 1.75” Precision Transducers PKX driver loaded on a rotatable TRW waveguide, all powered by a 2,100W two-channel amplifier.

Available in black or white finish, the NXL 14-A is designed to deliver definition, power, and portability in any live application.

Perfect for vocal reproduction, ideal in compact live systems paired with SUB Series subwoofers, in immersive setups, or as a fill speaker.

128 dB max SPL
2100W Class-D Bi-Amplification
70-20000 Hz linear frequency range
1.75" PKX / Neodymium Compression Driver
2 x 6" High Power Neodymium Woofers
Rotatable 100° x 70° TRW Waveguide
FiRPHASE and Bass Motion Control

Frequency Response: 70 Hz ÷ 20000 Hz
Max SPL @ 1m: 128 dB
Horizontal coverage angle: 100°
Vertical coverage angle: 70°
Compression Driver: 1 x 1.0'' neo, 1.75'' v.c
Woofer: 2 x 6.0'' neo, 2.0'' v.c
Input signal: bal/unbal
Input connectors: Combo XLR/Jack
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Crossover Frequencies: 1200
Protections: Excurs.
Limiter: Fast Limiter
Controls: Linear/Boost/Stage Presets, Volume.
Total Power: 2100 W Peak
High frequencies: 700 W Peak
Low frequencies: 1400 W Peak
Cooling: Convection
Connections: Powercon TRUE1 TOP IN/OUT
Safety agency: CE compliant
Cabinet/Case Material: Plywood
Hardware: 2X M10 TOP AND BOTTOM, 2X PIN D.10:
Handles: 2 TOP AND BOTTOM
Pole mount/Cap: Quick-fit socket
Grille: Steel
Colour: Black - RAL 9005, White - RAL 9003
Height: 567 mm / 22.32 inches
Width: 197 mm / 7.76 inches
Depth: 270 mm / 10.63 inches
Weight: 12.8 kg / 28.22 lbs

1 Year Warranty
