RCF HDL 10-A Active Line Array Module
SKU
962178
£1,642.00
Back Order

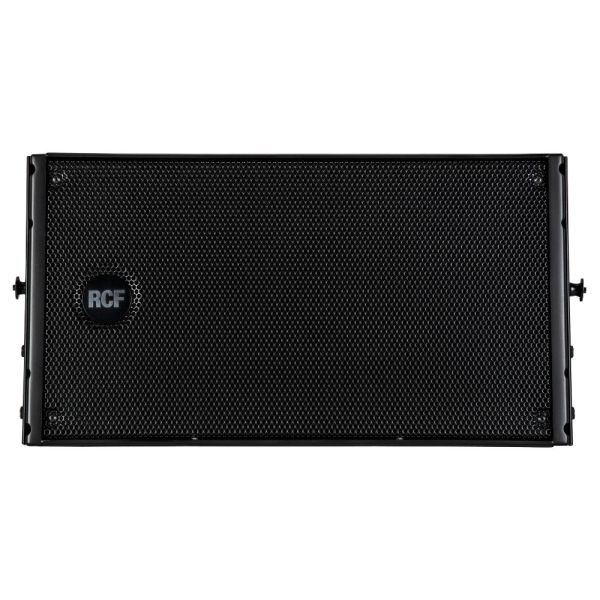

RCF HDL 10-A Active Line Array Module
Categories: Active Speakers, Active Speakers
The very compact size, no compromise transducers and a unique composite cabinet design make the HDL 10-A the perfect tool in many situations.
Ideal in live sound reinforcement and reliable installed situations. The HDL 10-A is the ideal choice when line array performance is needed and a fast and easy set up is a must.
The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The HDL 15-AS is the ideal flyable bass complement for the HDL 10-A array system.
Ideal in live sound reinforcement and reliable installed situations. The HDL 10-A is the ideal choice when line array performance is needed and a fast and easy set up is a must.
The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The HDL 15-AS is the ideal flyable bass complement for the HDL 10-A array system.
- 1400 Watt Peak power - 700 Watt RMS
- 133 dB max SPL
- 65 Hz 20 kHz frequency response
- 2 x 8" Woofers
- 1 x 2" Compression Driver
- DSP controlled Input section with selectable presets
- Tour grade safe and solid variable mechanics
- Composite PP enclosure structurally wooden reinforced
Acoustical specifications
Transducers
Input/Output section
Processor section
Power section
Standard compliance
Physical specifications
Size
- Frequency Response: 65 Hz ÷ 20000 Hz
- Max SPL @ 1m: 133 dB
- Horizontal coverage angle: 100°
- Vertical coverage angle: 15°
Transducers
- Compression Driver: 1 x 2.0'', 2.5'' v.c
- Woofer: 2 x 8'', 2.0'' v.c
Input/Output section
- Input signal: bal/unbal
- Input connectors: XLR
- Output connectors: XLR
- Input sensitivity: -2 dBu/+4 dBu
Processor section
- Crossover Frequencies: 800 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Cluster, HF, High curving, Indoor
Power section
- Total Power: 1400 W Peak, 700 W RMS
- High frequencies: 400 W Peak, 200 W RMS
- Low frequencies: 1000 W Peak, 500 W RMS
- Cooling: Convection
- Connections: Powercon IN/OUT
Standard compliance
- Safety agency: CE compliant
Physical specifications
- Cabinet/Case Material: PP Composite
- Hardware: Rigging flyware
- Handles: 2 side
- Grille: Steel
- Colour: Black, White
Size
- Height: 294 mm / 11.57 inches
- Width: 569 mm / 22.4 inches
- Depth: 434 mm / 17.09 inches
- Weight: 20.4 kg / 44.97 lbs
1 Year Warranty
