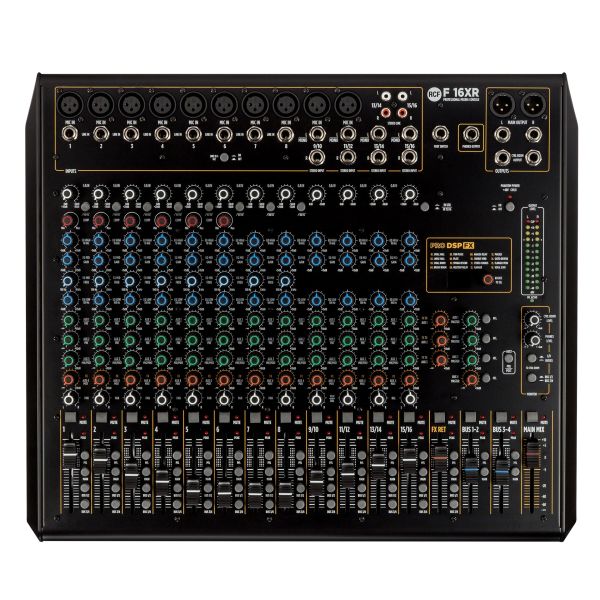

RCF F-16XR 16 Channel Mixing Console With Multi-FX & Recording
SKU
845472
£446.00
In stock
High quality sound housed in a sturdy metal chassis
Categories: DJ & Live Mixers, RCF Mixers
FLEXIBLE ANALOG MIXING
RCF’s next-generation F 16XR analog mixer build on the rich legacy found with the E Series range of mixers, providing high-quality sound in 16-channels. With an aesthetically pleasing interface and rugged connectors, the F16XR model makes it easy to mix your music with minimal technical expertise. Housed in a rugged metal chassis, the F-16XR mixer is fully balanced with low noise from input to output, independently controlled compressors* to limit signal peaks and a modern sounding EQ.
ENHANCED ANALOG MIXING FLEXIBILITY
RCF’s next generation F16XR mixer is a powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, the mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The F-16XR includes a USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.
STATE OF THE ART EQ
State-of-the-art 3 band EQ on mono channels,
2 bands EQ on stereo channels for precise shaping of sound.
HIGH QUALITY PREAMPLIFIERS
High quality preamplifiers with phantom power, inspired by the E-Series Mixers, offer high level sound and dynamics. Line level signals are less noisy when connected using the separate line input jack socket.
POWERFUL DIGITAL FX AND RECORDING OPTIONS
16 studio-quality effects and multiple AUXs increase the musical power of the F Series. FX returns can route to AUXs for personal monitor mixes, while the buses and the control room panel can simplify complex routings.
WORKFLOW IS FAST AND SIMPLE
A compact and robust mixing console for any musician or audio enthusiast, the F Series is entirely conceived and designed by the RCF R&D team. With powerful routing capabilities, premium digital effects, and a stereo USB I/O, it has never been so enjoyable to create and mix.
RUGGED CONSTRUCTION
Built to last, the F Series features a durable metal chassis with protective plastic bumpers on each side, making it easy to grab-and-go.
- 10 Mic preamp inputs, 4 mono line inputs
- 4 Stereo line inputs
- PRO DSP FX onboard with 16 presets
- Stereo recording and playback via USB port
- 6 single control compressors
- Balanced main output +28 dB (Stereo XLR + TRS)
- Two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post)
- 60 mm faders
- Internal universal power supply
- Designed and engineered in Italy
Auxiliary sends
AUX:
2 PRE / 1 PRE/POST
FX POST:
1
Compressors
RCF COMPRESSORS:
n°6 Single Control Compressors on Channels 1 to 6
Electrical specifications
POWER CONSUMPTION (W):
30 W
POWER SUPPLY:
Internal
VOLTAGE REQUIREMENTS:
100 V - 240 V
FREQUENCY RESPONSE:
20 Hz ÷ 20 kHz
THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED):
<0,02
EQ
DESCRIPTION:
High: +/-15 dB @ 10 kHz Shelving Mid: +/-15 dB @ Freq. sel. from 100Hz to 8kHz - Bell Low: +/-15 dB @ 100 Hz Shelving
INPUT CHANNELS EQ:
1 Semi Parametric / 2 Shelving
Inputs
GAIN RANGE:
0 dB ÷ -50 dB
GAIN SELECTION:
20 dB ÷ -30 dB
HI-Z LINE INPUTS IMPEDANCE (MOHM):
1 Mohm
HI-Z LINE INPUTS:
1
MIC INPUTS IMPEDANCE (KOHM):
14 kohm
LINE:
8
LINE INPUT IMPEDANCE (KOHM):
21 kohm
LOW CUT:
80 Hz
MIC:
10
PHANTOM POWER +48V:
Yes
STEREO LINE:
4
STEREO LINE GAIN SELECTION:
20 dB ÷ -30 dB
STEREO LINE INPUT IMPEDANCE:
14 kohm
Internal Effects
SEND EFFECTS:
1
Other features
FOOTSWITCH:
Yes
Outputs
AUX OUTPUT:
4
AUX SEND:
3
CONTROL ROOM:
Yes
FX SEND:
1
GROUP OUT:
4
MAIN MIX:
1
PHONES:
1
Outputs specifications
AUX OUT LEVEL (DBU):
28 dBu
GROUP OUT LEVEL (DBU):
28 dBu
MAIN OUT LEVEL (DBU):
28 dBu
PHONES OUT IMPEDANCE (OHM):
150 ohm
PHONES OUT LEVEL (DBM):
10 dBm
Physical specifications
CABINET/CASE MATERIAL:
Metal
COLOR:
Black
Shipping informations
PACKAGE DEPTH:
523 mm / 20.59 inches
PACKAGE HEIGHT:
150 mm / 5.91 inches
PACKAGE WEIGHT:
7.4 kg / 16.31 lbs
PACKAGE WIDTH:
453 mm / 17.83 inches
Size
DEPTH:
406 mm / 15.98 inches
HEIGHT:
107 mm / 4.21 inches
WEIGHT:
6.4 kg / 14.11 lbs
WIDTH:
479 mm / 18.86 inches
Standard compliance
CE MARKING:
Yes
USB audio
PLAY TRK:
2
REC TRK:
2
SUPPORTED SAMPLE RATE (KHZ):
44.1, 48.0
TYPE:
B
3 Year Warranty
