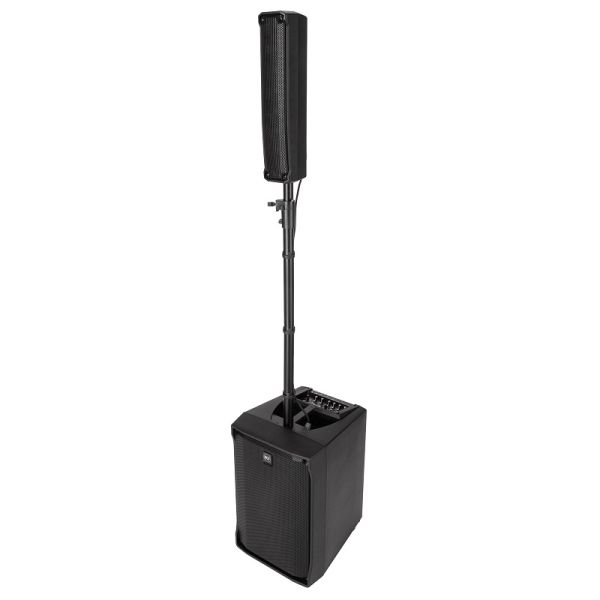

RCF Evox JMIX8 1400W Active Two-Way Array Speaker

EVOX JMIX8 - Active Two Way Array Music System With Digital Mixer.

The RCF EVOX JMIX8 is essentially the same as the EVOX J8 but with a built in 8 input digital mixer.

Taking the EVOX J Series one step further, RCF has added an 8-input Digital Mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions; it includes high-quality instrument FX and AMP simulations. An EVOX iOS/Android-compatible app allows to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input,the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote controllable 8-channel digital mixer.

The mixer section features a high quality professional preamplifier with remote digital gain control, selectable high pass filter, pan control and polarity reversal switch. Phantom power for condenser/electret microphones (+48V) available for channel 1 and 2. Each input channel is provided with a three band EQ: ±12dB gain shelving equaliser for lows and highs and a semiparametric EQ from 50Hz to 12kHz and ±12dB gain for the mid band. The EQ can be switched OFF with the touch of a button. Each channel can send audio to the FX chain and to the AUXiliary output for monitoring or other creative uses.

DYNAMIC COMPRESSOR

MIC/LINE inputs 1 to 4 are provided with a single control dynamic compressor. The control slider acts on the amount of compressor intervention. A dedicated button toggles the compressor ON and OFF. Up to 6 different presets can be selected from the Compressor Model list: Light, Heavy, Vocal, Bass, Acoustic, and Drum.

MAIN CHANNEL

A 7-band graphic EQ on the Main Channel lets you shape the frequency response of the system. In order to have a powerful overall sound, limiting peaks and more RCF EVOX J harmonics, four mastering processing presets can be selected: MASTERING, MASTER BOOST, LOUD & PROUD, and HI-FI.

GUITAR AMPS AND CABINETS INCLUDED

The line input 4 can be switched to a Hi-Z mode and host several realistic amp modeling simulators. Guitar and Bass players can count on a whole range of 15 realistic emulations tuned for the maximum reality: Darkface ’65, Jazz C, Rock’64, Rock 800 Crunch, Rock 900 Lead, Top30, Modern, Bassamp, Bassmate, Markbass 1, Markbass 2, Slo 88 Crunch, Slo 88 Lead, Overange 120, Heavy 51 and others. Shape the sound of each amp via 4 different parameters, store it in the Preset memory and recall via EVOX App, Panel, or Footswitch. A wide range of integrated sound options at your fingertips.

TONS OF EFFECTS

80 High Quality effects presets from the premium RCF Z.CORE.DSP, each with three parameter controls: 40 different reverbs, providing a realistic simulation of large spaces, such as halls, rooms or hardware reverbs; 20 different delay types; 20 modulation effects to shape any nuance of your music.

MFX

A whole range of easy-to-use effects helps the musician to find the right sound in any song: chorus, tremolo and flanger on the modulation effects unit, plus a useful delay for musical instruments.

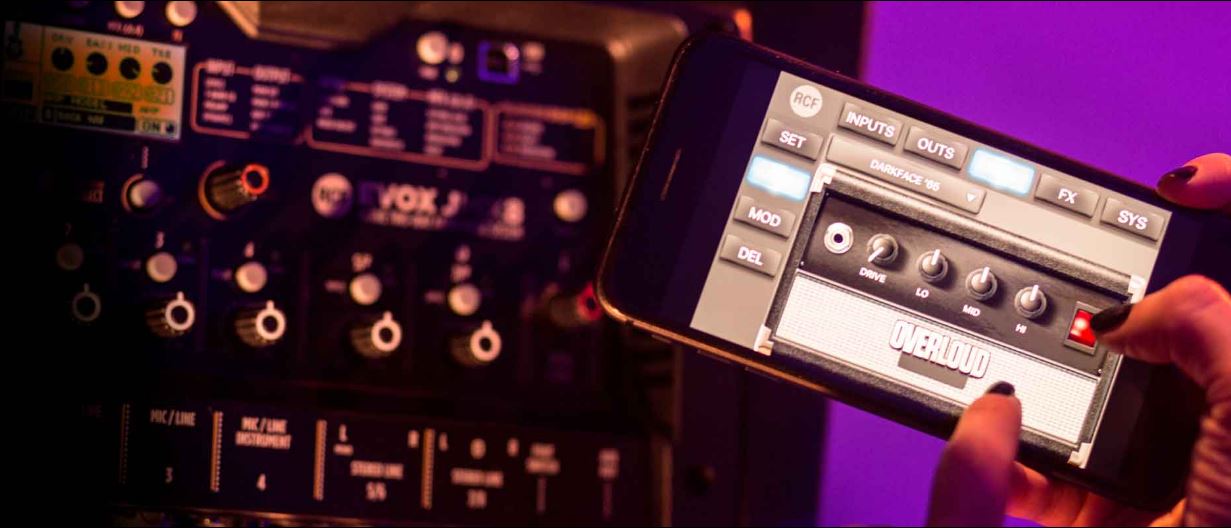

EVOX APP

The RCF EVOX App ensures a comprehensive control of J Series mixers: all the processing you need, on your smartphone, via Bluetooth. Featuring attractive and intuitive graphics created by audio professionals, the app allows you to navigate between pages and fully control the mixer’s parameters even while playing. RCF EVOX J The EVOX App is available for iOS and Android operating systems.

SUPERIOR TRANSDUCERS

HIGH FREQUENCIES - The ultra-compact full-range 2” RCF drivers are capable of handling high SPL and power with a stunning sound performance.

LOW FREQUENCIES The high excursion 12” RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design features constant directivity coverage of 120°x30°(HxV), providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.

READY TO PLAY IN A FEW SIMPLE STEPS

PORTABILITY In addition to the handle on top of the woofer’s cabinet, transportation is made easy thanks to the trolley, that is fully integrated into the optional cover of the speaker. During transportation, the metal pole is safely attached to the trolley with the cover’s handles.

MOUNTINGScrew the pole into the pole mount on top of the subwoofer. Insert the top column, connect the SpeakOn and it’s done! An adjustable fastener allows the pole’s length to be adapted.

PLAY!Carrying and mounting your audio system has never been so quick.

J SYSTEM CONFIGURATIONS

From solo musicians to big DJ parties, the EVOX J system flexibility is a must. Thanks to the multiple outputs and the FiRPHASE processing with 0° phase response, reaching the best listening experience on any venue is an easy task. Check out some standard configurations to understand the system set-up.

NEW PERSPECTIVE ON LINEARITY

RCF speakers are designed using a proprietary and advanced FiR filtering technology, conceived to deliver transparent sound, absolute clarity and perfect stereo images to the listener. The special FiRPHASE filters allow to achieve coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies to the system.
