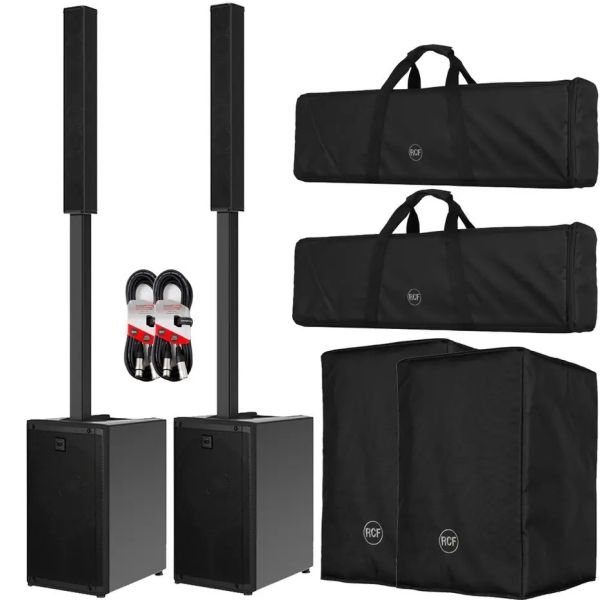

RCF EVOX J9 Active three way portable array
RCF EVOX J9 Active Three-Way Portable Column Speaker – 2100W, 130dB Professional PA System
The
RCF EVOX J9 is a premium
active three-way portable column speaker system engineered for exceptional clarity, powerful output, and effortless deployment. Designed for professional DJs, live bands, and performers, EVOX J9 delivers
130 dB Max SPL from a compact, road-ready system powered by a
2100W Class-D amplifier with built-in DSP.
Featuring a
1.75” neodymium compression driver with a
120° x 40° True Resistive Waveguide, combined with
six 3” full-range neodymium transducers and a
high-power 12” woofer, the EVOX J9 produces crystal-clear highs, detailed mids, and deep, controlled bass. The result is wide, consistent sound coverage with natural musical response in any venue.
Part of the renowned EVOX J Series, this system integrates RCF’s tour-grade technologies such as
FiRPHASE processing for precise imaging and
Bass Motion Control (BMC) for extended low-frequency performance without distortion. The advanced DSP platform ensures optimal system protection, phase coherence, and ultra-low latency.
The sleek composite cabinet, aluminum stand mount, and included padded carrying bag make EVOX J9 ideal for mobile professionals. With
variable height configuration, quick setup, and optional subwoofer integration using
RCF SUB AX ACE presets, the EVOX J9 scales effortlessly from compact gigs to high-energy events.
Whether used for live music, DJ performances, corporate events, or presentations, the
RCF EVOX J9 portable column speaker system delivers outstanding power, clarity, and reliability in a stylish, easy-to-transport design.
Why Choose the RCF EVOX J9?
The EVOX J9 combines
tour-grade RCF engineering, advanced digital processing, and premium transducer design into one of the most powerful and refined portable column systems available. With massive headroom, pristine sound quality, and a fast, tool-free setup, it offers true professional performance without the complexity of traditional PA systems.
This is a
complete, high-output PA solution for users who demand power, clarity, and portability in a single elegant system.
Ideal For
- Professional DJs
- Live bands and performers
- Corporate events and conferences
- Mobile entertainers
- Houses of worship
- Small to medium venues
RCF CVR60767 Protection cover for EVOX J9, EVOX JMIX9 and EVOX J11
RCF CVR60752 – Protection Cover for EVOX J9, JMIX9 & J11
Keep your
RCF EVOX J9, EVOX JMIX9, and EVOX J11 speakers safe with the
RCF CVR60752 Protection Cover. Designed for durability and style, this cover safeguards your portable speakers from
dust, scratches, and minor impacts, making it ideal for transport or storage.
Made from
high-quality, CE-compliant materials, the RCF CVR60752 offers a
perfect fit for your EVOX series speakers while remaining lightweight and easy to carry. Protect your investment and ensure your speakers stay in top condition wherever you go.
StageCore CORE350LU6-BK Male XLR - Female XLR 6M
Female XLR Connector - Male XLR Connector, Professional Audio Cable - Includes Hook & Loop Tie
RCF EVOX J9 Active three way portable array
Acoustical Specifications
- Frequency Response: 40 Hz – 20,000 Hz
- Max SPL @ 1m: 130 dB
- Horizontal Coverage Angle: 120°
- Vertical Coverage Angle: 40°
Transducers
- Compression Driver: 1 x 0.75" Neo, 1.75" voice coil
- Full Range Drivers: 6 x 3.0" Neo, 1.0" voice coil
- Woofer: 1 x 12", 2.5" voice coil
Input/Output Section
- Input Signal: Balanced/Unbalanced
- Input Connectors: Combo XLR/Jack
- Output Connectors: XLR
- Input Sensitivity: -2 dBu / +4 dBu
Processor Section
- Crossover Frequencies: 200 Hz / 1800 Hz
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Controls: Volume, Presets (LINEAR, LIVE, CLUB, VOICE)
Power Section
- Total Power: 2100 W Peak
- High Frequencies Power: 700 W Peak
- Low Frequencies Power: 1400 W Peak
- Cooling: Convection
Connections & Compliance
- Standard Compliance: VDE
- Safety Agency: CE compliant
Physical Specifications
- Cabinet Material: PP Composite
- Handle: 1 Top Handle
- Pole Mount: Quick-fit socket
- Grille: Steel
- Color Options: Black, White (RAL 9003)
Dimensions (H x W x D):
- 2080.1 mm / 81.89 in (Height)
- 350 mm / 13.78 in (Width)
- 462.6 mm / 18.21 in (Depth)
Weight: 28.3 kg / 62.39 lbs
Shipping InformationPackage Dimensions (H x W x D):
- 680 mm / 26.77 in (Height)
- 490 mm / 19.29 in (Width)
- 460 mm / 18.11 in (Depth)
Package Weight: 32 kg / 70.55 lbs
RCF CVR60767 Protection cover for EVOX J9, EVOX JMIX9 and EVOX J11
Compliance / Safety
Physical
- Color: Black
- Height: 590 mm / 23.23 inches
- Width: 410 mm / 16.14 inches
- Depth: 490 mm / 19.29 inches
- Weight: 1.2 kg / 2.65 lbs
Shipping Dimensions
- Height: 80 mm / 3.15 inches
- Width: 600 mm / 23.62 inches
- Depth: 400 mm / 15.75 inches
- Weight: 2.6 kg / 5.73 lbs
StageCore CORE350LU6-BK Male XLR - Female XLR 6M
- Connector A Female XLR
- Connector B Male XLR
- Length 6m
- Colour Black
