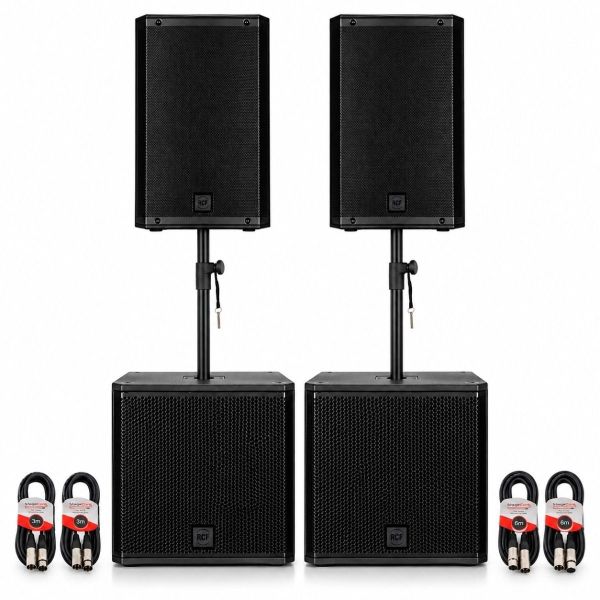

RCF 2x ART 932-A + Twin SUB 15-AX Active PA Package
The RCF ART 932-A + Twin SUB 15-AX Active PA Package combines two 2100W peak 12" professional active speakers with two 2200W peak 15" active subwoofers, professional Ultimax adjustable speaker poles and four StageCore XLR cables. A powerful, DSP-controlled system for professional DJs, live performers, bands and events.
RCF ART 932-A Active Speaker
RCF ART 932-A 12-Inch Active Speaker for Professional Live Sound
Build a flexible PA around the RCF ART 932-A. This active speaker suits DJ playback, live performances and spoken-word events, with options for main PA, stage monitoring and use above a suitable subwoofer.
An Upgraded Compression Driver
The titanium/neodymium compression driver features a 3-inch voice coil and 1.4-inch exit. This is a key distinction within the ART 9 range and makes the ART 932-A worth considering when comparing professional 12-inch speakers.
Dedicated Amplification and Wide Coverage
A 12-inch woofer works with 2100W peak Class-D bi-amplification. The True Resistive Waveguide provides 100° horizontal by 60° vertical coverage, helping you plan speaker placement around the listening area.
FiRPHASE and Bass Motion Control
FiRPHASE processing supports coherent phase response, while Bass Motion Control manages woofer excursion. Together, these technologies help maintain clarity and controlled low-frequency reproduction.
Presets for Different Applications
Choose Linear for general use, Boost for background music at lower levels, or Stage for monitoring. Start with the appropriate preset, then balance your system during soundcheck.
Practical Connections and Handling
A combo XLR/jack input and XLR link output keep connections straightforward. The reinforced composite cabinet includes top and side handles, a steel grille and a 35mm pole socket for suitable speaker support.
Who Is the RCF ART 932-A For?
- Professional mobile DJs: Build a versatile system for music and announcements.
- Live bands and performers: Use it for audience sound or stage monitoring.
- Event organisers: Manage presentations, speeches and music playback.
- Venues: Adapt your speaker layout to different performances.
- Sound providers: Add an upgraded 12-inch option to your equipment inventory.
RCF ART 932-A vs ART 912-A
| Feature | ART 932-A | ART 912-A |
|---|---|---|
| Woofer | 12-inch | 12-inch |
| Compression driver exit | 1.4-inch | 1-inch |
| Compression driver voice coil | 3-inch | 1.75-inch |
| Peak amplifier power | 2100W | 2100W |
| Maximum SPL | 132dB | 130dB |
| Internal crossover | 700Hz | 1800Hz |
| Frequency response | 50Hz–20kHz | 50Hz–20kHz |
| Weight | 19.2kg | 19.5kg |
Choose the ART 932-A when its upgraded compression driver and higher published output suit your requirements. Compare the RCF ART 912-A active speaker as an alternative within the same 12-inch format.
Complete Your RCF ART 932-A Setup
Prepare your speaker support, connections and transport protection before your next event.
- Two-speaker package: View the RCF 2 × ART 932-A with Stands and Cables package.
- Matching protection: Add the RCF CVR ART 912 / 932 protective cover.
- Audio connections: Browse audio cables for suitable mixer, controller and speaker leads.
- Compare the range: Explore the RCF ART 912-A as an alternative 12-inch model.
Explore active speaker packages for complete PA setup options.
For bass-heavy music, consider a suitable active subwoofer. Choose stands and poles with sufficient load capacity for the speaker.
RCF SUB 15-AX
The SUB 15-AX is a portable 15" high-power active subwoofer for live sound applications with fully featured processing, a color touch panel, and remote control via Bluetooth®.The combination of a latest-generation transducer with a powerful Class-D amplifier delivers sound pressure levels up to 133 dB with exceptional clarity and headroom. SUB AX subwoofers are designed specifically for small to mid-sized venues and ideal for portable applications.
SUB 15-AX is the ideal complement for 10" or 12" woofer-size loudspeakers; it centralizes speaker management inside the subwoofer, providing dual crossovers, 8-band EQs, routing, delays, cardioid configurations, and recallable crossover presets. The polyurea-coated all-wood cabinet features a sealed Powercon True1 Top connector.
Ultimax UTX-220BK Adjustable Speaker Pole With M20 Thread
Ultimax UTX 220BK – Adjustable Telescopic Speaker Pole with M20 Thread
The Ultimax UTX 220BK is a professional telescopic speaker pole designed for positioning a compatible full-range PA speaker above a subwoofer equipped with an M20 threaded pole mount.
Ideal for professional mobile DJs, bands, live performers, venues and PA hire applications, the UTX 220BK provides a clean and space-efficient way of positioning your main PA speaker above a compatible subwoofer without requiring a separate tripod speaker stand.
The lower section of the pole uses an M20 threaded connection, allowing it to attach securely to the corresponding M20 mounting point found on many professional active and passive subwoofers.
At the top, the pole provides the mounting point for a compatible full-range PA speaker, creating the familiar subwoofer + pole + top speaker configuration widely used in professional portable PA systems.
Its telescopic design allows the speaker height to be adjusted to suit the PA configuration, audience and venue rather than restricting the top speaker to a single fixed position.
Finished in black, the UTX 220BK maintains a discreet and professional appearance between the subwoofer and full-range speaker.
For anyone building a professional PA system around compatible M20-equipped subwoofers and pole-mountable top speakers, the Ultimax UTX 220BK provides a practical adjustable mounting solution.
Who Is It For?
Users with M20-equipped subwoofers
Users building compact top-and-sub PA systems
Professional PA system owners
Why Choose the Ultimax UTX 220BK?
The UTX 220BK allows a compatible PA speaker to be positioned directly above an M20-equipped subwoofer, reducing the additional floor space required by a conventional tripod speaker stand.
Its telescopic construction provides adjustable speaker positioning, while the professional black finish keeps the overall PA system looking clean and coordinated.
It is particularly useful for mobile applications where space, transportability and professional presentation are important.
M20 Threaded Subwoofer Connection
The Ultimax UTX 220BK features an M20 threaded lower connection designed for use with compatible professional subwoofers.
The threaded pole screws into the corresponding M20 mounting point on the subwoofer, providing a purpose-designed connection between the subwoofer and speaker pole.
Always check the mounting specifications and compatibility of your speaker and subwoofer before installation.
Telescopic Height Adjustment
The UTX 220BK uses a telescopic design, allowing the position of the top speaker to be adjusted to suit the PA system and venue.
Raising the full-range speaker above the subwoofer can help position the high-frequency section more effectively towards the audience while also creating a clean professional PA configuration.
Ideal for Top & Subwoofer PA Systems
The UTX 220BK is particularly useful for systems configured as:
Active Subwoofer → UTX 220BK → Active PA Speaker
It can also be used with compatible passive equipment where the mounting requirements are suitable.
This arrangement uses the subwoofer as the base for the main speaker, reducing the floor space required compared with positioning a separate tripod stand alongside the subwoofer.
Space-Saving Alternative to Tripod Speaker Stands
One of the biggest advantages of an M20 speaker pole is its compact footprint.
Instead of positioning a tripod stand alongside each subwoofer, the full-range speaker can be mounted directly above the subwoofer.
For mobile DJs and performers working in venues where floor space can be limited, this can create a considerably cleaner and more efficient setup.
Professional Black Finish
The UTX 220BK is finished in black to complement professional PA speakers and subwoofers.
Once installed between two black speaker cabinets, the pole remains visually discreet and helps maintain a clean, professional appearance.
The Ultimax UTX 220BK Telescopic M20 Speaker Pole provides a practical and professional way to position a compatible full-range PA speaker directly above an M20-equipped subwoofer.
Its telescopic construction provides adjustable speaker positioning, while the M20 threaded lower connection is designed for use with compatible professional subwoofers.
Using a speaker pole above a subwoofer also reduces the additional floor space required by a conventional tripod speaker stand, making this configuration particularly useful for mobile DJs, bands and event professionals.
Complete Your Professional PA System
Pair the Ultimax UTX 220BK with compatible speakers, subwoofers and complete professional PA packages.
- Active PA Speakers – Explore the professional active PA speakers.
- Active Subwoofers – Explore the professional 15-inch active subwoofer for compatible top-and-subwoofer PA systems.
- Speaker Stands & Poles – Browse professional PA speaker mounting solutions.
StageCore CORE350LU6-BK Male XLR - Female XLR 6M
Female XLR Connector - Male XLR Connector, Professional Audio Cable - Includes Hook & Loop TieStageCore CORE350LU3-BK Male XLR - Female XLR 3M
Female XLR Connector - Male XLR Connector, Professional Audio Cable - Includes Hook & Loop Tie.
RCF ART 932-A Active Speaker
RCF ART 932-A Key Features
- 12-inch woofer with 2.5-inch voice coil.
- Titanium/neodymium compression driver with 3-inch voice coil.
- 2100W peak Class-D bi-amplification.
- Maximum SPL of 132dB at one metre.
- FiRPHASE processing and Bass Motion Control.
- Linear, Boost and Stage presets.
- Combo XLR/jack input and XLR link output.
- Composite cabinet with M-Brace reinforcement.
- Top and side carry handles.
- 35mm pole socket.
RCF SUB 15-AX
- 2200 Watt Class-D Amplifier
- 133 dB MAX SPL
- 15” Woofer, bass reflex housing
- Digital Crossover w/ Presets
- Multi-ply hardwood polyurea-coated
- LiveRemote App
- Dual XLR/TRS combo Input + Link, Dual XLR Xover Out
- Bass Motion Control excursion management
- Powercon True1 Top Sealed AC Connector
Ultimax UTX-220BK Adjustable Speaker Pole With M20 Thread
High-Quality Construction:
The Ultimax UTX-220 Speaker Pole is constructed with precision and durability in mind. It is made from robust materials that can withstand the rigours of the road and the demands of frequent use.
M20 Thread:
The speaker pole features an M20 thread at the bottom, which is a widely accepted industry standard for mounting loudspeakers. This thread ensures a secure and stable connection between the pole and your speaker, minimising the risk of wobbling or accidental disconnection during performances.
Adjustable Height:
This speaker pole is designed with height adjustability in mind. You can easily extend or retract the pole to achieve the desired speaker placement. Whether you need to raise your speaker to reach a larger audience or keep it at ear level for a more intimate setting, this pole provides flexibility.
Safe Load Capacity:
The Ultimax UTX-220 Speaker Pole is engineered to support a substantial load capacity. It can securely hold heavy loudspeakers, making it suitable for a wide range of speakers used in professional audio setups.
Easy to Transport:
The compact and lightweight design of this speaker pole makes it easy to transport to gigs, concerts, or events. It won't add unnecessary bulk to your equipment loadout.
Non-Slip Design:
To ensure stability during use, the speaker pole features a non-slip surface. This prevents your speaker from shifting or sliding during performances, keeping your setup safe and reliable.
Compatibility:
The M20 thread on the Ultimax UTX-220 Speaker Pole is compatible with a variety of professional loudspeakers and subwoofers, making it a versatile choice for audio professionals.
Professional Appearance:
The sleek and professional design of this speaker pole complements the aesthetics of your audio setup, giving your performance area a polished and organised look.
RCF ART 932-A Active Speaker
RCF ART 932-A Technical Specifications
| Speaker type | Two-way active PA speaker |
|---|---|
| Woofer | 12-inch; 2.5-inch voice coil |
| Compression driver | Titanium/neodymium; 1.4-inch exit; 3-inch voice coil |
| Amplifier | Class-D bi-amplification |
| Total amplifier power | 2100W peak / 1050W RMS |
| LF amplifier power | 1400W peak / 700W RMS |
| HF amplifier power | 700W peak / 350W RMS |
| Maximum SPL at 1m | 132dB |
| Frequency response | 50Hz–20kHz |
| Coverage (H × V) | 100° × 60° |
| Internal crossover frequency | 700Hz |
| Input | Combo XLR / 6.35mm jack |
| Signal output | XLR link |
| Input sensitivity | -2dBu / +4dBu |
| Presets | Linear, Boost, Stage |
| Protection | Thermal and RMS protection; soft limiter |
| Cooling | Convection |
| Cabinet | Polypropylene composite with M-Brace reinforcement |
| Grille | Steel |
| Pole socket | 35mm |
| Mounting points | Three M10: one top and one on each side |
| Handles | One top and two side handles |
| Dimensions (H × W × D) | 642 × 370 × 363mm |
| Weight | 19.2kg |
RCF SUB 15-AX
- Frequency Response: 35 Hz ÷ 120 Hz
- Max SPL @ 1m: 133 dB
- Woofer: 15'', 3.0'' v.c
- Input signal: bal/unbal
- Input connectors: Combo XLR/Jack
- Output connectors: XLR
- Input sensitivity: -2 dBu/+4 dBu
- Protections: Thermal
- Limiter: Soft Limiter
- Controls: Encoder for Volume control and data entry. Touch Screen for parameter management and monitor.
- Total Power: 2200 W Peak, 1100 W RMS
- Cooling: Convection
- Connections: Powercon TRUE1 TOP IN/OUT
- Safety agency: CE compliant
- Handles: 1 handle per side
- Pole mount/Cap: Yes
- Colour: Black
- Height: 590 mm / 23.23 inches
- Width: 420 mm / 16.54 inches
- Depth: 590 mm / 23.23 inches
- Weight: 26 kg / 57.32 lbs
Ultimax UTX-220BK Adjustable Speaker Pole With M20 Thread
Ultimax UTX 220BK Speaker Pole Specifications
| Specification | Details |
|---|---|
| Product Type | Telescopic Speaker Pole |
| Brand | Ultimax |
| Model | UTX 220BK |
| Design | Telescopic / Adjustable |
| Lower Connection | M20 Thread |
| Application | Mounting Compatible PA Speakers Above Subwoofers |
| Colour | Black |
| Manufacturer SKU | 39330 |
StageCore CORE350LU6-BK Male XLR - Female XLR 6M
- Connector A Female XLR
- Connector B Male XLR
- Length 6m
- Colour Black
StageCore CORE350LU3-BK Male XLR - Female XLR 3M
- Connector A Female XLR
- Connector B Male XLR
- Length 3m
- Colour Black
