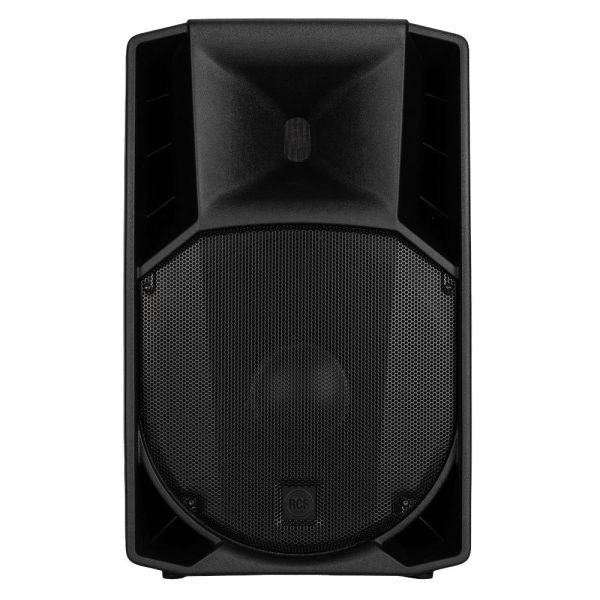

ART 735-A MK5 is a unique product in its category.

The 3,0" compression driver offers unique vocal clarity and sound projection. The 15” woofer offers an extremely linear response and a precise, deep low frequency control.

The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.

132 dB Max SPL

1400 WATT 2-way peak power

90° x 60°, Wide dispersion constant directivity horn

Innovative DSP Processing

3,0" Titanium diaphragm Compression Driver

15" Woofer

FiRPHASE Technology

XBOOST Low Frequencies Enhancer

Frequency Response: 45 Hz ÷ 20000 Hz

Max SPL @ 1m: 132 dB

Horizontal coverage angle: 90°

Vertical coverage angle: 60°

Compression Driver: 1 x 1.0'' neo, 3.0'' v.c

Woofer: 15'', 3.0'' v.c

Input signal: bal/unbal

Input connectors: XLR, Jack

Output connectors: XLR

Input sensitivity: -2 dBu/+4 dBu

Mic. Input Sensitivity: -32 dBu

Crossover Frequencies: 800

Protections: Thermal, RMS

Limiter: Soft Limiter

Controls: Volume, Boost, MIC/Line

Total Power: 1400 W Peak

High frequencies: 400 W Peak

Low frequencies: 1000 W Peak

Cooling: Convection

Connections: VDE

Safety agency: CE compliant

Hardware: 2 x M10

Handles: 1 on top

Pole mount/Cap: Yes

Colour: Black

Height: 708 mm / 27.87 inches

Width: 437 mm / 17.2 inches

Depth: 389 mm / 15.31 inches

Weight: 21.4 kg / 47.18 lbs

1 Year Warranty
