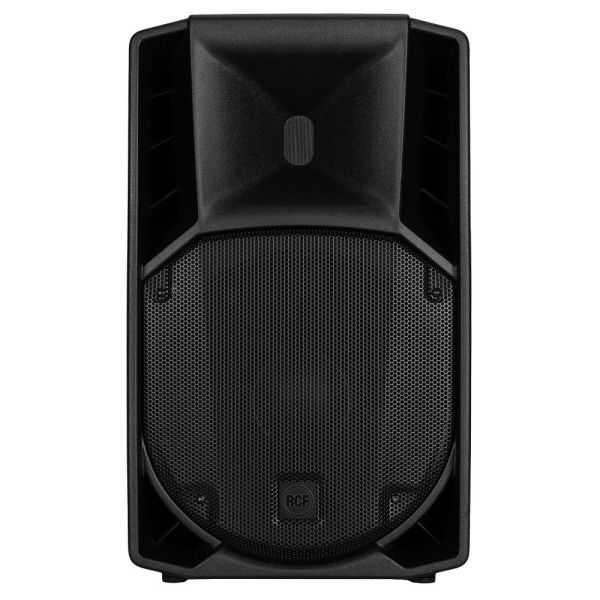

ART 712-A MK5 is a unique product in its category.

The 1.75" compression driver offers unique vocal clarity and sound projection. The 12” woofer offers an extremely linear response and a precise, deep low frequency control.

The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.

129 dB Max SPL

1400 WATT 2-way peak power

90° x 60°, Wide dispersion constant directivity horn

Innovative DSP Processing

1,75" Compression Driver

12" Woofer

FiRPHASE Technology

XBOOST Low Frequencies Enhancer

Frequency Response: 50 Hz ÷ 20000 Hz

Max SPL @ 1m: 129 dB

Horizontal coverage angle: 90°

Vertical coverage angle: 60°

Compression Driver: 1 x 1.0'', 1.75'' v.c

Woofer: 12'', 2.5'' v.c

Input signal: bal/unbal

Input connectors: XLR, Jack

Output connectors: XLR

Input sensitivity: -2 dBu/+4 dBu

Mic. Input Sensitivity: -32 dBu

Crossover Frequencies: 1600

Protections: Thermal, RMS

Limiter: Soft Limiter

Controls: Volume, Boost, MIC/Line

Total Power: 1400 W Peak

High frequencies: 400 W Peak

Low frequencies: 1000 W Peak

Cooling: Convection

Connections: VDE

Safety agency: CE compliant

Hardware: 2 x M10

Handles: 1 on top

Pole mount/Cap: Yes

Colour: Black

Height: 637 mm / 25.08 inches

Width: 387 mm / 15.24 inches

Depth: 363 mm / 14.29 inches

Weight: 17.8 kg / 39.24 lbs

1 Year Warranty
