| Digital Audio |
Converters: Cirrus Logic, 24-bit PCM, 44.1 kHz |
| |
Digital Signal Processing: 32-bit, Floating Point, Double Precision |
| Audio Outputs |
Main Output (XLR, RCA stereo pair) |
| |
DAC: 24-bit |
| |
Dynamic Range: 117 dB |
| |
Output Type: Balanced XLR |
| |
Max Output Level (XLR): 8 Vrms |
| |
Max Output Level (RCA): 4 Vrms |
| |
Frequency Response: 20 Hz–20 kHz: +0, -1 dB |
| |
THD+N: 0.002% @ 1 kHz, 4 Vrms |
| |
Channel Separation: > 80 dB |
| |
Input Gain Trim Range: Off to +12 dB |
| |
Output Level Range: Off to 0 dB |
| Booth Output (1/4” TRS) |
DAC: 24-bit |
| |
Dynamic Range: 117 dB |
| |
Output Type: Balanced TRS |
| |
Max Output Level: 8 Vrms |
| |
Frequency Response: 20 Hz – 20 kHz: +0, -1 dB |
| |
THD+N: 0.002% @ 1 kHz, 4 Vrms |
| |
Channel Separation: > 80 dB |
| |
Input Gain Trim Range: Off to +12 dB |
| |
Output Level Range: Off to 0 dB |
| Headphone Output (1/4” & 1/8” TRS) |
DAC: 24-bit |
| |
Dynamic Range: 117 dB |
| |
Output Type: Stereo TRS (1/8” and 1/4” jacks) |
| |
Cue Features: Cue / Split Cue |
| |
Max Output Level (No Load): 4 Vrms |
| |
Max Power Output @ 50 Ω: 150 mW |
| |
Frequency Response: 20 Hz – 20 kHz: +0, -1 dB |
| |
THD+N @ 1 kHz, 4 Vrms (No Load): 0.002% |
| |
THD+N @ 1 kHz, Full Power @ 50 Ω: 0.08% |
| |
Channel Separation: > 80 dB |
| |
Level Control Range: Off to 0 dB |
| Inputs (Combo XLR/1/4” TRS) |
ADC: 24-bit, 115 dB DR |
| |
Input Type: Balanced XLR/TRS combo |
| |
Max Input Level: 110 mV |
| |
Analog Gain: 25 dB |
| |
Max System Gain: 60 dB |
| |
Frequency Response @ 20 Hz: -2.5 dB |
| |
Frequency Response @ 20 kHz: -5 dB |
| |
THD+N @ 0.1 Vin, Gain = 25 dB: 0.015% (100 Hz–20 kHz) |
| |
DR (A-weighted), Gain = 25 dB: 102 dB |
| |
DR (A-weighted), Gain = 60 dB: 72 dB |
| |
IRN (A-weighted), Gain = 60 dB: -132 dB |
| |
IRN (20 Hz–20 kHz), Gain = 60 dB: -130 dB |
| Auxiliary Input (RCA stereo) |
ADC: 24-bit, 115 dB DR (A-weighted) |
| |
Input Type: Unbalanced RCA |
| |
Max Input Level: 4 Vrms |
| |
Frequency Response: 20 Hz – 20 kHz: +0, -1 dB |
| |
THD+N @ 3 Vrms, Unity Gain: 0.005% (20 Hz–20 kHz) |
| |
Gain Range: Off to +12 dB |
| |
DR (A-weighted), Unity Gain: 108 dB |
| |
Crosstalk: ≤ -90 dB |

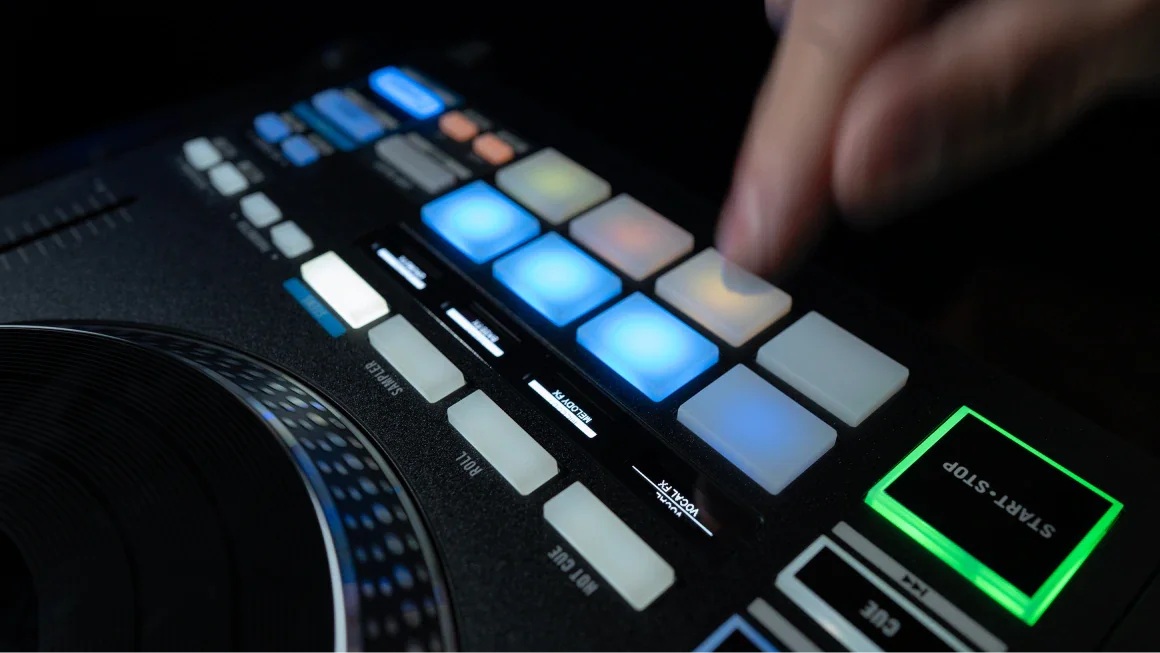

| Performance Pads |
Pads: 16 total, on/off multi-color back-lit (8 per deck) |
| Faders |
Channel Faders: 2 PRECISION FEEL tension-adjustable with contour and reverse |
| |
Crossfader: 1 MAG FOUR tension-adjustable with contour and reverse |
| Displays |
Main Display: 7" full-color LED-backlit touchscreen |
| |
Pad Displays: (8) 128 x 32 monochrome OLEDs |
| CPU |
Processor: Quad-core ARM® |
| |
RAM: 4 GB |
| Wi-Fi & Bluetooth |
Wi-Fi: 2.4GHz/5GHz, 802.11a/b/g/n/ac, Wi-Fi 5 |
| |
Bluetooth: v5.4 |
| Supported Media |
File Systems: exFAT (recommended), FAT32 |
| |
Playable Formats: AAC/M4A, AIF/AIFF, ALAC, FLAC, MP3 (32–320 kbps), MP4, Ogg Vorbis, WAV |
| |
Streaming Services: Amazon Music Unlimited, Apple Music, Beatport, Beatsource, SoundCloud Go+, TIDAL |
| Lighting |
Onboard Smart Lighting: Philips Hue, Nanoleaf |
| |
Supported DMX: SoundSwitch DMX Micro, SoundSwitch Control One |
| Power |
Input Type: Locking IEC |
| |
Input Voltage: 100–240 VAC |
| |
Frequency: 50/60 Hz |
| |
Power Consumption: 150 W |
| General |
Dimensions (W x D x H): 29.00 x 15.87 x 5.70 in (73.66 x 40.30 x 14.47 cm) |
| |
Weight: 29.4 lbs (13.33 kg) |
| Connections |
Inputs: 2 XLR + 1/4" combo mic inputs, RCA Aux Stereo Pair |
| |
Outputs: 2 XLR Main, RCA Main, 2 1/4" TRS Booth Outputs |
| |
Headphones: 1/4" Stereo Jack, 3.5-mm Stereo Mini-Jack |
| |
Media Inputs: 4 USB ports (Type-A and Type-C), SD, SDHC, SDXC, internal HD slot (not included) |
