High performance, superior quality and lasting reliability. These are the hallmarks of the QSC brand and the reason why millions of professionals the world-over have come to trust QSC to help them confidently deliver superior experiences and memorable performances.

The CP Series follows in that same tradition while also offering an ultra-compact form factor and class-leading value.

Compact and powerful performance

1000 Watt peak power Class-D amplifier module

Easily selected contours for commonly-used applications

Advanced DSP with Intrinsic Correction™ for superior sound quality and speaker protection

Directivity Matched Transition® (DMT) for consistent frequency response across the entire coverage area

Light weight and highly portable

Professional appearance looks great in any application

Use for main PA, stage monitor, or instrument amplifier

35 mm pole socket

Optional yoke, tote, and outdoor cover accessories

Complete EASE and CAD information available online

6-Year Warranty*

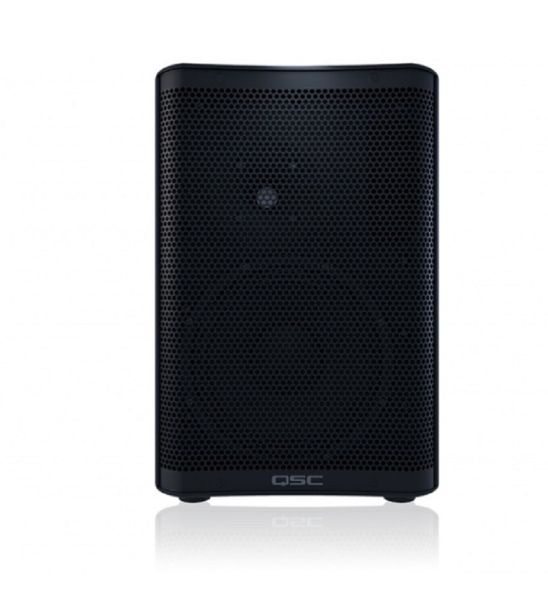

Model: CP8
Configuration: Two-way active loudspeaker
LF Transducer: 203 mm (8 in) , cone
HF Transducer: 35.6 mm (1.4 in) compression driver
Frequency Response (-6 dB): 56 - 20 kHz
Frequency Range (-10 dB): 53 - 20 kHz
Nominal Coverage Angle: 90° Axisymetric
Maximum Rated SPL1: 124 dB
Amplifier:
- Class D
- Peak: 800 W (LF), 200 W (HF)
Controls:
- Power
- 2 x Gain
- Mic Boost Push Switch
- 6-way Contour Selection Switch
Indicators:
- Power LED
- 2 × Input Signal LED
- Input B MIC selected LED
- Limiter active LED
Connectors:
- 2 × locking XLR/F ¼” combo (Line Input and Mic/Line input)
- 1 × 3.5 mm TRS (Stereo Input)
- 1 × XLR/M (Mix Output)
- 1 × IEC power connector
AC Power Input:
- Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption (1/8th Power):
- 100 VAC, 0.75A - 240VAC 0.31A
Enclosure Material: Polypropylene
Attachment Points: M8 threaded insert
Colour: Black (RAL 9011)
Grille: 18 Gauge powder-coated steel
Speaker Dimensions (H×W×D):
- 411 × 273 × 256 mm
- 16.2 × 10.7 × 10.1 in
Net Weight: 9.5 kg / 21.0 lb
Regulatory: EMC, UL, CB
Optional Accessories:
CP8 Tote, CP8 Outdoor Cover, CP8 Yoke

5 Year Warranty
