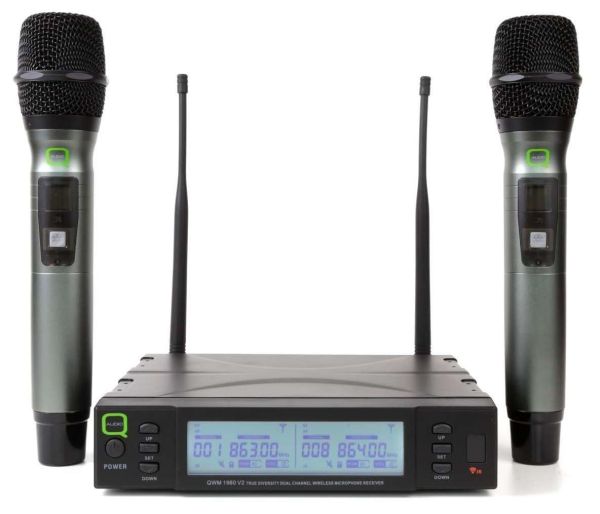

Q-Audio QWM-1960 V2 HH Dual Channel True Diversity UHF Wireless System CH38
Twin Handheld Radio Mic System On Channel 38 (606-614 MHz)
Q-Audio QWM 1960 HH UHF Dual Channel True Diversity Handheld Wireless Microphone System Channel 38 (606-614 MHz).
The QWM-1960 HH is a UHF dual channel true diversity handheld wireless microphone system which comes complete with a Multi-channel UHF PLL receiver and 2 mic transmitters with large backlit display which features multiple status indicators.
The receiver features ACT infrared pairing of mics to receiver, 2 x balanced XLR outputs, 1 x unbalanced 6.35mm jack mixed output.
The QWM1960 HH System includes receiver, 2 x mics, batteries, PSU and audio cable.
With high efficiency battery consumption design and 2 x adjustable/removable high gain antenna, two QWM1960 systems can be connected together for 19 inch rackmount making this great for musicals & theatre, street performers, and schools & colleges
The QWM1940 HH has a working distance of up to 50 meters and a continuous usage of 5 hours.
Frequency range: UHF 606-614MHz (Channel 38)
Frequency stabilisation: <±30ppm
Dynamic range: >90dB
Total harmonic distortion：<0.5%
Frequency response: 40Hz-15Hz±3dB
Audio output level: 400mV unbalanced/balanced
Signal to noise ratio: >90dB
Image and spurious rejection: >80dB
Border upon channel rejection: >80dB
Receiving sensitivity: 5dBuV
De-emphasis: 75uS
Power supply DC 17V/300mA
Power consumption: 5w
Receiver dimensions: 210 x 185 x 45mm (WxDxH)
Transmitter power: 10mW (max)
Modulation type: FM
Max deviation: ±25KHz
Spurious emission: >40dB
Mic dimensions: 55 x 55 x 260mm (WxDxH)
Mic battery voltage: 3V (2 x 1.5V AA batteries)
