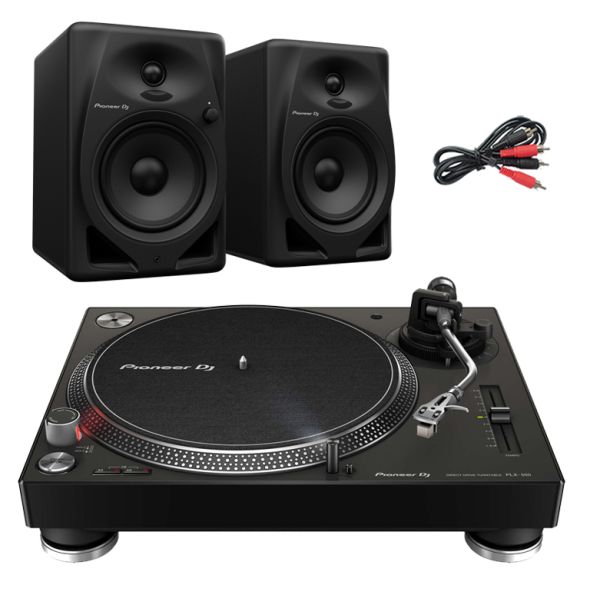

Pioneer DJ PLX-500-K Direct Drive USB Turntable (Black)
The Pioneer PLX-500 USB direct drive turntable is designed to produce a warm, clear, high quality analogue sound. The perfect high-torque direct drive turntable to start playing vinyl.
The PLX-500 direct drive USB Turntable is solidly built with excellent vibration damping and precise audio playback, the PLX-500 features a USB output so you can make digital recordings of your vinyl collection on either a PC or Mac with the free rekordbox software. You can also combine the PLX-500 with the rekordbox dvs Plus Pack, a compatible mixer and the RB-VS1-K Control Vinyl to mix all your digital music files.
Included accessories
Power cord
Audio cable
Ground wire
Adapter for EP record
Turntable sheet
Slip mat and sheet
Dust cover
Head shell
Balance, sub and shell weights
Operating instructions

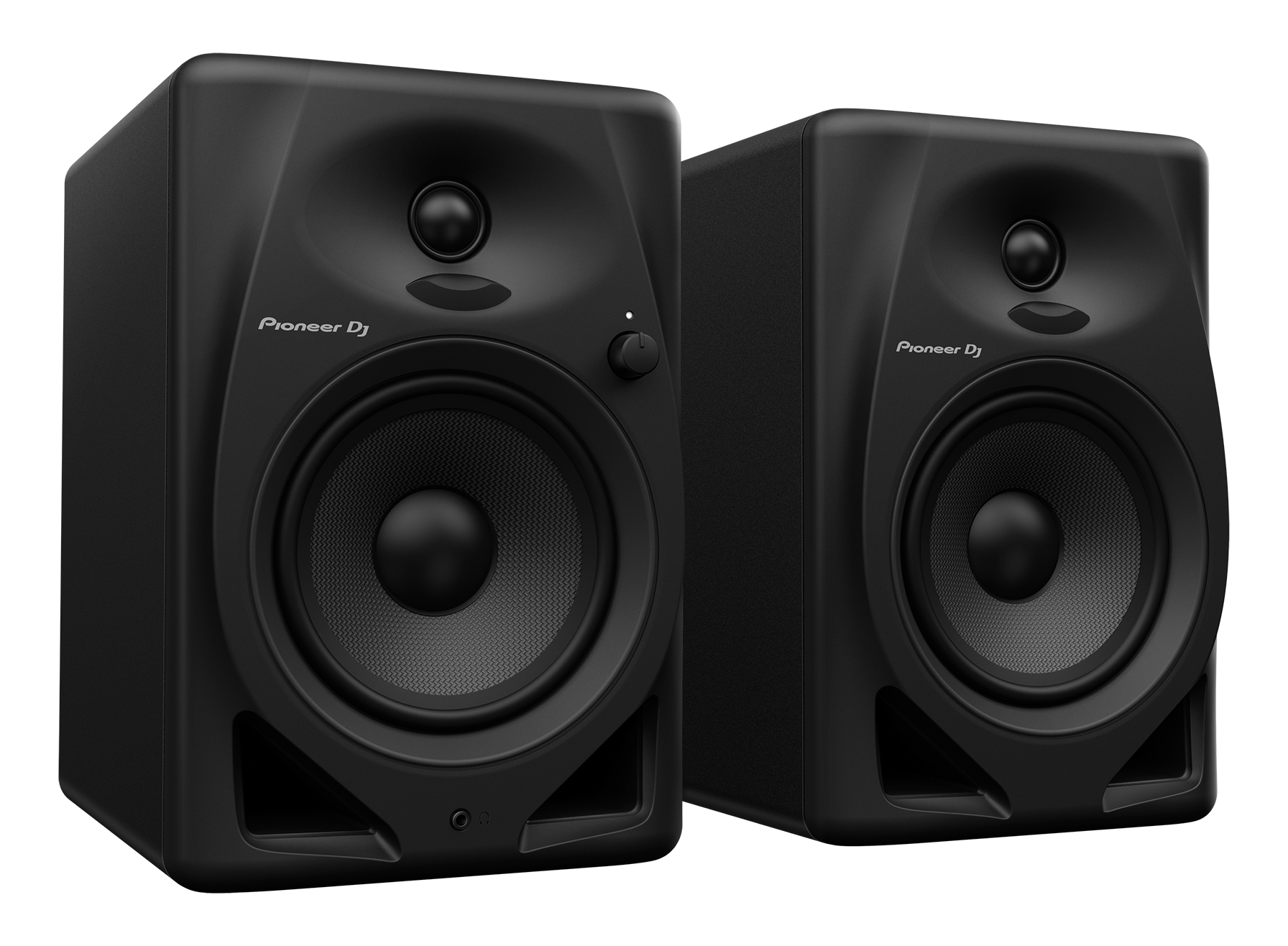

Pioneer DJ DM-50D 5" Desktop Monitor System (Pair)
Pioneer DM-50D 5-Inch Desktop Monitor System – DJ & Production Speakers
Powerful Desktop Monitoring for DJs & Producers
The Pioneer DM-50D 5-inch Desktop Monitor System delivers clear, balanced sound with powerful bass, making it ideal for DJs, music producers, and home studio setups. Featuring a Class D amplifier with 96kHz DSP processing, these compact monitors produce accurate audio with punchy low frequencies and detailed highs.
Switch effortlessly between DJ Mode and Production Mode to optimise the speakers’ DSP settings for mixing, beatmatching, or music production.
Optimised Sound for DJing & Music Production
The 2-way sound mode allows you to tailor the speakers to your workflow.
DJ Mode: Enhances bass and energy for mixing and performance.
Production Mode: Delivers a more neutral response ideal for music production and studio monitoring.
Simply flick the switch on the rear panel and the internal DSP adjusts automatically.
Flexible Connectivity for DJs & Studios
The DM-50D monitors are designed to connect easily with a wide range of DJ and production equipment.
Inputs include: TRS (balanced), RCA, Mini-jack. This makes them ideal for use with: DJ controllers and mixers, audio interfaces, laptops and soundcards, home studio setups.
A front-panel headphone socket and volume knob allow quick adjustments while mixing.
Pioneer DJ PLX-500-K Direct Drive USB Turntable (Black)
EXCELLENT SOUND DESIGN
Just like the PLX-1000, the PLX-500 is built to produce a high-quality vinyl sound. The shortest possible audio routing from the stylus to the outputs reduces distortion, while the phone/line output switch lets you connect directly to your sound system or to powered speakers with no need for an external amplifier.
EASY DIGITAL RECORDING
Record your vinyl collection to high-quality digital files by simply connecting the turntable to your PC or Mac via the USB out.
SMOOTH DJ PLAY
Use the PLX-500 to mix and scratch your vinyl records or combine the turntable with rekordbox dvs, a compatible DJ mixer and the RB-VS1-K Control Vinyl to play and perform with your digital files.
COVER ART DISPLAY
Put your record covers on display while listening to your vinyl thanks to the sleeve stand inside the dust cover.
Pioneer DJ DM-50D 5" Desktop Monitor System (Pair)

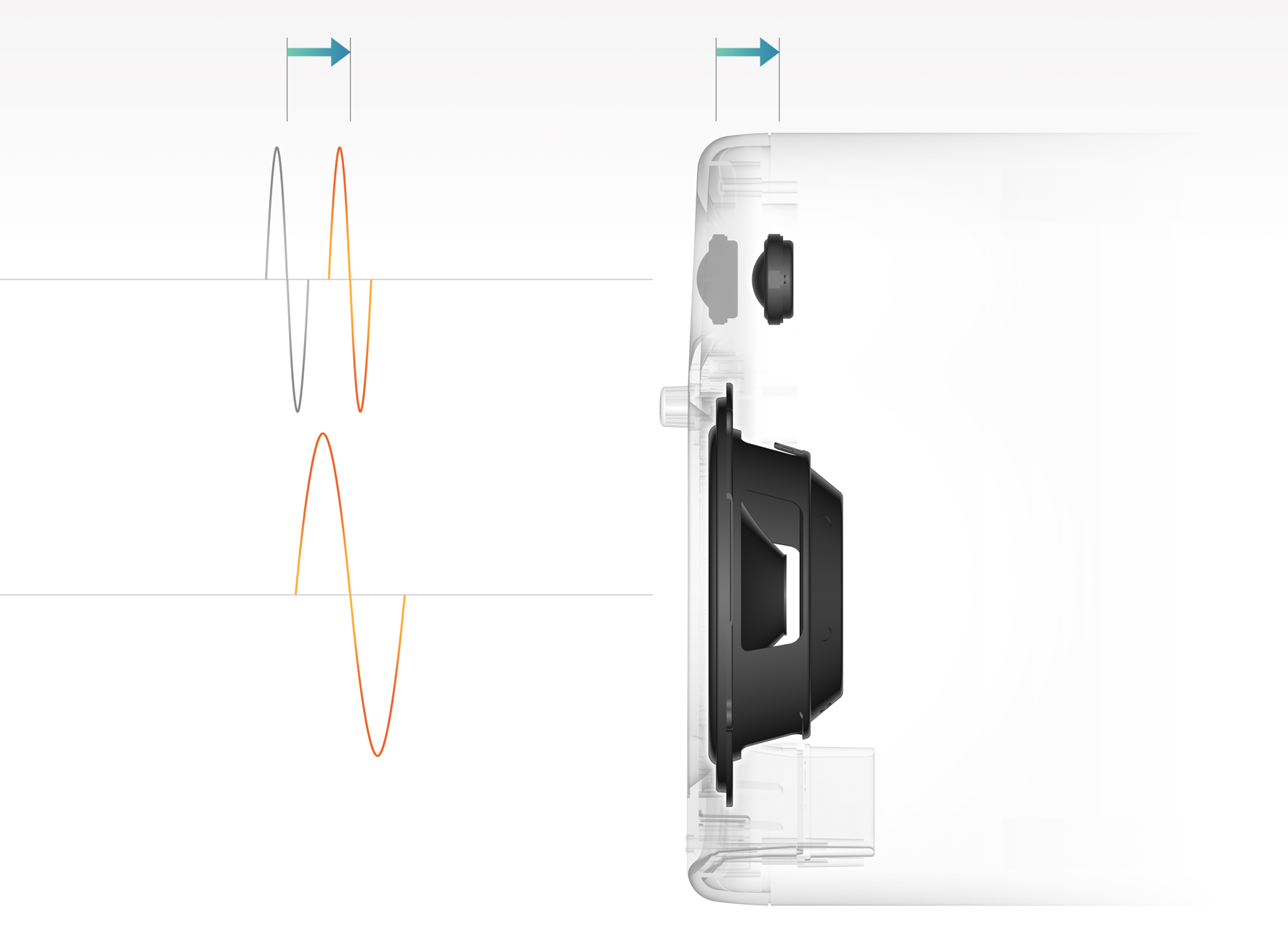

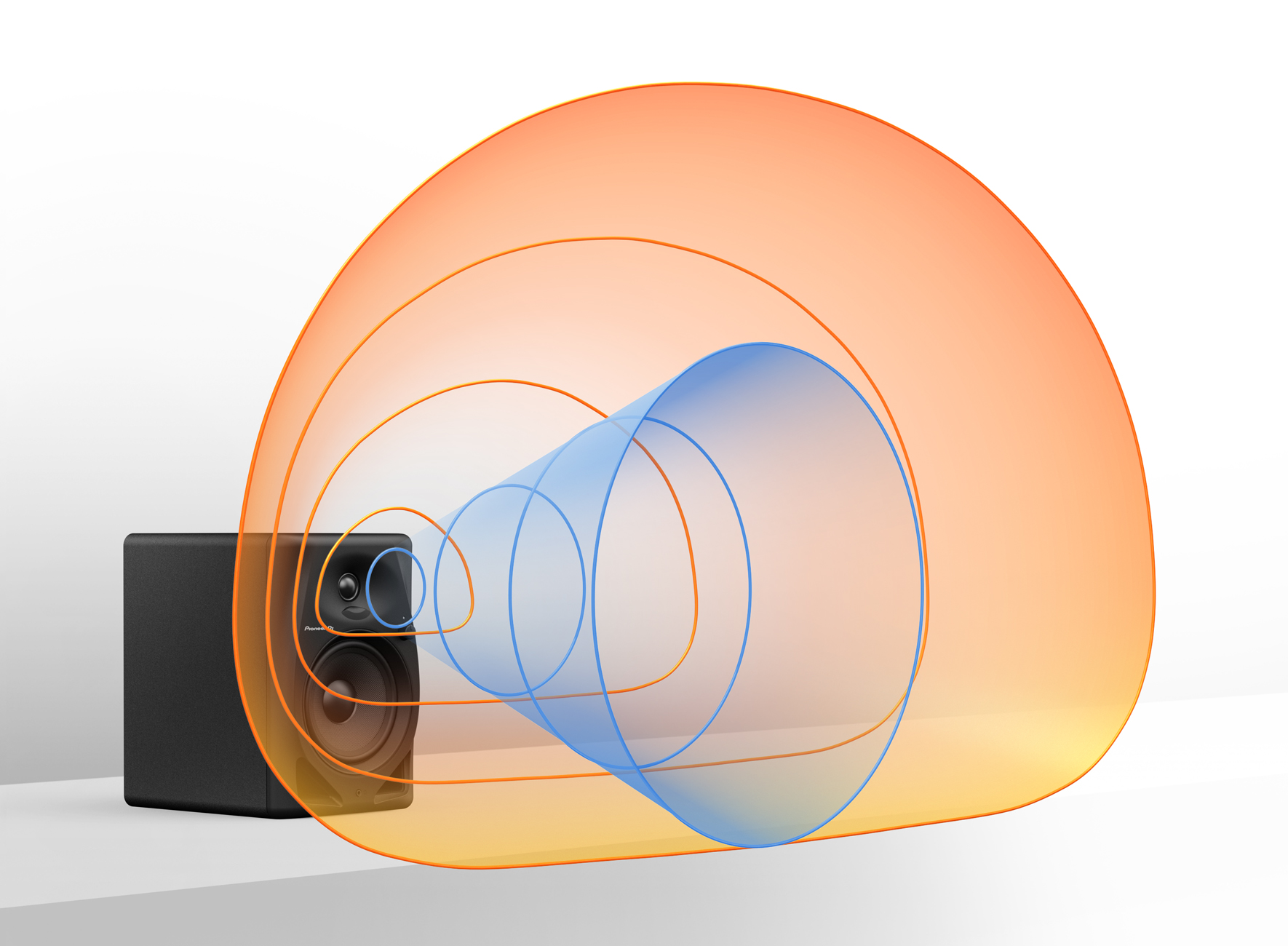

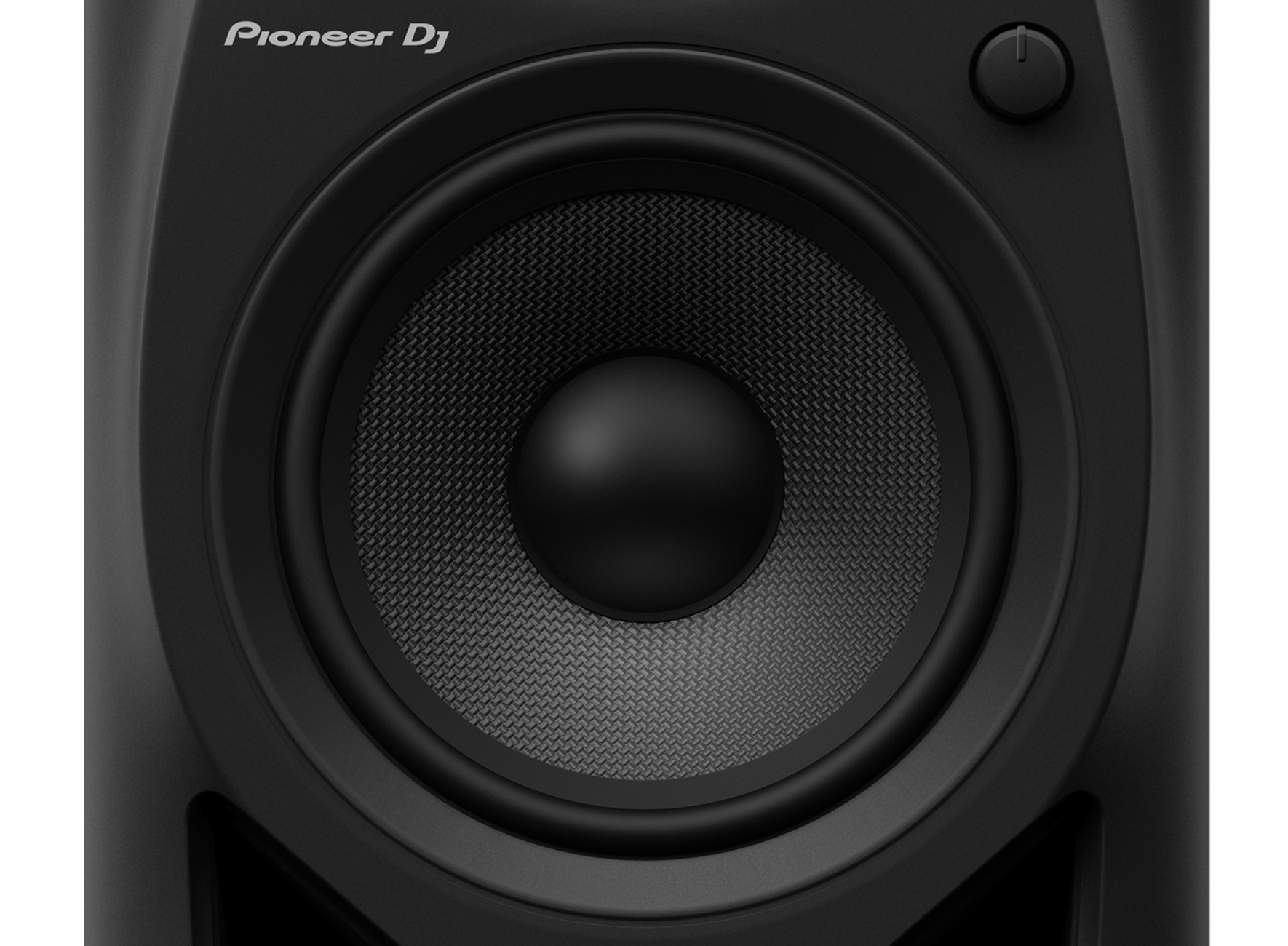

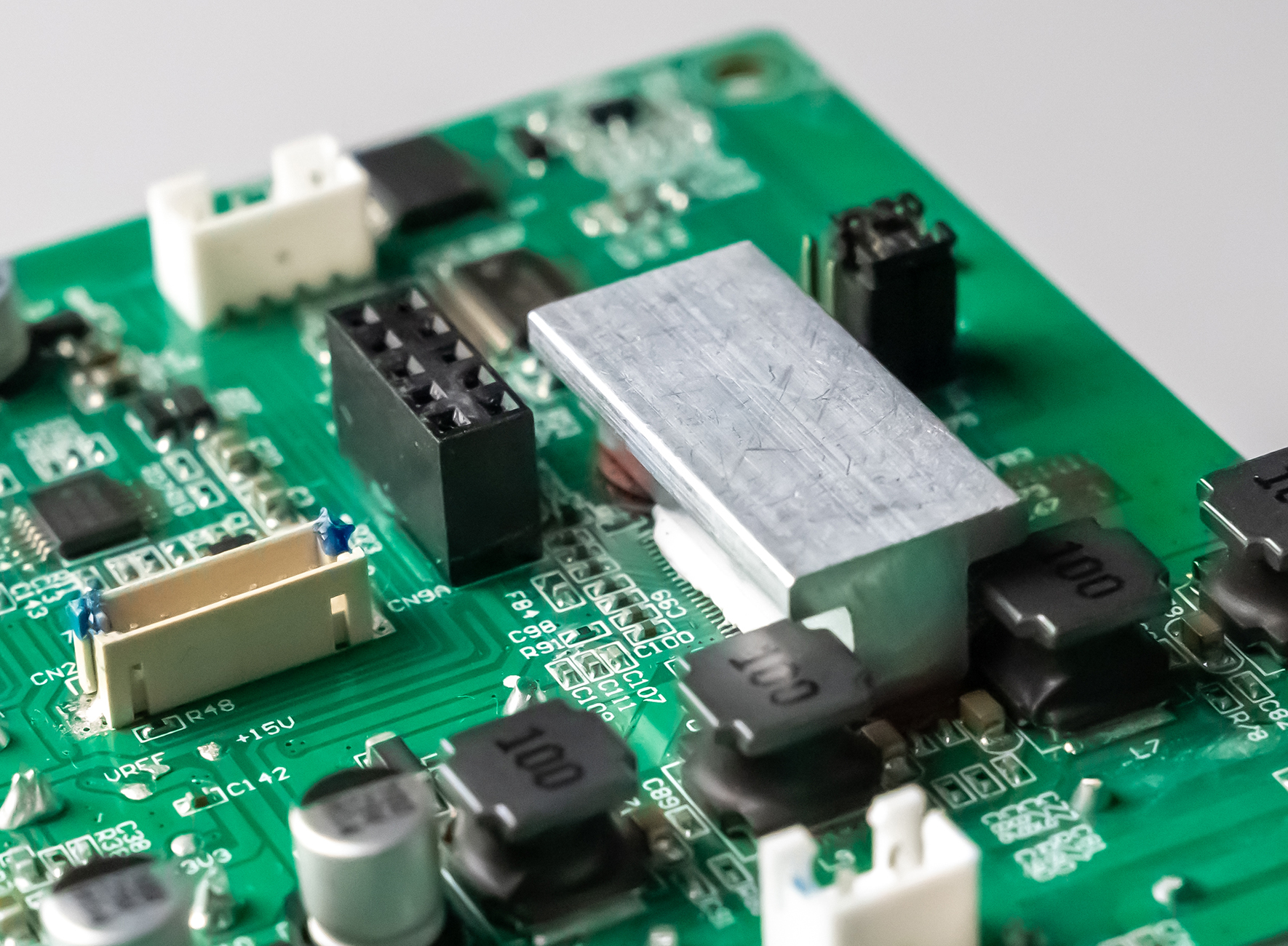

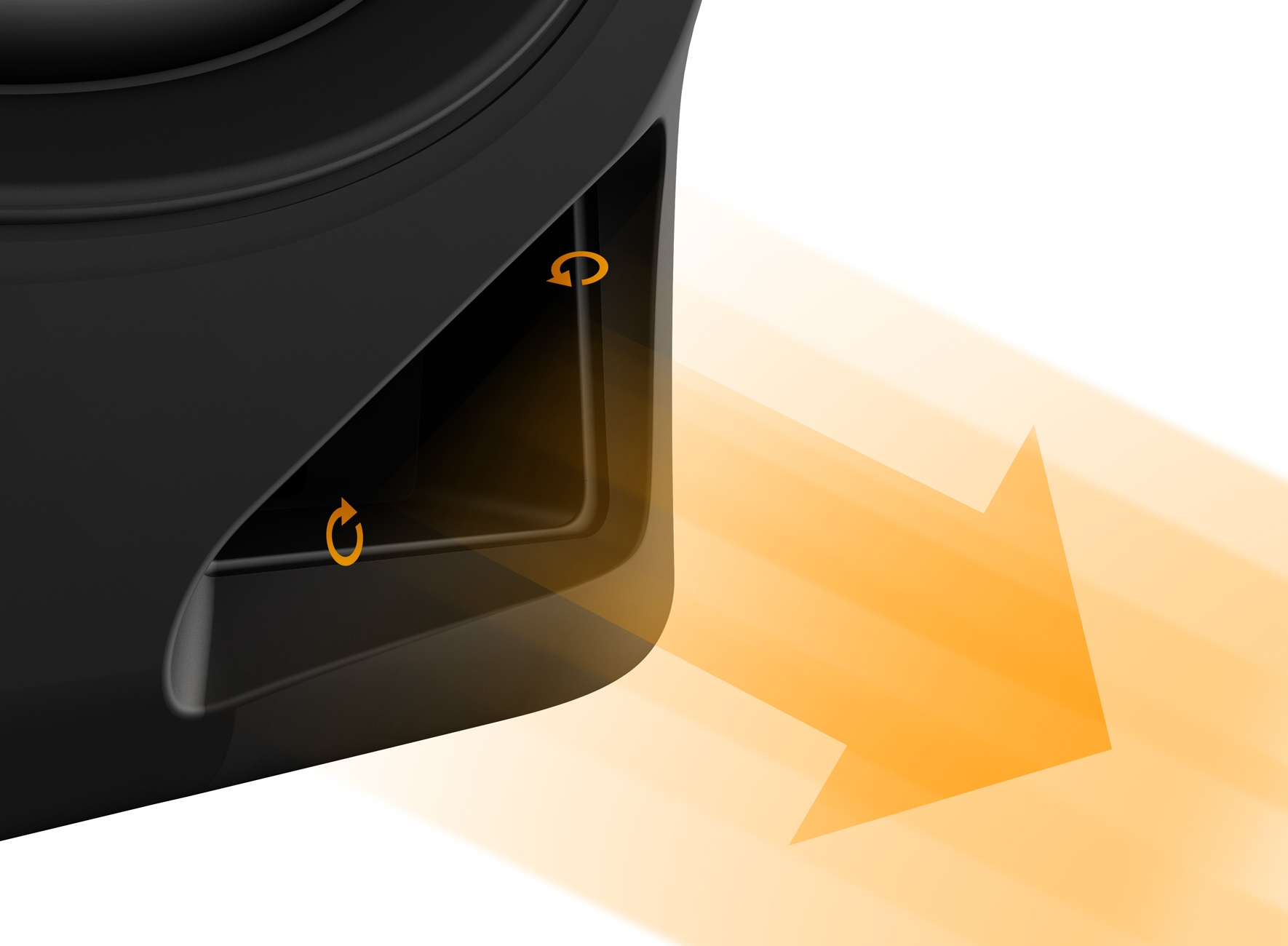

Advanced design for higher quality soundEach DM-50D speaker produces pure, balanced bass sound, thanks to a new Class D amplifier with 96 kHz sampling DSP. Another advancement from the DM-40 model comes in the updated design of the DECO convex diffusers which help deliver crystal-clear high frequencies in every direction, so you can enjoy a wide sweet spot and 3D stereo sound wherever you are in the room. When you need to turn up the volume, the new 5-inch woofer creates extra power and itÔÇÖs perfectly aligned with the tweeter so youÔÇÖll hear all sound frequencies clearly. The grooves on the ducts reduce air friction so that bass is tight and punchy, even if you position the speakers against a wall. Plus, the curved front edges provide maximum rigidity and minimum resonance for clean audio at any volume level.
2-way sound mode optimized for DJing and music productionThereÔÇÖs no need to decide whether you want a set of monitors that are best for DJing or making music, because the DM-50D speakers are perfect for both. Just flip the switch to choose either DJ mode or Production mode and the DSP settings will be optimized for the task, leaving you free to concentrate on your mix.
Easy to use with different DJ or production equipmentWith RCA, mini jack, and the newly added TRS input terminals, you can connect different kinds of gear such as DJ controllers and mixers, or the laptop or soundcard you use for producing your own music. Connecting and disconnecting your headphones is simple via the socket on the front panel of the DM-50D. ThereÔÇÖs no need to reach around the back of the speakers to adjust the volume either, as the level knob is also right in front of you.
Pioneer DJ PLX-500-K Direct Drive USB Turntable (Black)
Drive Method - Servo-type direct drive
Platter - Aluminium, die-casting diameter: 332 mm
Motor - 3-phase, brushless DC motor
Braking System - Electronic brake
Rotation Speed - 33, 45, 78 rpm
Rotation Adjustment Range - 8 %
Wow and Flutter - < 0.15% WRMS
Signal-to-Noise Ratio - 50 dB
Starting Torque - > 1.6 kgcm
Start Time - Within 1 sec (at 33 rpm)
Tone Arm:
Arm Type - Universal type S-shape tone arm, Gimbal-supported type bearing structure, Static balance type
Overhang - 16 mm
Effective Length - 230.5 mm
Tracking Error - Within 3
Height Adjustment Range - 6 mm
Stylus Pressure Variable Range - 0-4 g (1 scale 0.1 g)
Proper Cartridge Weight - 9.5 g
Cartridge type - VM
Outputs - 1 PHONO/LINE (RCA)
USB - 1 USB B port
Dimensions:
Width 450 mm
Height 159 mm
Depth 368 mm
Weight 10.7 kg
Pioneer DJ DM-50D 5" Desktop Monitor System (Pair)
Type
|
2-way bass reflex, active monitor speakers |
Tweeter
|
3/4” (19 mm) soft dome |
Woofer
|
5" (127 mm) fiberglass cones |
Accessories
|
- DM-50D
- Power cord
- Audio converter cable (3.5 mm stereo mini plug to RCA)
- Speaker cord
- Bottom cushion
- Quick Start Guide
- Precautions for Use
- Warranty
|
Dimensions (W x H x D)
|
- Lch: 175 x 262 x 257 mm / 6.89” x 10.32” x 10.12”
- Rch: 175 x 262 x 247 mm / 6.89” x 10.32” x 9.72”
|
Weight
|
- Lch: 3.9 kg / 8.6 lbs.
- Rch: 3.5 kg / 7.7 lbs.
|
Amplifier Output
|
- Class D with DSP
- Lch: 25 W / 4 Ω
- Rch: 25 W / 4 Ω
|
Impedance
|
10 kΩ |
Power Supply
|
AC 100-240 V, 50 Hz / 60Hz |
Enclosure
|
Bass reflex |
Enclosure material
|
MDF vinyl laminate |
Power Consumption
|
25 W |
Power consumption during standby mode
|
0.3 W or less |
Inputs
|
- 1/4” TRS jack x 1 (balanced input)
- RCA pin jack x 1 (unbalanced input)
- 3.5 mm stereo mini jack x 1 (Unbalanced input)
|
Outputs
|
3.5 mm stereo mini jack x 1 |
* The specifications and design of this product are subject to change without notice.
