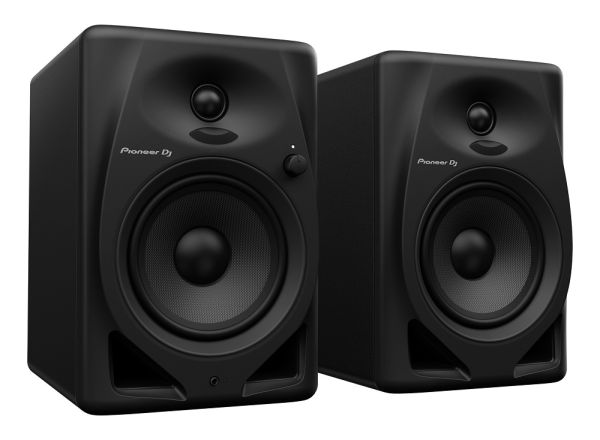

Pioneer DM-50D 5-Inch Desktop Monitor System – DJ & Production Speakers
Powerful Desktop Monitoring for DJs & Producers
The Pioneer DM-50D 5-inch Desktop Monitor System delivers clear, balanced sound with powerful bass, making it ideal for DJs, music producers, and home studio setups. Featuring a Class D amplifier with 96kHz DSP processing, these compact monitors produce accurate audio with punchy low frequencies and detailed highs.
Switch effortlessly between DJ Mode and Production Mode to optimise the speakers’ DSP settings for mixing, beatmatching, or music production.
Optimised Sound for DJing & Music Production
The 2-way sound mode allows you to tailor the speakers to your workflow.
DJ Mode: Enhances bass and energy for mixing and performance.
Production Mode: Delivers a more neutral response ideal for music production and studio monitoring.
Simply flick the switch on the rear panel and the internal DSP adjusts automatically.
Flexible Connectivity for DJs & Studios
The DM-50D monitors are designed to connect easily with a wide range of DJ and production equipment.
Inputs include: TRS (balanced), RCA, Mini-jack. This makes them ideal for use with: DJ controllers and mixers, audio interfaces, laptops and soundcards, home studio setups.
A front-panel headphone socket and volume knob allow quick adjustments while mixing.
Advanced design for higher quality sound
Each DM-50D speaker produces pure, balanced bass sound, thanks to a new Class D amplifier with 96 kHz sampling DSP. Another advancement from the DM-40 model comes in the updated design of the DECO convex diffusers which help deliver crystal-clear high frequencies in every direction, so you can enjoy a wide sweet spot and 3D stereo sound wherever you are in the room. When you need to turn up the volume, the new 5-inch woofer creates extra power and itÔÇÖs perfectly aligned with the tweeter so youÔÇÖll hear all sound frequencies clearly. The grooves on the ducts reduce air friction so that bass is tight and punchy, even if you position the speakers against a wall. Plus, the curved front edges provide maximum rigidity and minimum resonance for clean audio at any volume level.
2-way sound mode optimized for DJing and music production
ThereÔÇÖs no need to decide whether you want a set of monitors that are best for DJing or making music, because the DM-50D speakers are perfect for both. Just flip the switch to choose either DJ mode or Production mode and the DSP settings will be optimized for the task, leaving you free to concentrate on your mix.
Easy to use with different DJ or production equipment
With RCA, mini jack, and the newly added TRS input terminals, you can connect different kinds of gear such as DJ controllers and mixers, or the laptop or soundcard you use for producing your own music. Connecting and disconnecting your headphones is simple via the socket on the front panel of the DM-50D. ThereÔÇÖs no need to reach around the back of the speakers to adjust the volume either, as the level knob is also right in front of you.
Type
|
2-way bass reflex, active monitor speakers |
Tweeter
|
3/4” (19 mm) soft dome |
Woofer
|
5" (127 mm) fiberglass cones |
Accessories
|
- DM-50D
- Power cord
- Audio converter cable (3.5 mm stereo mini plug to RCA)
- Speaker cord
- Bottom cushion
- Quick Start Guide
- Precautions for Use
- Warranty
|
Dimensions (W x H x D)
|
- Lch: 175 x 262 x 257 mm / 6.89” x 10.32” x 10.12”
- Rch: 175 x 262 x 247 mm / 6.89” x 10.32” x 9.72”
|
Weight
|
- Lch: 3.9 kg / 8.6 lbs.
- Rch: 3.5 kg / 7.7 lbs.
|
Amplifier Output
|
- Class D with DSP
- Lch: 25 W / 4 Ω
- Rch: 25 W / 4 Ω
|
Impedance
|
10 kΩ |
Power Supply
|
AC 100-240 V, 50 Hz / 60Hz |
Enclosure
|
Bass reflex |
Enclosure material
|
MDF vinyl laminate |
Power Consumption
|
25 W |
Power consumption during standby mode
|
0.3 W or less |
Inputs
|
- 1/4” TRS jack x 1 (balanced input)
- RCA pin jack x 1 (unbalanced input)
- 3.5 mm stereo mini jack x 1 (Unbalanced input)
|
Outputs
|
3.5 mm stereo mini jack x 1 |
* The specifications and design of this product are subject to change without notice.
