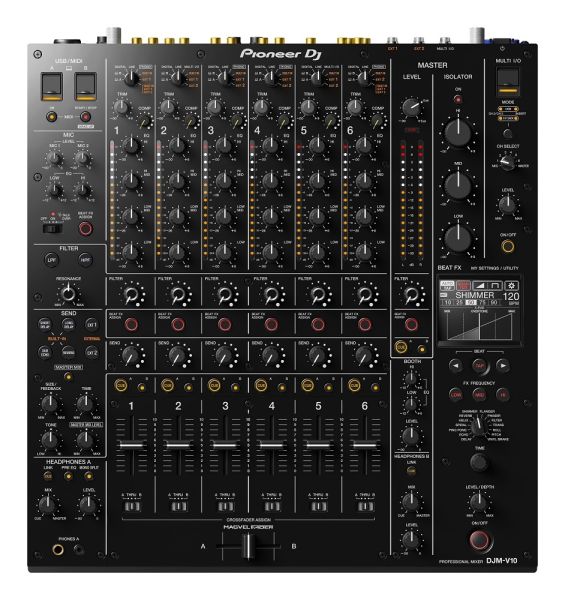

Pioneer DJ DJM-V10 6-Channel Professional DJ Mixer
DJM-V10 is a new breed of professional DJ mixer, built to enable DJs to craft new soundscapes from multiple audio sources.
CRAFT YOUR SOUND WITH THE DJM-V10 6-channel club mixer enabling DJs to craft new soundscapes from multiple audio sources
DJM-V10 is a new breed of mixer, built to enable the most creative DJs to craft original soundscapes. This 6-channel unit produces warm audio with energy and presence, and it’s loaded with unique features. So, take full control of your mix and enjoy the freedom to create something the crowd has never heard before.
DJM-V10 allows you to connect CDJs, turntables, and other line-level audio sources to the professional DJ mixers six channels and for the first time ever Pioneer DJ have built in a 4-band EQ enabling you to independently control distinct elements of the music, e.g. kick drums and bass allowing you to sculpt your sound. Fully kill the high and low frequencies and play with the two mid ranges, which use an exclusive curve, to mold your mix. There’s a brand-new filter too, controlled by the dedicated knob on each channel. Bring rich texture to your tracks by selecting high or low pass, then sweeping the knob all the way from the left to the right.
DJM-V10 has unlimited creative options thanks to the expanded send/return section on the mixer. Route audio to one of four built-in FX and up to two pieces of external equipment. Assemble a custom setup by plugging in FX units, guitar pedals, and more to further personalize your performance. Route the audio back to the original channel or mix it straight into the master output. You can also choose to return it to a separate channel and tweak it further with the filter. And you can even use selected smartphone apps in your performances by connecting your device via MULTI I/O.
The Pioneer DJM-V10 has been carefully designed to produce the best audio possible, a versatile sound that brings out the best in all genres of music, and to give you all the tools to shape your sound. After layering elements and FX with the six channels, use the 3-band master isolator on the master output to drastically change, or fine-tune, the contours of your whole mix. And if you want to play raw, classic recordings with modern, mastered ones, use the compressor – the first of its kind we’ve ever featured on a mixer – and blend together tracks you might never have dared to before. Simply turn the knob and the loudness of the audio from the selected channel will be boosted, resulting in a more natural mix. Keen to spice up a track? Add harmony and depth with Beat FX including the brand-new Shimmer.
If things don’t sound right behind the decks, use the new booth EQ on the DJM-V10 to adjust the audio coming through the monitors. And with dual headphone outputs – each featuring their own monitor channel and level control – you can comfortably take over the decks from a DJ who’s wrapping up a set, or perform back-to-back all night, without having to compromise on what you hear in your headphones.
Elite sound quality
Feel the warmth of the mixer’s natural sound and hear every detail in the music. We've adopted studio-quality 96-kHz/64-bit mixing and dithering processing within the DSP, as well as 32-bit high-quality A/D and D/A converters. All of this, plus the low-jitter clock circuit, helps produce a full low-end that’s complemented by vibrant mids and precise highs.
Six channels
Choose your ideal setup and plug in everything from CDJs and turntables to samplers, synths, and drum machines. To make setup easy, the analog input terminals line up with each channel on the top panel, so you’ll always know where to connect your cables when you’re in the booth.
4-band EQ
Sculpt your sound just the way you like with the newly developed 4-band EQ. The frequencies, curves, and boost and cut amounts on each band have all been specially designed to give you total flexibility. Completely isolate the high and/or low and tweak the two mid ranges – which have their own custom curves – to fine-tune your mix.
New filter with dedicated knob on each channel
Drastically change the sound of a track or make tiny adjustments using the newly developed filter with resonance control. Switch on high or low pass by pressing either button, then turn the knob from all the way to the left (no filter applied) to the furthest position on the right (maximum filter applied). Because the high and low pass are separated, the entire range of the knob is dedicated to the option you choose, giving you twice the resolution to play with compared to the filter on the DJM-900NXS2. This means you can make much more nuanced adjustments to the effect.
Send/return section
Send audio to one of four built-in FX and up to two pieces of external equipment to create unique sounds and even live remixes. You can connect a variety of units to the TRS jack send/return terminals such as guitar pedals, FX units, and more.
The built-in send/return FX are Short Delay, Long Delay, Dub Echo, and Reverb. With parameter knobs at your fingertips, you can further tweak the FX as follows:
Size/Feedback: changes the room size when using a reverb, and the feedback amount when using delays and echoes.
Time: adjusts the decay time of the reverb and the delay time for delays and echoes.
Tone: changes the hue of the effected sound, making it deep and heavy or light and crisp.
Master Mix Level: acts as the overall volume of the effected sound when Master Mix is turned on.
Whether you’re using external equipment or the built-in FX, you decide where you want to return the audio to. Route it to an empty channel and make further changes to the effected sound using the EQ and filter. You can even drop it straight into your mix by turning on the Master Mix to route it to the master output.
3-band master isolator
Effortlessly control the tone of your entire mix using the 3-band master isolator, which features new boost/cut curves and adjustments to the crossover frequencies and other parameters. Grab the large dials and hype up the crowd by drastically changing the sound.
Compressor knob on each channel
If you want to play old or unmastered tracks but you’re worried they’ll be overwhelmed by the loudness of music made with modern production techniques, the DJM-V10 has the solution. Turn the compressor knob on the relevant channel and the mixer will “beef up” the audio in real time. The quieter the track, the more pressure is added, boosting the sound of “weaker” tracks and having a minimal effect on mastered music.
Dual headphones output and booth EQ
Plug in your headphones at the same time as another DJ and enjoy independent monitoring. Each headphones output has its own Cue/Master Mix control and level adjustment knob so you can choose what you want to hear as you prepare to take over the decks, or during back-to-back sets. And, with booth EQ, you can tweak the sound from the monitor speakers to prevent ear fatigue during long sets.
Support for external devices, apps, and services
DJ software
Control rekordbox, TRAKTOR PRO 3, and Serato DJ Pro*1.
RMX-1000 for iPad
Plug in your iPad via MULTI I/O, open the RMX-1000 for iPad app, and trigger FX and pre-assigned samples to build up and break down tracks in sync with the beat.
ShowKontrol
The DJM-V10 supports the extended PRO DJ LINK ShowKontrol protocol. This enables DJs, technical producers, LJs, and VJs to use all the important information from the DJM-V10, such as actual fader and knob positions, to effectively align sound and visuals and create shows that blow audiences away.
On top of this, some of the DJM-V10 settings can be remotely configured via ShowKontrol software.
DJM-REC
Efficiently record and easily archive your mixes via the DJM-REC app for iPhone or iPad. Upload your sounds to cloud services or effortlessly live-stream your sets.
Other features
- Lockable power cable*2 – avoid accidental disconnection
- DIN Midi out – sync external production gear using the BPM from rekordbox
Main Features
| MIDI Control | Full assignable MIDI controls |
|---|---|
| ProDJ Link | Yes |
| Booth EQ | Yes |
| P-LOCK Fader Caps | Yes |
| Auto Standby | Yes |
| DVS Control |
|
| What's in the box |
|
Specifications
| Width | 437.6 mm |
|---|---|
| Height | 107.9 mm |
| Depth | 467 mm |
| Weight | 11.9 kg |
| Frequency Range | 20 - 40000 Hz |
| Sampling Rate | 96 kHz |
| A/D Converter | 32 bit |
| D/A Converter | 32 bit |
| S/N Ratio Line | 105 dB |
| S/N Ratio Phono | 88 dB |
| S/N Ratio Mic | 79 dB |
| Distortion | < 0.005 % (LINE) |
Channels
| EQ | 4 band |
|---|---|
| EQ Range | [Hi/Low] -∞ ~ +6 dB / [Hi Mid/Low Mid] -26 dB ~ +6 dB dB |
| COMP | Yes |
Performance Control
| Channels | 6 |
|---|---|
| Filter |
|
| SEND |
|
| MULTI I/O |
|
| Beat FX |
|
| FX Frequency | Yes |
| X-PAD | Yes |
| rekordbox Quantize | Yes |
| Master Isolator |
Crossfader
| Crossfader Type | Magvel Fader |
|---|---|
| CURVE Assignable | Yes |
| Fader Curve | 3 |
Mic
| Mic Connection |
|
|---|---|
| Talkover | 3 Position Switch |
| Talkover Attenuator |
Terminals
| Inputs |
|
|---|---|
| Send/Return |
|
| LAN | 1 |
| USB |
|
| Outputs |
|
