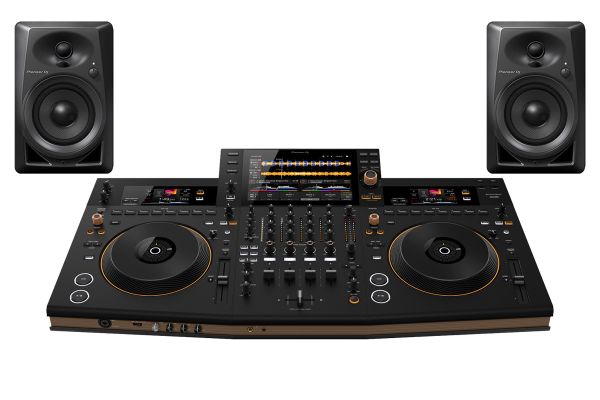

Pioneer DJ Opus Quad - 4 Channel Standalone Controller
- New all-in-one DJ system creates harmony between beautiful design and playability
- Evolved features include standalone 4-deck playback and support for multiple sound sources
- A spectacular DJ experience you can harness to inspire your audience in any space or location
Pioneer DJ DM-40D Active Monitor Speakers Pair
Class D amplifier
Each DM series speaker produces pure, balanced bass sound thanks to a new Class D amplifier with 96kHz sampling DSP.
DECO convex diffusers
Another advancement from the DM-40 model comes in the updated design of the DECO convex diffusers which help deliver crystal-clear high frequencies in every direction, so you can enjoy a wide sweet spot and 3D stereo sound wherever you are in the room.
Time alignment
The woofer and tweeter are perfectly aligned so youÔÇÖll hear all sound frequencies clearly
Grooved ducts
The grooves on the ducts reduce air friction so bass is tight and punchy, even if you position the speakers against a wall. Plus, the curved front edges provide maximum rigidity and minimum resonance for clean audio at any volume level.
4-inch woofer
The 4-inch woofer creates powerful sound without distorting, even if you pump up the volume.
Pioneer DJ Opus Quad - 4 Channel Standalone Controller
Supported music file formats
|
- MP3
- AAC
- WAV
- AIFF
- Apple Lossless
- FLAC
|
File systems
|
- FAT16
- FAT32
- exFAT
- HFS+
- (NTFS isn’t supported.)
|
Compatible DJ Software
|
- rekordbox for Mac/Windows: Hardware Unlock
- rekordbox for iOS (Android coming soon)
- Serato DJ Pro: Hardware Unlock (coming summer 2023)
|
MIDI Control
|
Yes |
USB record
|
Yes |
Plug and Play
|
Yes |
Auto Standby
|
Yes |
What's in the Box
|
- OPUS-QUAD
- Power cord
- Quick Start Guide
- Precautions for Use
- Warranty (Only products in Europe. Products in North America and Japan include warranty information in the “Precautions for Use”)
|
Sampling Rate
|
44.1 kHz |
Frequency Range
|
20 - 20000 Hz |
Width
|
925.7 mm |
Height
|
142 mm |
Depth
|
499.7 mm |
Weight
|
13.2 kg |
Dimensional Outline drawing
|
Click here for the details. |
Power Supply
|
AC 100-240 V, 50 Hz / 60Hz |
Power Consumption
|
60 W |
MASTER DA converter
|
32 bit |
A/D Converter
|
24 bit |
Signal-to-Noise Ratio
|
- USB: 114 dB
- LINE: 96 dB
- PHONO: 85 dB
- MIC: 79 dB
|
Distortion
|
- USB: 0.003 %
- LINE: 0.005 %
|
Channels
|
4 |
Deck Control
|
- 4 (USB storage device)
- 4 (DJ Software control)
|
Jog Wheel
|
206 mm |
Jog Feeling
|
Yes |
Sound Color FX
|
- Space
- Dub Echo
- Sweep
- Noise
- Crush
- Filter
|
Beat FX
|
- Delay
- Echo
- Ping Pong
- Spiral
- Reverb
- Trans
- Filter
- Flanger
- Phaser
- Pitch
- Slip Roll
- Roll
- Vinyl Brake
- Helix
|
Hot Cues
|
8 per deck |
Beat Loop
|
Yes |
Beat Jump
|
Yes |
Beat Sync
|
Yes |
Quantize
|
Yes |
WaveZoom
|
Yes |
Manual Loop
|
Yes |
Trim knob
|
Yes |
EQ Isolator
|
Yes |
Mic Connection
|
XLR connector & 1/4 inch TRS jack |
Mic EQ
|
3 band |
Talkover
|
MIC OFF/ON/TALK OVER slide SW |
Inputs
|
- 2 LINE (RCA)
- 2 PHONO (RCA)
- 2 MIC (XLR connector & 1/4 inch TRS jack)
|
Outputs
|
- 1 MASTER (XLR)
- 1 MASTER (RCA)
- 1 ZONE (XLR)
- 1 BOOTH (1/4 inch TRS Jack)
- 1 PHONES (1/4 inch stereo phone Jack)
- 1 PHONES (3.5-mm stereo mini jack)
|
USB
|
- 3 USB A ports
- 1 USB C port
|
Supported standards
|
IEEE 802.11 a / b / g / n / ac |
Frequency band used
|
2.4 GHz / 5 GHz |
Wireless system
|
Bluetooth ver. 4.2 |
Frequency band used
|
2.4GHz |
Compatible codecs
|
SBC, AAC |
* The specifications and design of this product are subject to change without notice.
Pioneer DJ DM-40D Active Monitor Speakers Pair
Type
|
2-way bass reflex, active monitor speakers |
Tweeter
|
3/4” (19 mm) soft dome |
Woofer
|
4-inch Fiberglass |
Accessories
|
- DM-40D-W
- Power cord
- Audio converter cable (3.5 mm stereo mini plug to RCA)
- Speaker cord
- Bottom cushion
- Quick Start Guide
- Precautions for Use
- Warranty
|
Amplifier Output
|
- Class D with DSP
- Lch: 19 W / 4 Ω
- Rch: 19 W / 4 Ω
|
Impedance
|
10 kΩ |
Inputs
|
- RCA pin jack x 1 (unbalanced input)
- 3.5 mm stereo mini jack x 1 (Unbalanced input)
|
Outputs
|
3.5 mm stereo mini jack x 1 |
* The specifications and design of this product are subject to change without notice.
