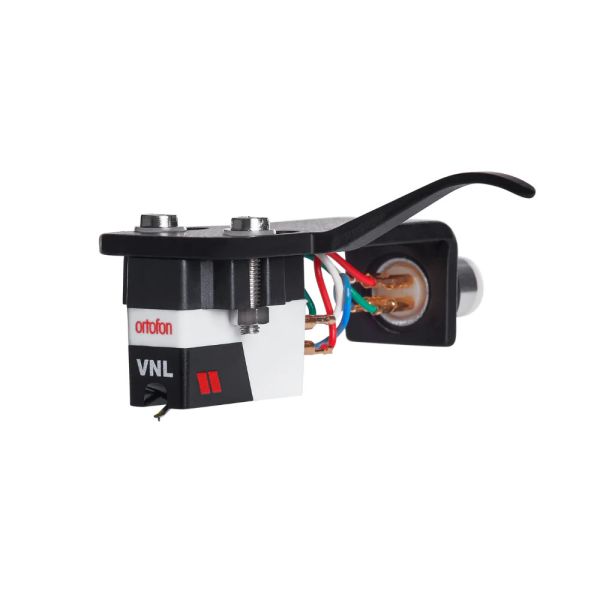

Ortofon VNL cartridge premounted on SH4 Headshell
SKU
321804
Categories: DJ Cartridges & Styli, DJ Cartridge Accessories
Expertly paired and mounted on our popular black SH-4 Headshell, the VNL is compatible with any standard DJ turntable and tonearm.
The quality of the SH-4 headshell is sturdy and rigid, with high quality tonearm terminal connections. One of the standout features of the VNL Premounted cartridge is its versatility.
The universal mount fitting allows it to be used with a wide range of S-shaped tonearms, making it a great option for DJs who use multiple setups.
The quality of the SH-4 headshell is sturdy and rigid, with high quality tonearm terminal connections. One of the standout features of the VNL Premounted cartridge is its versatility.
The universal mount fitting allows it to be used with a wide range of S-shaped tonearms, making it a great option for DJs who use multiple setups.
The VNL cartridge boasts an array of features and enhancements.
Equipped with a spherical stylus, the VNL cartridge excels in handling tough grooves, rendering it ideal for intensive use.
Furthermore, its design minimizes record wear during scratching and back-cueing. The VNL cartridge ensures high tracking performance, catering to DVS and traditional vinyl setups.
This performance is complemented by a harmonious balance between output strength and sound quality.
Equipped with a spherical stylus, the VNL cartridge excels in handling tough grooves, rendering it ideal for intensive use.
Furthermore, its design minimizes record wear during scratching and back-cueing. The VNL cartridge ensures high tracking performance, catering to DVS and traditional vinyl setups.
This performance is complemented by a harmonious balance between output strength and sound quality.
- Output voltage at 1 kHz, 5cm/sec: 6 mV
- Channel seperation at 1 kHz: 20 dB
- Frequency response 20 Hz - 10 kHz: –2 / +4 dB
- Tracking ability at 315Hz at recommended tracking force: 90 µm
- Compliance, dynamic, lateral: 15 µm/mN
- Stylus tip radius: R 18 µm
- Tracking force range: 3-5 g
- Tracking force, recommended: 4 g
- Internal impedance, DC resistance: 700 Ohm
- Cartridge colour: White
- Cartridge weight: 6.5 g
- Premounted cartridge weight: 16.0 g
- Reccomended load resistance: 47 kOhm
- Internal inductance: 450 mH
- Recommended load capacitance: 47 kOhm
- Replacement stylus: Stylus VNL \
1 Year Warranty
