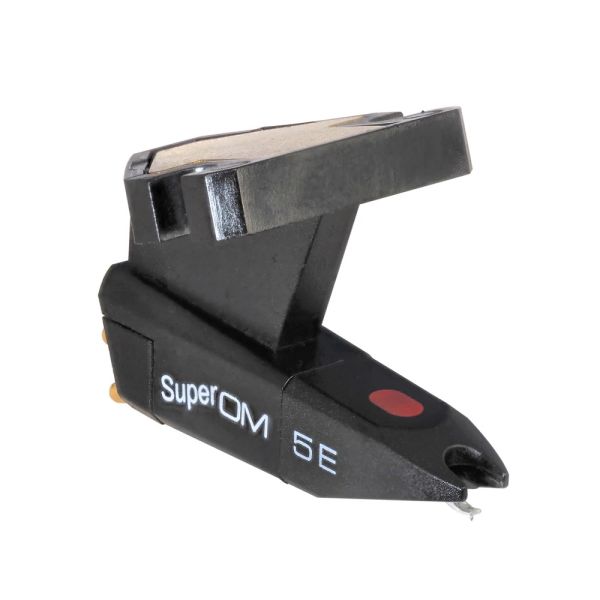

The Super OM 5E features improved lineraty, higher channel seperation, and an Elliptical stylus that provides balanced and distortion-free playback.

The Elliptical diamonds are able to follow the groove oscillations more accurately than spherical diamonds due to their contoured shape.

This results in better tracking and less distortion.

The series is the lowest-mass range of moving magnet cartridges offered by Ortofon.

The OM cartridges bodies have been designed to provide easy mounting and alignment on both top mount and bottom mount headshells.

The OM 5 Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

Channel balance at 1 kHz: 1.5 dB
Output voltage at 1 kHz, 5cm/sec: 4 mV
Channel separation at 1 kHz: 22 dB
Frequency response 20 Hz - 20 kHz: 20-22.000 Hz + 3 / -3
Tracking ability at 315 Hz: 60 µm
Compliance, dynamic, lateral: 20 µm/mN
Stylus type: Elliptical
Stylus tip radius:r/R 8/18 µm
Tracking force range: 1.5-2.0 g (15-20 mN)
Tracking force, recommended: 1.75 g (17.5 mN)
Tracking angle: 20°
Internal impedance, DC resistance: 1 kOhm
Cartridge colour: Black/Black
Cartridge weight: incl. extra weight 5 g, excl. extra weight 2.5 g
Recommended load resistance: 47 kOhm
Internal inductance: 580 mH
Recommended load capacitance: 200-500 pF

1 Year Warranty
