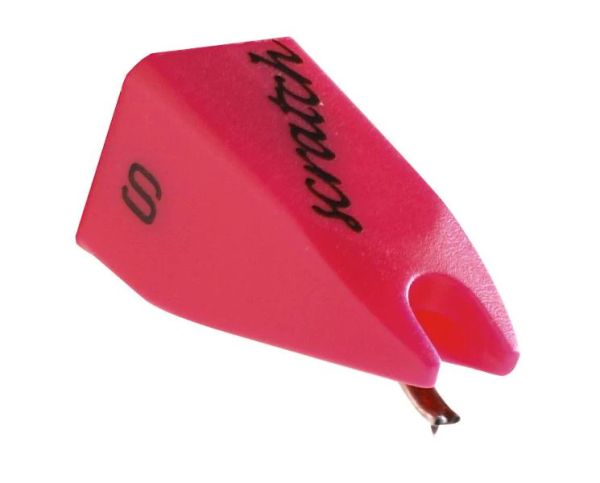

Ortofon Stylus Scratch
SKU
045896
Categories: DJ Cartridges & Styli, DJ Cartridge Accessories
As implied by the name, the Scratch is intended especially for the disciplines of scratch and back-cueing.
It is made of a fluorescent neon-red material with the intention of it becoming highly apparent in the spotlight and luminous in ultraviolet light. For DJs that require increased tracking ability, the Scratch is up to the task.
Featuring a reinforced rubber suspension, DJs need not worry about compromising sound quality and stylus life when working with higher tracking forces.
With solid bass reproduction and extended highs, the Scratch is great for any style, providing energetic, in-your-face sound.
- Channel balance at 1 kHz: 1,5 dB
- Output voltage at 1 kHz, 5cm/sec: 7 mV
- Channel seperation at 1 kHz: 25 dB
- Channel seperation at 15 kHz: 15 dB
- Frequency response 20 Hz - 10 kHz: 3dB/-2dB
- Tracking ability at 315Hz at recommended tracking force: 80 μm
- Compliance, dynamic, lateral: 6 μm/m N
- Stylus tip radius: R 18 μm
- Tracking force range: 3.0-5.0 g (30-50 mN)
- Tracking force, recommended: 4.0 g (40 mN)
- Tracking angle: 20°
- Internal impedance, DC resistance: 750 Ohm
- Cartridge weight: 18.5 g
- Reccomended load resistance: 47 kOhm
- Internal inductance: 450 mH
- Recommended load capacitance: 200-600 pF
1 Year Warranty
