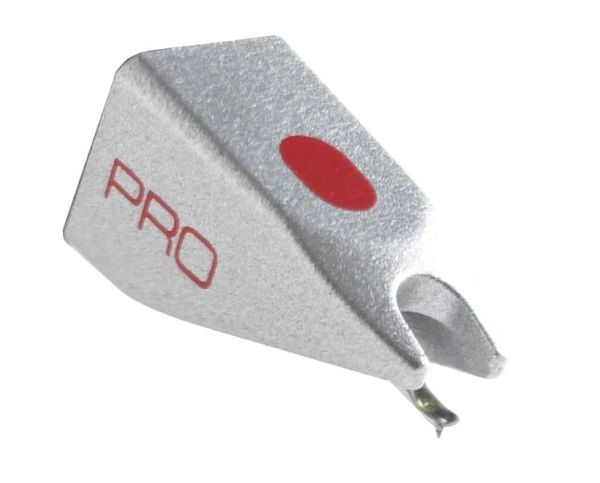

Ortofon Stylus Pro Silver Styli
SKU
047521
Categories: DJ Cartridges & Styli, DJ Cartridge Accessories
- Channel balance at 1 kHz: 1,5 dB
- Output voltage at 1 kHz, 5cm/sec: 5cm/sec, -5mV
- Channel seperation at 1 kHz: 20 dB
- Channel seperation at 15 kHz: 15 dB
- Frequency response 20 Hz - 10 kHz: 20-20.000 Hz +3/-2dB
- Tracking ability at 315Hz at recommended tracking force: 70 μm
- Compliance, dynamic, lateral: 7 μm/m N
- Stylus tip radius: R 18 μm
- Tracking force range: 3.0-5.0 g (30-50 mN)
- Tracking force, recommended: 4.0 g (40 mN)
- Tracking angle: 20°
- Internal impedance, DC resistance: 750 Ohm
- Reccomended load resistance: 47 kOhm
- Internal inductance: 450 mH
- Recommended load capacitance: 200-600 pF
1 Year Warranty
