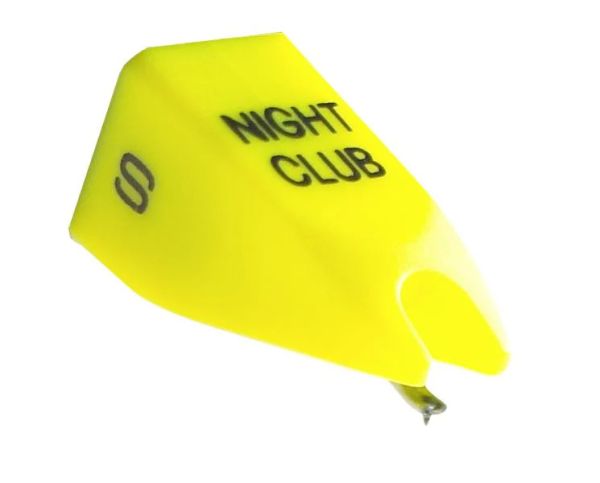

Ortofon Stylus Nightclub S Styli
SKU
045701
Categories: DJ Cartridges & Styli, DJ Cartridge Accessories
The Nighclub S stylus stands out as one of the top performers in its category, ideal for both scratching and mixing.
With a spherical diamond and a custom design, this cartridge establishes its undeniable supremacy.
The stylus remains firmly in the groove during scratching and back-cueing, ensuring unfailing reliability, even during extended night-long performances.
- Channel balance at 1 kHz: 1.5 dB
- Output voltage at 1 kHz, 5cm/sec: 6mV
- Channel seperation at 1 kHz: 23 dB
- Channel seperation at 15 kHz: 15 dB
- Frequency response 20 Hz - 10 kHz: +3/-2 dB
- Tracking ability at 315Hz at recommended tracking force: -80 μm
- Compliance, dynamic, lateral: 7 μm/m N
- Stylus tip radius: R 18 μm
- Tracking force range: 2.0-5.0 g (20-50 mN)
- Tracking force, recommended: 3.0 g (30 mN)
- Tracking angle: 20°
- Internal impedance, DC resistance: 750 Ohm
- Reccomended load resistance: 47 kOhm
- Internal inductance: 450 mH
- Recommended load capacitance: 200-600 pF
1 Year Warranty
