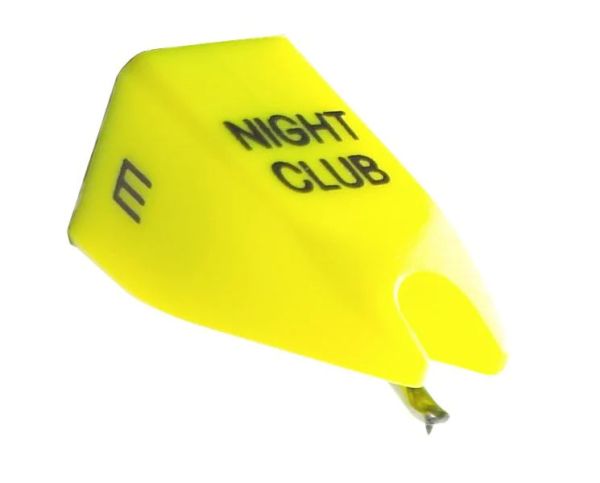

Ortofon Stylus Nightclub E
SKU
045007
Categories: DJ Cartridges & Styli, DJ Cartridge Accessories
The Stylus Nightclub E is equipped with a Special Elliptical diamond, making it perfect for use in clubs with superb sound quality.
Club DJs and studio professionals consider the Nightclub E an absolute high-end cartridge. It is indeed a no-nonsense performer with fascinating musical capabilities.
Its output is superb, with a frequency response rating high enough to rival any audiophile cartridge.
The special elliptical stylus guarantees sound with minimal scratching.
- Channel balance at 1 kHz: 1.5 dB
- Output voltage at 1 kHz, 5cm/sec: 8mV
- Channel seperation at 1 kHz: 23 dB
- Channel seperation at 15 kHz: 15 dB
- Frequency response 20 Hz - 10 kHz: +/-1.5 dB
- Tracking ability at 315Hz at recommended tracking force: 85 μm
- Compliance, dynamic, lateral: 20 μm/m N
- Stylus tip radius: R 18 μm
- Tracking force range: 2.0-5.0 g (20-50 mN)
- Tracking force, recommended: 3.0 g (30 mN)
- Tracking angle: 20°
- Internal impedance, DC resistance: 1000 Ohm
- Cartridge weight: 18.5 g
- Reccomended load resistance: 47 kOhm
- Internal inductance: 580 mH
- Recommended load capacitance: 200-600 pF
1 Year Warranty
