Ortofon Stylus Gold Styli
SKU
041526
£72.50
In stock
Ortofon Stylus Gold Styli
- Buy 2 for £70.00 each and save 3%
Categories: DJ Cartridges & Styli, DJ Cartridge Accessories

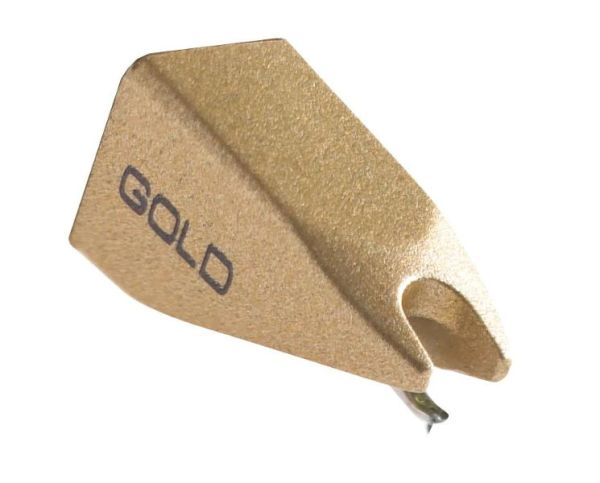

The Stylus Gold is a top model with gold plating and features a Special Pro Elliptical diamond and an output voltage of 6 mV.
- Channel balance at 1 kHz: 1.5 dB
- Output voltage at 1 kHz, 5cm/sec: 6mV
- Channel seperation at 1 kHz: 23 dB
- Channel seperation at 15 kHz: 15 dB
- Tracking ability at 315Hz at recommended tracking force: 80 μm
- Compliance, dynamic, lateral: 7 μm/m N
- Stylus tip radius: R 25 μm
- Tracking force range: 2.0-5.0 g (20-50 mN)
- Tracking force, recommended: 3.0 g (30 mN)
- Tracking angle: 20°
- Internal impedance, DC resistance: 750 Ohm
- Reccomended load resistance: 47 kOhm
- Internal inductance: 450 mH
- Recommended load capacitance: 200-600 pF
1 Year Warranty
