Ortofon Stylus DJ E Styli
SKU
040557
Categories: DJ Cartridges & Styli, DJ Cartridge Accessories

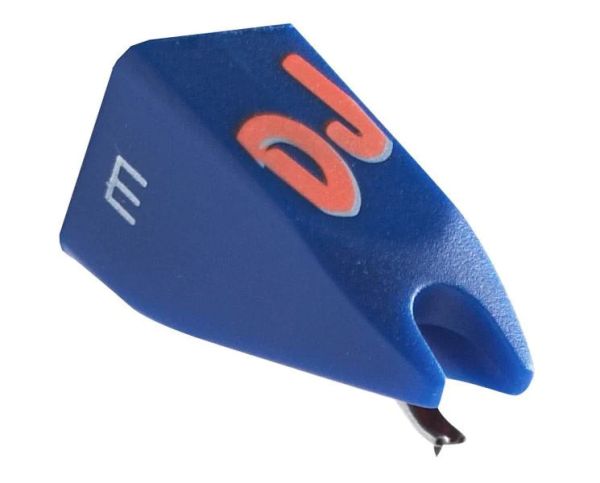

The Stylus DJ E is designed for scratch and back-cueing, offering outstanding rigidity with an extra-strengthened cantilever.
It features a Special Elliptical stylus and an extremely balanced cantilever specially developed for this cartridge.
Not only does the cartridge provide excellent tracking ability, but it is also nearly unbreakable, offering DJs the much-needed durability. Furthermore, it minimizes record wear, which is advantageous for busy DJs.
The DJ series is widely known as the "jack of all trades," offering improved tracking and precise sound reproduction. With its low-wear stylus design, the DJ excels in handling grooves, even with less weight applied.
- Channel balance at 1 kHz: 2 dB
- Channel seperation at 1 kHz: 23 dB
- Channel seperation at 15 kHz: 15 dB
- Frequency response 20 Hz - 10 kHz: +/-1.5 dB
- Tracking ability at 315Hz at recommended tracking force: -85 μm
- Compliance, dynamic, lateral: 9 μm/m N
- Stylus tip radius: R 25 μm
- Tracking force range: 2.0-4.0 g (20-40 mN)
- Tracking force, recommended: 3.0 g (30 mN)
- Tracking angle: 20°
- Internal impedance, DC resistance: 750 Ohm
- Reccomended load resistance: 47 kOhm
- Internal inductance: 450 mH
- Recommended load capacitance: 200-600 pF
1 Year Warranty
