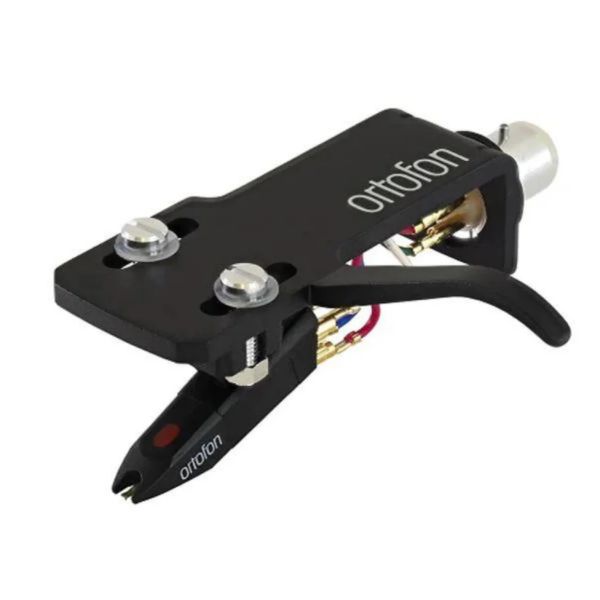

The OM Pro S on the SH-4 Black headshell is a practical and convenient solution for our customers who wish direct and easy mounting and replacement on their S-shaped tonearm.

The OM Pro S is a consistent performer and a fine all-arounder!

Universal mount fitting a wide range of S-shaped tonearms
Correct Baerwald alignment with the major part of tonearms with universal mount
Spherical stylus minimizes scratching
Solid cantilever can survive hectic activity at the turntable

Specifications

Channel balance at 1 kHz: 2 dB
Output voltage at 1 kHz, 5cm/sec: 5 mV
Channel seperation at 1 kHz: 20 dB
Channel seperation at 15 kHz: 15 dB
Tracking ability at 315Hz at recommended tracking force: 70 μm
Compliance, dynamic, lateral: 7 μm/m N
Stylus type: Spherical
Stylus tip radius: R 18 μm
Tracking force range: 3 - 5 g
Tracking force, recommended: 4 g
Tracking angle: 20°
Internal impedance, DC resistance: 750 Ohm
Cartridge weight: 5,0 g
Recommended load resistance: 47 kOhm
Internal inductance: 450 mH
Recommended load capacitance: 200-600 pF
Replacement stylus: Stylus PRO S

1 Year Warranty
