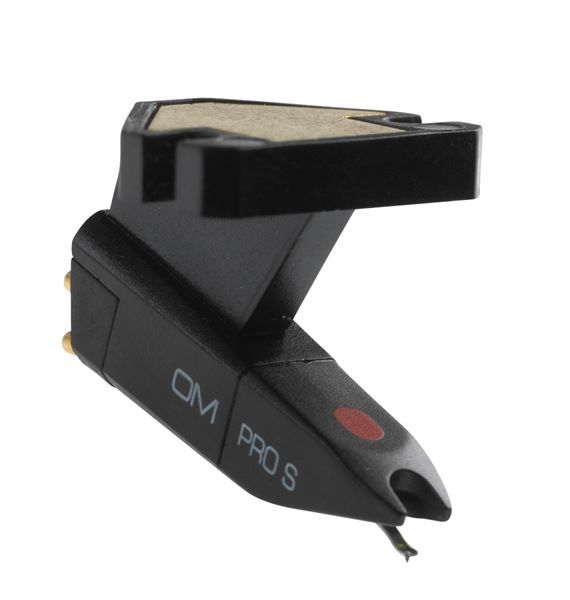

Ortofon OM Pro S Cartridge & Styli
This entry-level cartridge is perfect for newcomers on the DJ scene who want to start off with decent, but not too expensive equipment. The Pro S has a spherical diamond stylus and a solid cantilever which can survive hectic activity at the turntable. No matter what the application, the Pro S provides remarkable versatility for virtually any setting. The Pro S is a consistent performer and a fine all-arounder!
Output voltage at 1000 Hz, 5cm/sec. 5 mV
Channel balance at 1 kHz, 2 dB
Channel separation at 1 kHz, 20 dB
Channel separation at 15 kHz, 15 dB
Frequency range at - 3dB, 20-20.000 Hz
Frequency response, 20-18.000 Hz + 3 / - 2 dB
FIM distortion at recommended tracking force, DIN 45.542, < 1%
Tracking ability at 315Hz at recommended tracking force, 70 µm
Compliance, dynamic, lateral, 7 µm/mN
Stylus type Spherical
Stylus tip radius, R 26 µm
Equivalent stylus tip mass, 0,5 mg
Tracking force range 3,0-5,0 g (30-50 mN)
Tracking force, recommended 4,0 g (40 mN)
Tracking angle 20°
Internal impedance, DC resistance 750 Ohm
Internal inductance 450 mH
Recommended load resistance 47 kOhm
Recommended load capacitance 200-600 pf
Cartridge colour, body/stylus Black/Black
Cartridge weight 5 g
Replacement stylus unit PRO S
