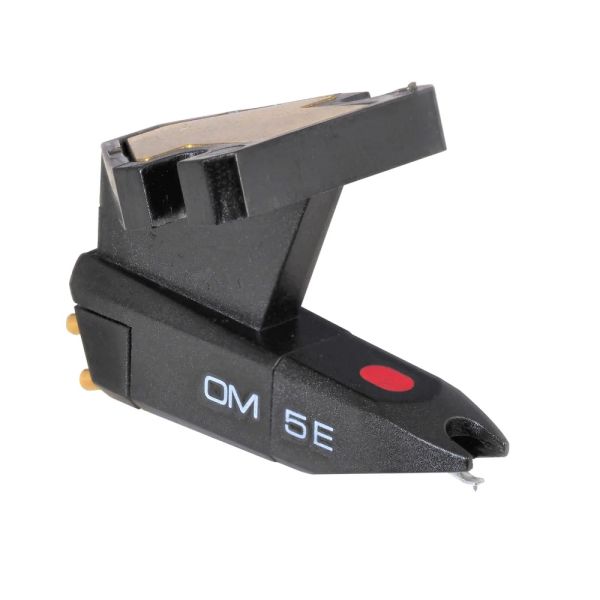

OM 5E features Elliptical stylus that provides balanced and distortion-free playback.

If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OMs.

A glance at any one of these cartridges will reveal Ortofon's answer to perfect tonearm matching.

Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.

If your tonearm is a standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5g.

The series is the lowest-mass range of moving magnet cartridges offered by Ortofon.

The OM cartridges bodies have been designed to provide easy mounting and alignment on both top mount and bottom mount headshells.

The OM 5 Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

Channel balance at 1 kHz: 2 dB
Output voltage at 1 kHz, 5cm/sec: 4 mV
Channel separation at 1 kHz: 22 dB
Frequency response 20 Hz - 20 kHz: 20-20.000 Hz + 3 / -3
Tracking ability at 315 Hz: 60 µm
Compliance, dynamic, lateral: 20 µm/mN
Stylus type; Elliptical
Stylus tip radius: r/R 8/18 µm
Tracking force, recommended: 1.8 g
Tracking angle; 20°
Internal impedance, DC resistance; 750 Ohm
Cartridge colour: Black/Black
Cartridge weight: incl. extra weight 5 g, excl. extra weight 2.5 g
Recommended load resistance: 47 kOhm
Internal inductance: 450 mH
Recommended load capacitance: 200-500 pF
Replacement stylus: Stylus 5E

1 Year Warranty
