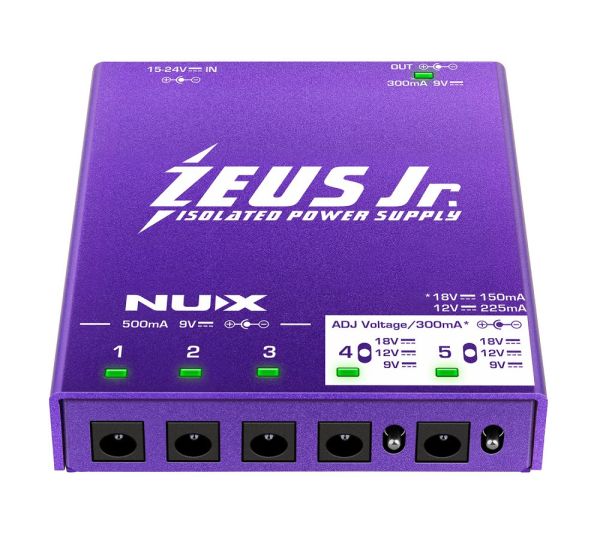

Following on from the success of the Zeus pedal power supply, NU-X have developed the Zeus Jr. for multi-pedal users with more compact effect setups.

Zeus Jr. retains the same double isolated power circuit to help eliminate noise and keep the power chain clean.

3 outputs deliver 9Vdc up to 500mA each and a fourth can provide 9Vdc at 300mA.

2 additional outputs have selectable 9/12/18V outputs for pedals that require or can handle different voltages.

Supplied with 6 x DC5521 angle power leads and a further reverse polarity and DC minijack lead.

Powered from the mains via its in-line DC switching power supply, this is the ideal solution for players that use multi-pedal rigs where noise issues could otherwise be problematic.

Extremely low noise circuitry
Fully isolated outputs
Multiple voltage options
High current capacity
Supplied with various DC link cables to handle most pedal input types

Power supply: 100-240Vac, 50/60Hz (IEC with 15Vdc in-line adaptor)
Outputs: 4 x 9Vdc, 2 x 9/12/18Vdc (DC5521 jack)
Power output: 21.6W max
Dimensions: 90 x 88 x 24mm
Weight: 184g

1 Year Warranty
