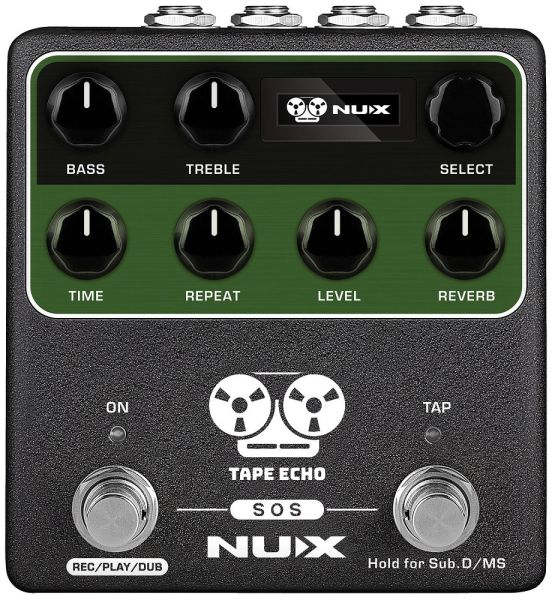

Tape Echo is an echo and delay processor with 7 different types of simulation to recreate the sound of vintage echo units.

In addition to classic tape echo simulation, the NDD-7 has a separate spring reverb effect, sound-on-sound (SOS) for operation as a 40 second looper, and up to 1600ms of delay.

For authenticity, the NDD-7 also has Wow & Flutter settings and Saturation adds natural compression and degradation, which can even drive into self-oscillation, like a true tape echo.

Two foot switches operate as effect on/off and tap tempo and they double as looper and display controls.

Above the foot switches are Time, Repeat, Level and Reverb controls and 2-band EQ governs the tone of repeats.

USB connectivity and MIDI compatibility give further possibilities for deep control and integration with DAW and project studio setups.

A full vintage echo collection in a single compact pedal for those seeking the genuine retro echo sound.

Authentic tape echo machine simulation
Independent spring reverb effect
MIDI in and out
External expression pedal input
Stereo or mono output
USB port for PC editor and firmware upgrades

Requires 9V center negative DC Power Supply 100mA current draw (Not Supplied)

Power supply: 9Vdc, 300mA (min) pin-negative (not included)
Controls: Time, Repeat, Level, Reverb, Bass, Treble, Select
Current consumption: <150mA
Sampling Frequency: 48kHz
Sampling format: 32-bit
Frequency response: 20Hz - 20kHz (-1dB)
Input impedance: 5M Ohms
Input level: 1.5V max
Output impedance: 100 Ohms
Output level: 1.5V max
Latency: 1ms
Dynamic range: 103dBu / 105dBu (A-weighted)
THD +N: 0.0038% (1Vrms, 1kHz) / 0.01% (1Vrms, 1kHz)
Dimensions: 115 x 105 x 58mm
Weight: 440g

1 Year Warranty
