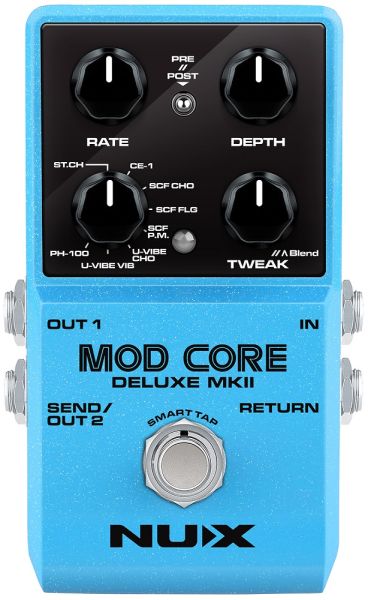

Evolving from the popular Mod Core Deluxe pedal, this mkII version has new effect models, signal routing options and editing features.

A choice of 8 modulation models range from chorus to phasing and vibrato, with Rate and Depth controls and an additional Tweak control to adjust a third parameter specific to each effect and a further Blend adjustment in Alt mode.

Rate can also be adjusted using a Tap Tempo function of the main footswitch.

Mod Core Deluxe mkII has routing options for mono out, stereo out or mono with send/return loop.

When using the loop, there are 3 routing options for pre, parallel and post effect placement.

If you have space for just one mod effect on your board, the Mod Core Deluxe mkII offers a choice of 8 high quality pedals in a single compact stomp box format.

8 distinct modulation effect models
Analog dry signal path for low noise and zero latency
Mono or stereo output
Built-in send-return loop
4 parameter control for effect settings
USB-C for firmware updates

Requires 9V center negative DC Power Supply 100mA current draw (Not Supplied)

Power supply: 9Vdc (power adaptor required)
DC input connection: DC5521 jack (for optional adaptor - pin-negative)
Current consumption: <120mA
Controls: Rate, Depth, Tweak & Mod type
Modes: ST.CH, CE-1, SCF CHO, SCF FLG, SCF PM, U-VIBE CHO, U-VIBE VIB, PH-100
Inputs: Instrument in & Loop return (6.3mm mono jack)
Outputs Out1 & Out2/Loop send (6.3mm mono jack)
Tempo range: 50-200 bpm
Sampling format: 48kHz, 24-bit
Input impedance: 1M ohm
Output impedance: 1k ohm
Dynamic range: 104dB
Dimensions:122 x 72 x 47mm
Weight: 270g

1 Year Warranty
