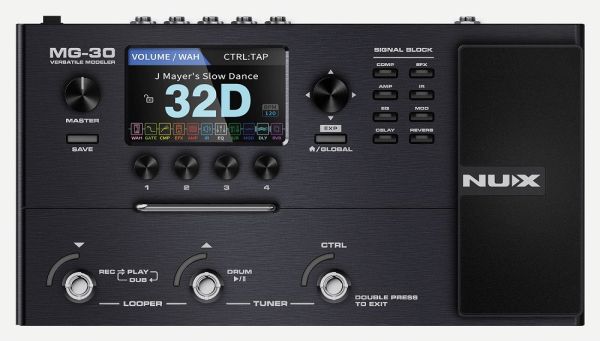

NU-X MG-30 Multi-Effects Modeller Pedal
SKU
334457
£329.00
In stock
NU-X MG-30 Multi-Effects Modeller Pedal
Category: Mixer Accessories
MG-30 is a top flight modelling effect processor from the NU-X range.
Dual high speed processing offers accurate modelling of 30 different amplifier options, including bias tweaking for an extra dimension of response adjustment, all using the proprietary NU-X TSAC-HD algorithm.
Impulse response programming presents a choice of 8 guitar cabinets, 8 bass cabinets, 8 microphones in 3 different axis positions and even 3 acoustic guitar emulation profiles.
Once the main guitar tone is programmed, there are 8 effects blocks which can be assigned to different positions in the signal chain, including WAH, CMP, GATE, EFX, EQ, MOD, DLY & RVB.
An expression pedal covers wah and swell effects among other possibilities. Each has modes and/or parameters which can be adjusted and saved within the patch as needed.
Real-time editing uses rotary encoders and switches, making for a natural and organic process and all parameters and graphics are displayed on a vibrant 4" colour display.
Add to this a fully functioning USB audio interface, phrase looper, PC/Mac editor/librarian/updater, aux input, effects loop, drum machine and NMP-2 foot-switch control and the MG-30 covers practically all bases.
This unit provides all the processing power and audio quality that could be asked from any professional guitar processor at a fraction of the price of its component features.
Dual high speed processing offers accurate modelling of 30 different amplifier options, including bias tweaking for an extra dimension of response adjustment, all using the proprietary NU-X TSAC-HD algorithm.
Impulse response programming presents a choice of 8 guitar cabinets, 8 bass cabinets, 8 microphones in 3 different axis positions and even 3 acoustic guitar emulation profiles.
Once the main guitar tone is programmed, there are 8 effects blocks which can be assigned to different positions in the signal chain, including WAH, CMP, GATE, EFX, EQ, MOD, DLY & RVB.
An expression pedal covers wah and swell effects among other possibilities. Each has modes and/or parameters which can be adjusted and saved within the patch as needed.
Real-time editing uses rotary encoders and switches, making for a natural and organic process and all parameters and graphics are displayed on a vibrant 4" colour display.
Add to this a fully functioning USB audio interface, phrase looper, PC/Mac editor/librarian/updater, aux input, effects loop, drum machine and NMP-2 foot-switch control and the MG-30 covers practically all bases.
This unit provides all the processing power and audio quality that could be asked from any professional guitar processor at a fraction of the price of its component features.
- 4" colour LCD display
- Multi-function rotary & navigation controls
- High definition amplifier models
- Impulse response models for cabinets, microphones and acoustic emulation
- 8 distinct effect blocks with editable signal chain positions
- Built-in USB audio interface, editor/librarian and updater
- Built-in drum machine and phrase looper (up to 60secs)
- Assignable and adjustable expression pedal
- Ultra-low latency from dual NXP RT processors
- NMP-2 footswitch included for remote control
- 9Vdc power adaptor included
- Power supply: 9Vdc, 400mA pin-negative (adaptor included)
- Inputs: 6.3mm jack (guitar), 3.5mm jack (aux input)
- Outputs: 2 x 6.3mm jack (L/mono + R) to amp or mixer
- Sends : returns: 6.3mm jack send (1k ohm) & return (220k ohm)
- Headphone output: 3.5mm stereo jack
- USB port: USB type-C for audio interface, PC/Mac editing & updating
- Remote control connection: EXP1 TRS 6.3mm jack
- Sampling format: 48kHz, 32-bit
- Frequency response: 20Hz - 20kHz (±1dB)
- Input impedance: 1M ohm
- Output impedance: 1k ohm
- Dynamic range: 110dB
- Dimensions: 313 x 166 x 54mm
- Weight: 1.5kg
1 Year Warranty
